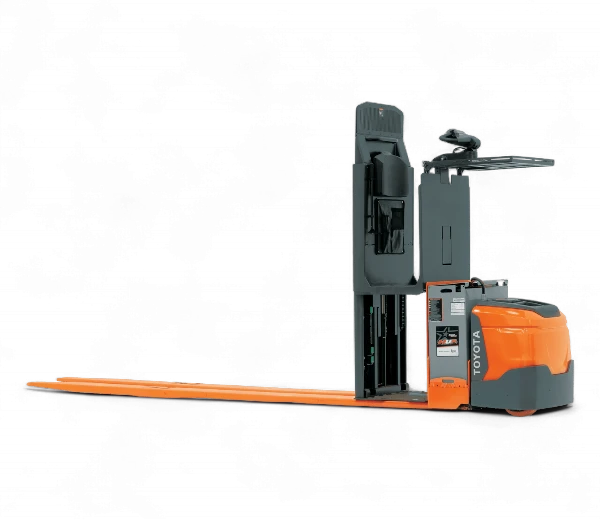

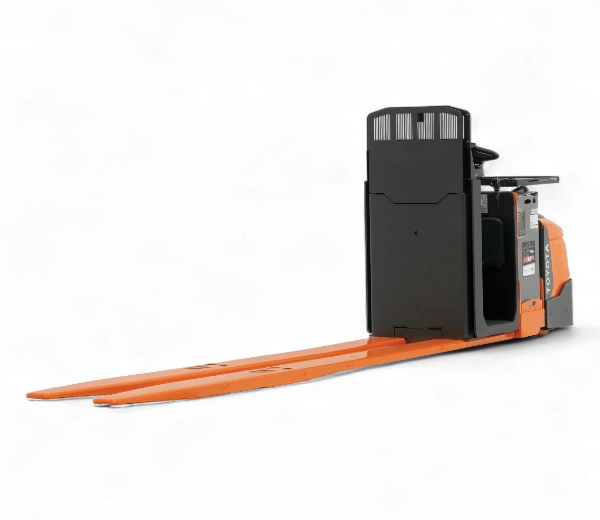

Toyota Low Level Order Picker
Quickly Pick Products in Lower Bin Locations
Order pickers and center-controlled riders excel in both high and low-level picking, but often struggle to keep up with fast-moving items at lower levels. Toyota’s Low Level Order Picker changes the game, allowing you to efficiently access lower bin locations and even second and third-level shelving. Combined with its advanced features, you’ll achieve remarkable efficiency and optimal slotting, elevating your picking operations to new heights.
Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.
Specs
| Model Number | Load Capacity | Width | Lenght | Travel Speed | Operator's Platform Height | Voltage |
|---|---|---|---|---|---|---|
| CR1-LP60 | 6,000 lbs | 34" | 159" | 9 mph | 47" | 24 V |
| CR1-LP80 | 8,000 lbs | 34" | 207" | 9 mph | 47" | 24 V |
| Model Number | Load Capacity |
|---|---|
| CR1-LP60 | 6,000 lbs |
| CR1-LP80 | 8,000 lbs |
| Model Number | Width |
|---|---|
| CR1-LP60 | 34" |
| CR1-LP80 | 34" |
| Model Number | Lenght |
|---|---|
| CR1-LP60 | 159" |
| CR1-LP80 | 207" |
| Model Number | Travel Speed |
|---|---|
| CR1-LP60 | 9 mph |
| CR1-LP80 | 9 mph |
| Model Number | Operator's Platform Height |
|---|---|
| CR1-LP60 | 47" |
| CR1-LP80 | 47" |
| Model Number | Voltage |
|---|---|
| CR1-LP60 | 24 V |
| CR1-LP80 | 24 V |
*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.
Overview
Toyota’s Low Level Order Picker is designed for efficient, low-level picking in warehouses, allowing operators to access items from floor level up to the second and third rack levels. Key features include an elevated operator platform for improved access, the ability to travel while elevated to reduce travel time between picks, and ergonomic controls for operator comfort and productivity.
Performance
- 24 V electrical system
- AC drive motor
- Regenerative plugging
- Electric power steering
- Heavy-duty swivel caster
- Dual lift cylinder
- UL Approved Type E
Ergonomics
- Cushioned knee and operator backrest
- Directional thumb wheels
- Multifunction control handle
- Angled hand grips
- Soft-cushioned floor mat
- Fork height travel interlock
Safety Features
- Heavy-duty bumper guard
- Emergency power disconnect
- Fully lowered alert that notifies operator
- Electric disc brake
- Battery discharge indicator with lift interrupt
Ease of Service
- Large battery compartment
- Hour meter indicator
Options
