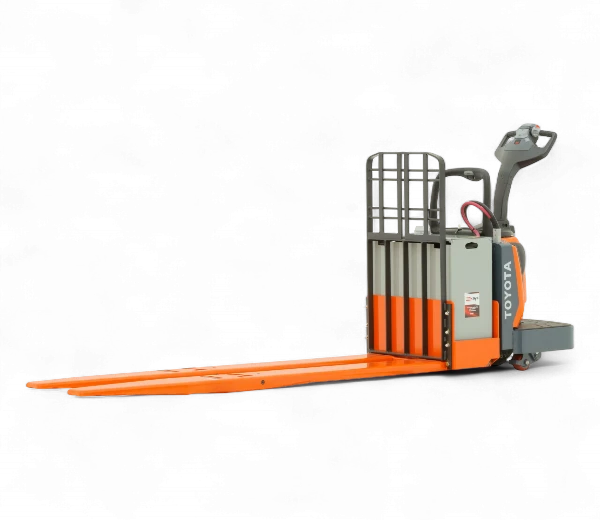

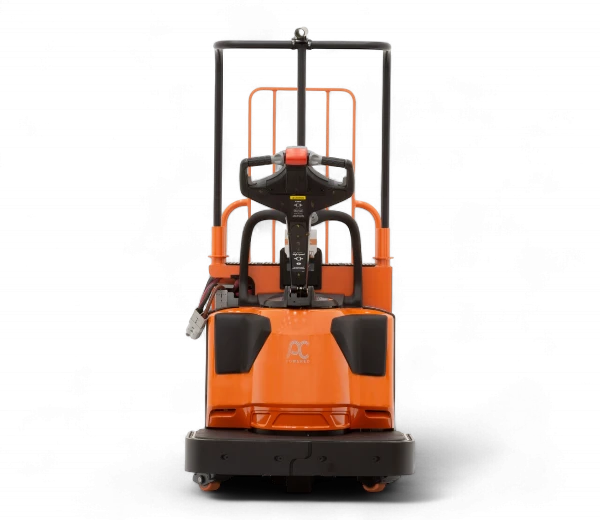

Toyota End-Controlled Rider Pallet Jack
Long Distance Transport & Low-Level Order Picking
The Toyota End-Controlled Rider pallet jack is easy to maneuver and quick to respond to commands. The End-Controlled Rider, ideal for longer runs, makes moving product throughout the warehouse efficient and enjoyable. Doubling as a ground-level order picker, the End-Controlled Rider pallet jack is an asset to any warehouse or distribution center.
Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.
Specs
| Model Number | Load Capacity | Max. Travel Speed Full Load | Max. Gradeability Full Load | Basic Right Angle Stack** |
|---|---|---|---|---|
| 8HBE30 | 6,000 lbs | 6.2 mph | 10% | 85.4" |
| 8HBE40 | 8,000 lbs | 6.2 mph | 10% | 129.3" |
| Model Number | Load Capacity |
|---|---|
| 8HBE30 | 6,000 lbs |
| 8HBE40 | 8,000 lbs |
| Model Number | Max. Travel Speed Full Load |
|---|---|
| 8HBE30 | 6.2 mph |
| 8HBE40 | 6.2 mph |
| Model Number | Max. Gradeability Full Load |
|---|---|
| 8HBE30 | 10% |
| 8HBE40 | 10% |
| Model Number | Basic Right Angle Stack** |
|---|---|
| 8HBE30 | 85.4" |
| 8HBE40 | 129.3" |
*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer representative prior to purchase.
Specifications
LOAD CAPACITY
FULL LOAD TRAVEL SPEED
VOLTAGE
Overview
Toyota’s End-Controlled Rider Pallet Jack offers various solutions for extreme climates, including galvanized options, cold conditioning packages and ergonomic features to accommodate heavy gloves.
Performance
- AC drive system
- 24 V electrical system
- Regenerative braking
- Programmable performance
- CAN bus communications
- Welded construction with reinforced heavy-duty bumper
- Box rail fork construction
Ergonomics
- Multifunction control handle
- Angled hand grips and wrap-around hand guard
- Dual thumb wheels with twist grips for directional control and travel speed
- Intuitively positioned lift/lower
- Soft-cushioned rider platform
- Low platform step height
Safety Features
- Stability hand rail with lift, lower, horn and high-speed functions
- Wrap-around hand guard
- Spring-loaded control handle
- Runaway protection
- Directional reverse switch on control handle
- Electric horn
Ease of Service
- AC drive motor
- Self-adjusting electric disc brake
- One-piece, lightweight service access cover
- Teflon-coated PolyLube™ lift linkage bushings
- Error indicator with self-diagnostics
Options
