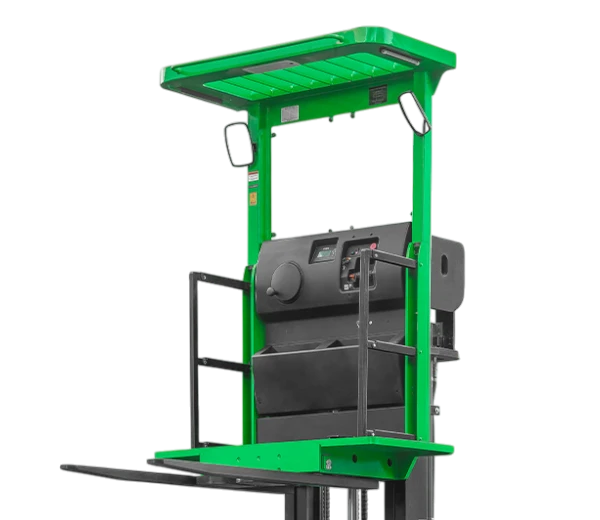

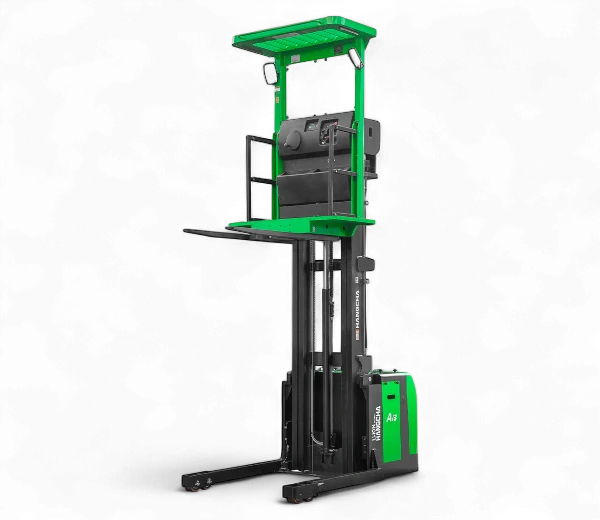

Hangcha A Series Order Picker Lithium Ion Forklift
Picking from Narrow Aisles
The A Series Electric Lithium-ion Three-Wheel High Level Order Picker is designed to meet order fulfillment needs in narrow aisle environments. This order picker has a comprehensive safety protection system, excellent ergonomics, and an advanced control system.
Being reliable, comfortable, safe, and stable, all while providing excellent performance, it is the perfect choice for stock picking in a stereoscopic warehouse of 197”-366” in height.
Specs
| Model Number | Load Capacity | Width | Height | Max Fork Height | Lift Speed | Travel Speed | Voltage |
|---|---|---|---|---|---|---|---|
| OPHT13Li | 3,000 lbs | 42" | 92" | 366" | 69 fpm | 7.5 mph | 36 V |
| Model Number | Load Capacity |
|---|---|
| OPHT13Li | 3,000 lbs |
| Model Number | Width |
|---|---|
| OPHT13Li | 42" |
| Model Number | Height |
|---|---|
| OPHT13Li | 92" |
| Model Number | Max Fork Height |
|---|---|
| OPHT13Li | 366" |
| Model Number | Lift Speed |
|---|---|
| OPHT13Li | 69 fpm |
| Model Number | Travel Speed |
|---|---|
| OPHT13Li | 7.5 mph |
| Model Number | Voltage |
|---|---|
| OPHT13Li | 36 V |
Product specifications may not reflect the most current product details. Authorized Hangcha dealers retain the most current product specifications. All specifications should be verified by an authorized Hangcha dealer prior to purchase.
Overview
The Hangcha A Series Order Picker is a lithium-ion powered electric order picking forklift designed for narrow aisles and high-level fulfillment in warehouses and retail environments. It boasts a comprehensive safety system, ergonomic design for operator comfort, and an advanced control system that contributes to increased reliability, stability, and productivity.
The manual-locking pallet clamp works on a wide range of pallets. It also accommodates pallet stringers ranging from 1″ to 2″, allowing operators to safely handle any pallet.
Performance
- 7.5mph full load travel speed
- Schabmueller AC drive and steering motor
- Fully variable lift and lower speeds
- CURTIS control system
Ergonomics
- Unobstructed view
- Height sensor
- Buffered shifting, lifting, and lowering
- Mode selection and wheel position
- Steering gear with torque feedback
Safety Features
- Full body harness
- Tilt switch sensor
- Left/right guardrails with safety switches
- Speed reduction in corners
- Emergency lowering feature
- Mast chain with chain safety switch
- Protected picker’s wires and cables
Ease of Service
- Brushless AC motor
- Integrated power display, timing, and fault self-diagnosis meter
- Tool-less rear hood
Options
