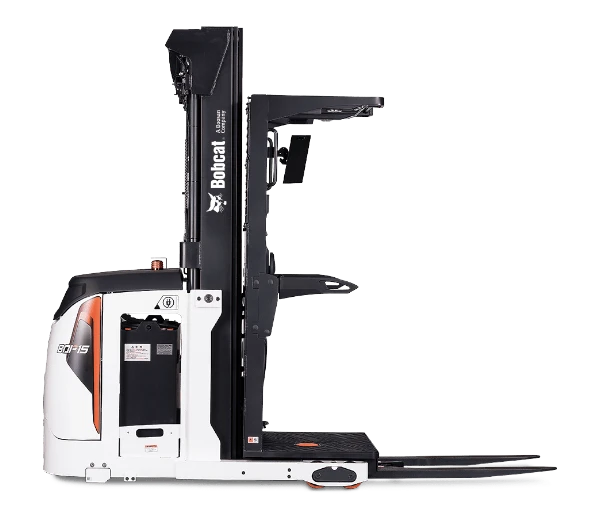

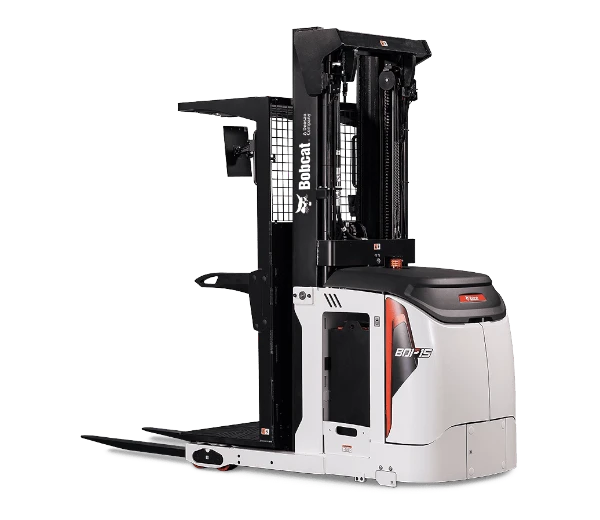

Bobcat 9 Series High Level Order Picker
Small Chassis is Perfect for Narrow Aisles
The Bobcat 9 Series High Level Order Picker combines outstanding performance, durability, and convenience with the highest level of safety features, making your warehouse logistics operation safer and more efficient.
It offers enhanced performance with fast lifting and travel speeds, durability through features like IP43-rated motors and operator comfort with wide steps and an adjustable steering column.
Specs
| Model Number | Load Capacity | Width | Height | Max Fork Height | Lift Speed | Driver Compartment Length |
|---|---|---|---|---|---|---|
| BOP15S-9 | 3,000 lbs | 54" | 95" | 387" | 45 fpm | 28" |
| Model Number | Load Capacity |
|---|---|
| BOP15S-9 | 3,000 lbs |
| Model Number | Width |
|---|---|
| BOP15S-9 | 54" |
| Model Number | Height |
|---|---|
| BOP15S-9 | 95" |
| Model Number | Max Fork Height |
|---|---|
| BOP15S-9 | 387" |
| Model Number | Lift Speed |
|---|---|
| BOP15S-9 | 45 fpm |
| Model Number | Driver Compartment Length |
|---|---|
| BOP15S-9 | 28" |
*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Bobcat dealers retain the most current product specifications. All specifications should be verified by an authorized Bobcat dealer prior to purchase.
Overview
The Bobcat 9 Series Order Picker is an electric, high-level warehouse machine designed for safety, comfort, and productivity. Key features include a stable, unyielding mast with anti-lateral movement, side rollers, and mast pads for precision. Its small chassis size makes it suitable for navigating narrow aisles in a warehouse. With a pre-select height selector with up to 8 settings.
Performance
- Auto directional alignment at start-up
- AC lift/lower control
- Height and descent proximity sensor
- High-stability mast
- Chain tension controls
- AC Curtis controller
- Prestolite motor
- ZF drive unit
- Heavy-duty Stellana drive tire and load wheels
Ergonomics
- Ergonomically-designed control handle
- LED lighting
- High-performance operator fans
- Electric power steering
- Wide-view mast
- Top-tier travel and lift speeds
- Oversized cushioned operator platform
- USB port and power supply
- Dual accessory bars (for scanners, clipboards, cup holders, etc.)
Safety Features
- Electromagnetic parking brake
- Safety side gate with electronic lockout
- Battery side gate with hood cover safety interlock
- Guardian Stability System (GSS)
- Emergency stop button
- Back-up alarm
Ease of Service
- Tool-free service doors
- Easy-view diagnostics
- Latch-mounted hood
- Lift chain tension sensor
- Easy access to drive tire, steering and hydraulic lines
- Dual battery connector
- Extended maintenance intervals
Options
