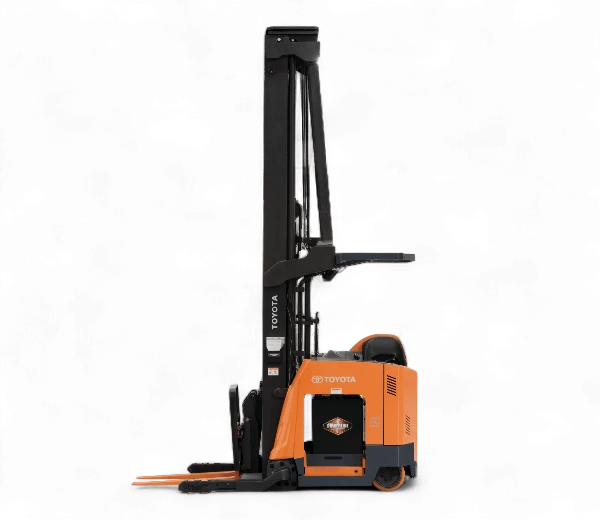

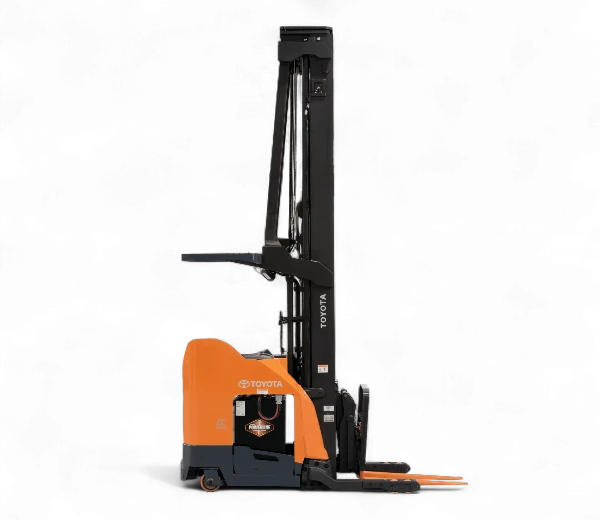

Toyota High-Capacity Reach Truck Forklift
For Tall Tasks and Heavy Orders, You Need a Toyota High-Capacity Reach Truck
Your fast-paced warehouse environment gets a workout day in and day out. When it comes to moving and storing products, the last thing you need is limitations.
Keeping up with evolving throughput and storage density demands while managing fluctuating inventory counts presents challenges for warehouse managers and operators. Toyota’s High-Capacity Reach Truck Series gives you the control you need to manage these fluctuations, enabling you to reach higher, work smarter, and be comfortably productive regardless of the assignment.
Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.
Specs
| Model Number | Load Capacity | Width | Height | Max. Fork Height | Max. Travel Speed | Reach Stroke |
|---|---|---|---|---|---|---|
| RF1-HC2X32 | 3,200 lbs | 48 – 63" | 230" | 542" | 7.5 mph | 42" |
| RF1-HC1X45 | 4,500 lbs | 48 – 63" | 230" | 542" | 7.5 mph | 23" |
| RF1-HC2Z32 | 3,200 lbs | 48 – 63" | 230" | 542" | 7.5 mph | 42" |
| RF1-HC1Z45 | 4,500 lbs | 48 – 63" | 230" | 542" | 7.5 mph | 23" |
| Model Number | Load Capacity |
|---|---|
| RF1-HC2X32 | 3,200 lbs |
| RF1-HC1X45 | 4,500 lbs |
| RF1-HC2Z32 | 3,200 lbs |
| RF1-HC1Z45 | 4,500 lbs |
| Model Number | Width |
|---|---|
| RF1-HC2X32 | 48 – 63" |
| RF1-HC1X45 | 48 – 63" |
| RF1-HC2Z32 | 48 – 63" |
| RF1-HC1Z45 | 48 – 63" |
| Model Number | Height |
|---|---|
| RF1-HC2X32 | 230" |
| RF1-HC1X45 | 230" |
| RF1-HC2Z32 | 230" |
| RF1-HC1Z45 | 230" |
| Model Number | Max. Fork Height |
|---|---|
| RF1-HC2X32 | 542" |
| RF1-HC1X45 | 542" |
| RF1-HC2Z32 | 542" |
| RF1-HC1Z45 | 542" |
| Model Number | Max. Travel Speed |
|---|---|
| RF1-HC2X32 | 7.5 mph |
| RF1-HC1X45 | 7.5 mph |
| RF1-HC2Z32 | 7.5 mph |
| RF1-HC1Z45 | 7.5 mph |
| Model Number | Reach Stroke |
|---|---|
| RF1-HC2X32 | 42" |
| RF1-HC1X45 | 23" |
| RF1-HC2Z32 | 42" |
| RF1-HC1Z45 | 23" |
* Based on 24″ load center
** Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.
Specifications
LOAD CAPACITY
TRAVEL SPEED FULL LOAD
VOLTAGE
Overview
Toyota’s High-Capacity Reach Truck is an electric-powered forklift designed for high-density warehouses, offering high lift heights and load capacities to boost productivity. Key features include rigid mast construction for stability, excellent visibility with open-view masts, and versatile operator stance options.
Ideal for high stacking, narrow aisle navigation, and optimizing storage density.
Performance
- 36 V
- UL “E” Construction
- AC-powered drive system with torque control
- AC hydraulic system
- High-speed lift and lowering with regenerative lowering
- Electric power steering motor
- 7” color touchscreen display panel
- 2-speed reach & retract
- Current-controlled proportional valve
- Lowering-flow limiter
- Lift system relief valve
Ergonomics
- 180° electronic power steering
- Comfort-padded lean points
- Multi-function control handle
- Auto-position hold
- Sidestance model with flip-down seat
- Open-view 3-stage mast (FSW)
- Hydraulically-cushioned mast staging, and reach/retract system
- Electric disc brake
- Ventilated tractor compartment
- Door-mounted cooling fan
- 36″ tilting load backrest extension (3°fwd/4.5°bwd)
- Anti-static ground strap
- View-through carriage
Safety Features
- Low step height
- High visibility overhead guard
- Safety glass mast guard
- Flip-down seat
- Adjustable height steer tiller
- Emergency power disconnect switch
- Electric horn
- Lift slowdown at max lift
Ease of Service
- Battery compartment rollers
- Adjustable battery retaining gates
- Self diagnostics
- Built-in analyzer
- Self-adjusting electric disc brake
- Key switch
- Battery discharge indicator with lift interrupt
- SB350 gray connector
- Bolt-on, ductile iron base legs
- Enclosed battery compartment
Options
