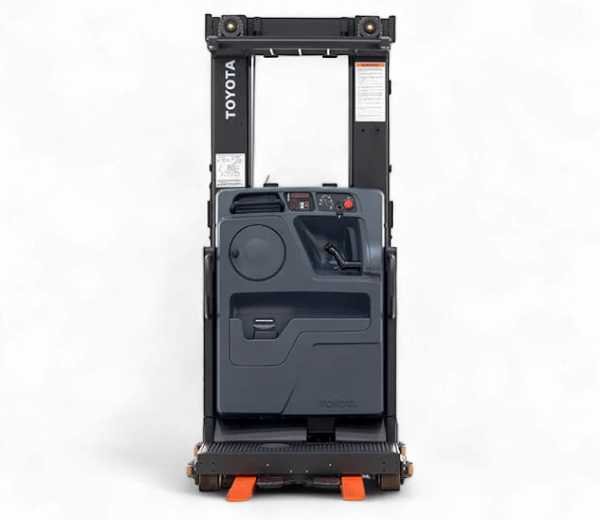

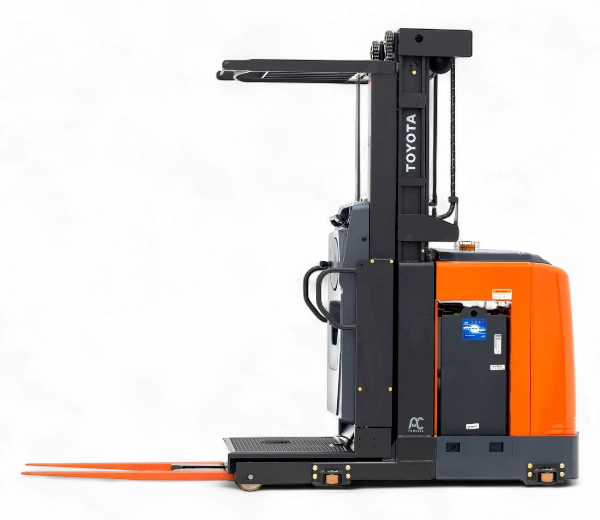

Toyota Order Picker Forklift
Solves the Most Challenging High-Reaching Warehouse Needs
The Toyota Order Picker has lift heights to 390″ and cushioned mast staging, which helps operators comfortably reach your tallest racks for order picking. This forklift easily maneuvers through narrow aisles in warehouses, minimizing rack impact during case picking, thanks to optional wire and double-rail guidance systems.
You’ll drive to optimal efficiency with optional Lift Logic technology that continuously monitors lift height, allowing for optimized travel speed at various lift heights while still maintaining safe operation.
Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.
Specs
| Model Number | Load Capacity | Max. Travel Speed Full Load | Max. Lift Speed Full Load | Voltage |
|---|---|---|---|---|
| 8BPUE15 | 3,000 lbs | 6.5 mph | 33 fpm | 24 V |
| 8BPU15 | 3,000 lbs | 6.5 mph | 57 fpm | 24 V |
| 8BPUH15 | 3,000 lbs | 6.5 mph | 80 fpm | 36 V |
| Model Number | Load Capacity |
|---|---|
| 8BPUE15 | 3,000 lbs |
| 8BPU15 | 3,000 lbs |
| 8BPUH15 | 3,000 lbs |
| Model Number | Max. Travel Speed Full Load |
|---|---|
| 8BPUE15 | 6.5 mph |
| 8BPU15 | 6.5 mph |
| 8BPUH15 | 6.5 mph |
| Model Number | Max. Lift Speed Full Load |
|---|---|
| 8BPUE15 | 33 fpm |
| 8BPU15 | 57 fpm |
| 8BPUH15 | 80 fpm |
| Model Number | Voltage |
|---|---|
| 8BPUE15 | 24 V |
| 8BPU15 | 24 V |
| 8BPUH15 | 36 V |
* Based on 24″ load center. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer representative prior to purchase.
Specifications
LOAD CAPACITY
FULL LOAD TRAVEL SPEED
TIRE TYPE
Overview
The Toyota Order Picker delivers advanced technologies and productivity-boosting features, making it a champion in any warehouse environment. These electric-powered vehicles are designed to improve efficiency in warehouse and retail environments by allowing operators to pick individual items from racks.
Performance
- AC drive and lift motors on most models
- Fully variable lift/lower controls
- Regenerative braking
- Hydraulic mast lowering deceleration
- Automatic return to center drive tire at startup
Ergonomics
- Cushioned mast staging
- Bubble cushioned floor mat
- Anti-rattle mast
- Spring platform suspension system
Safety Features
- Full body harness and energy-absorbing tether
- Electronic disc brake
- Wire mesh mast guard
Ease of Service
- 4 function hour meter
- No tools, high-impact service access covers
- On-board diagnostics
- Battery compartment rollers
- Emergency manual lowering valve
Options
