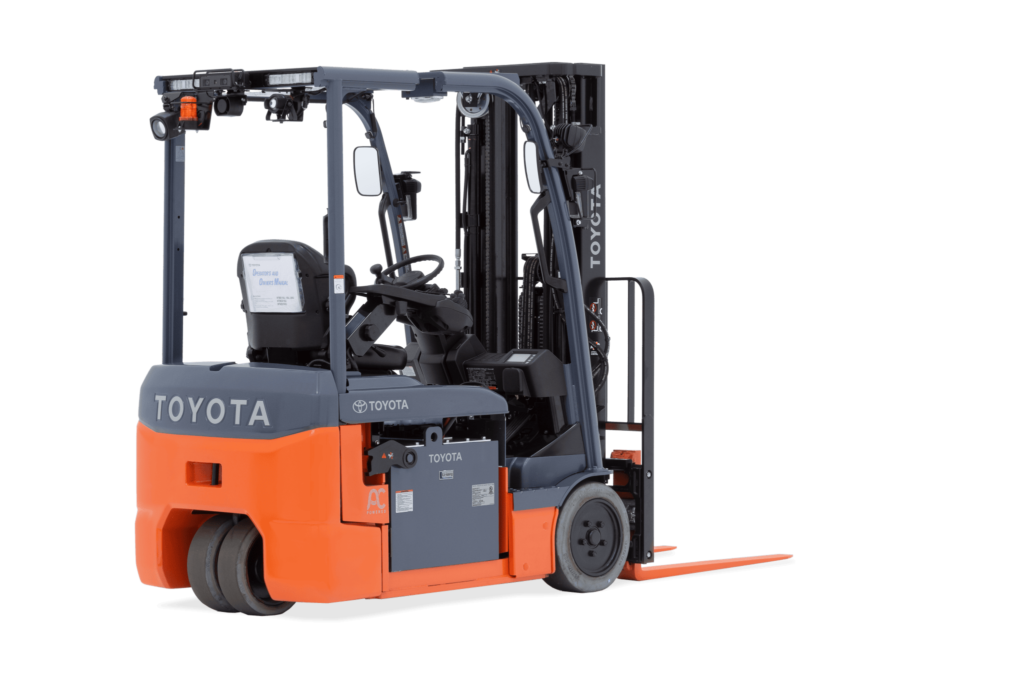

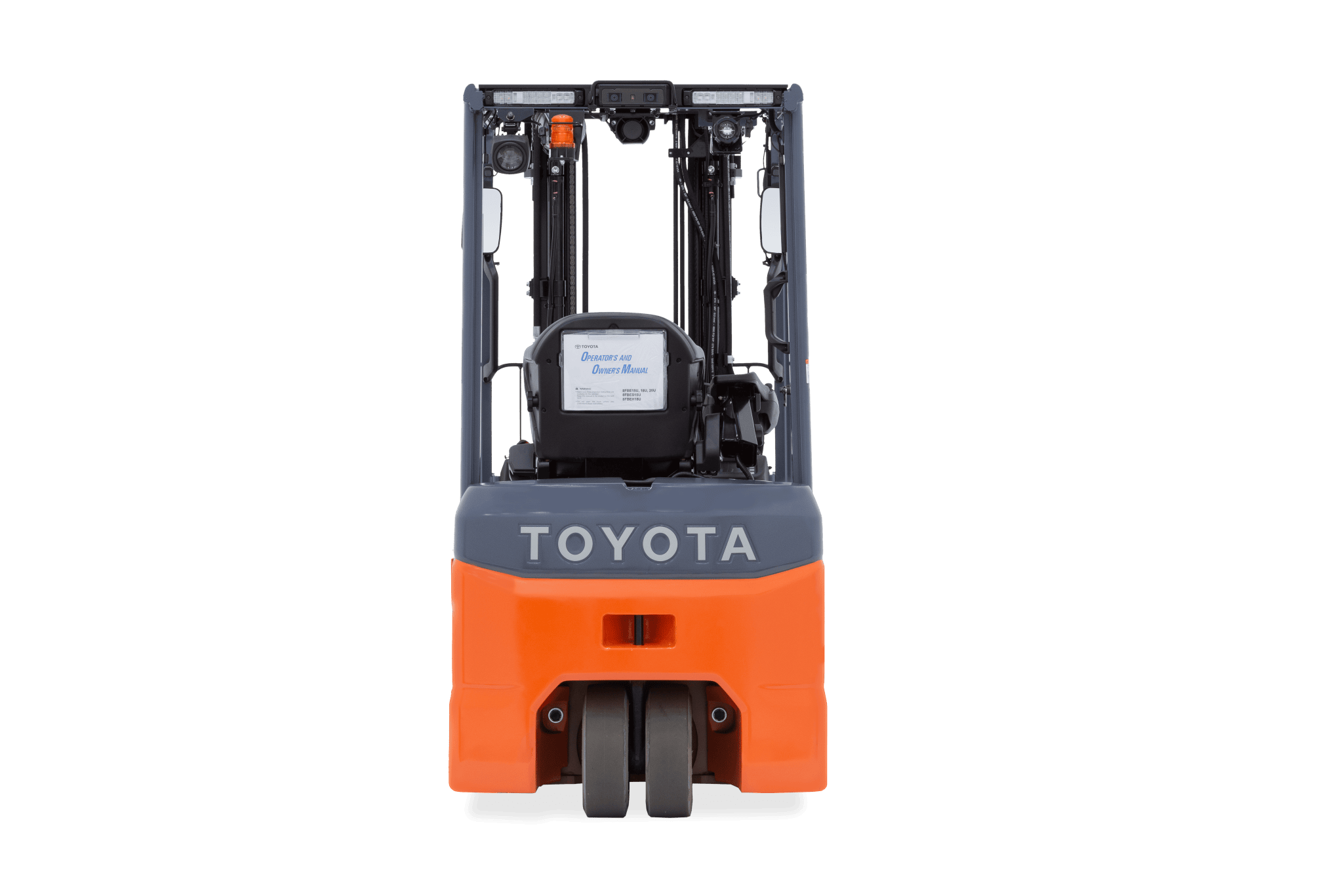

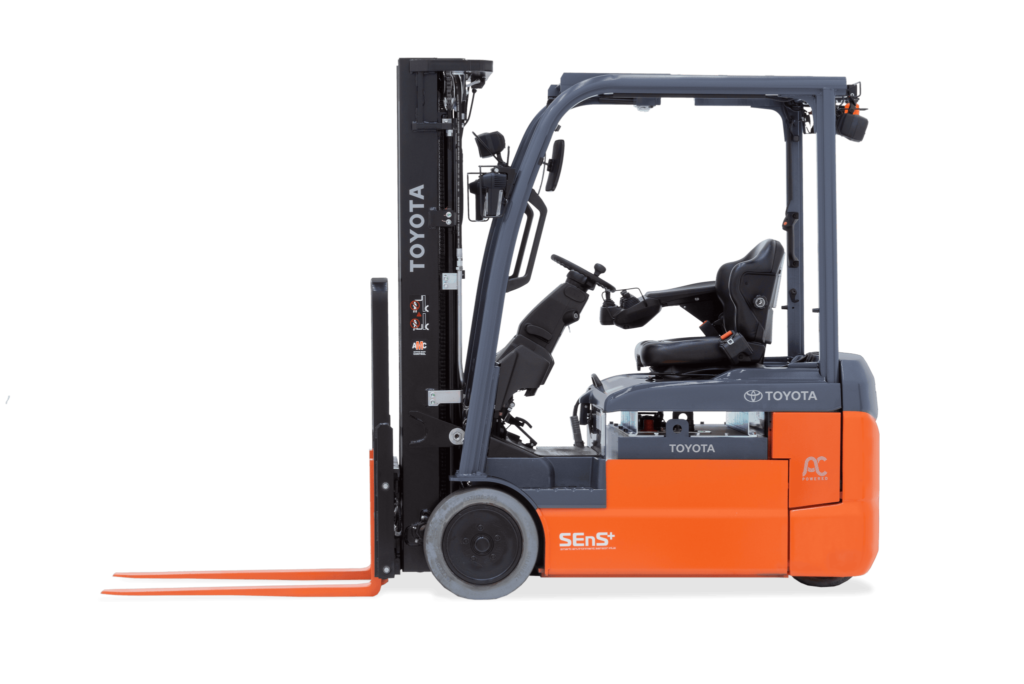

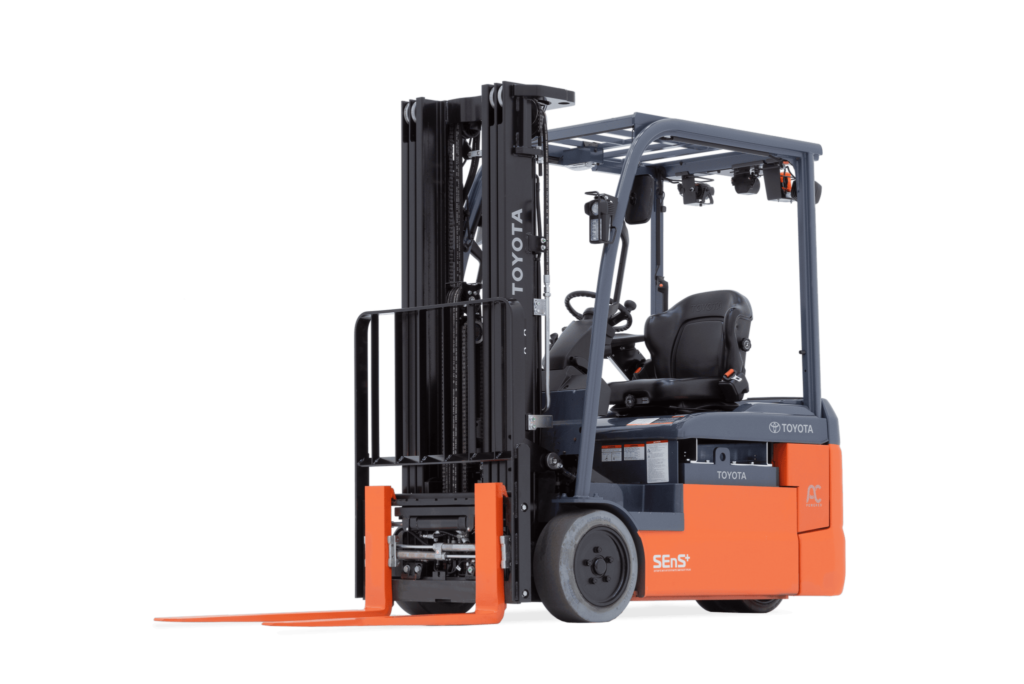

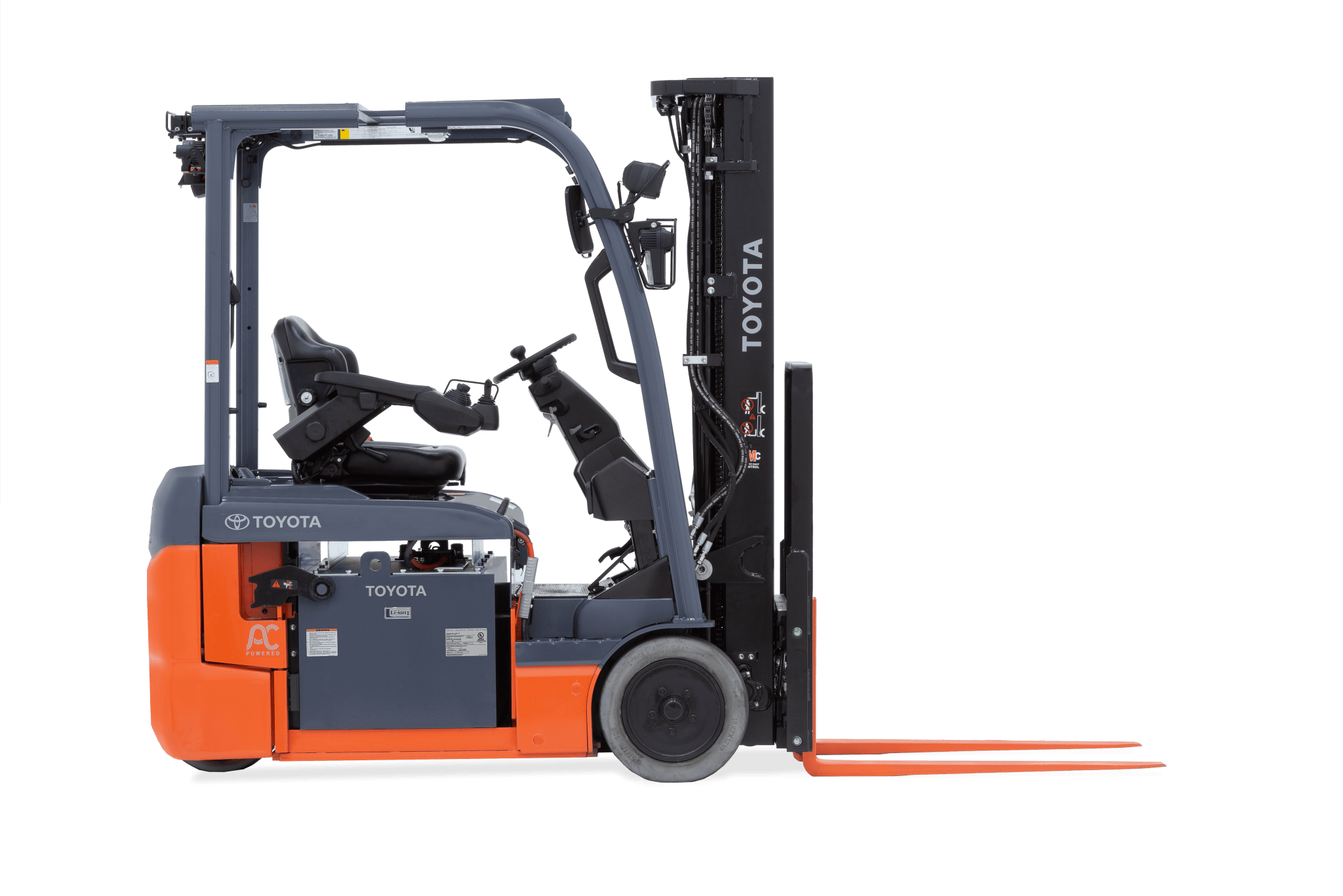

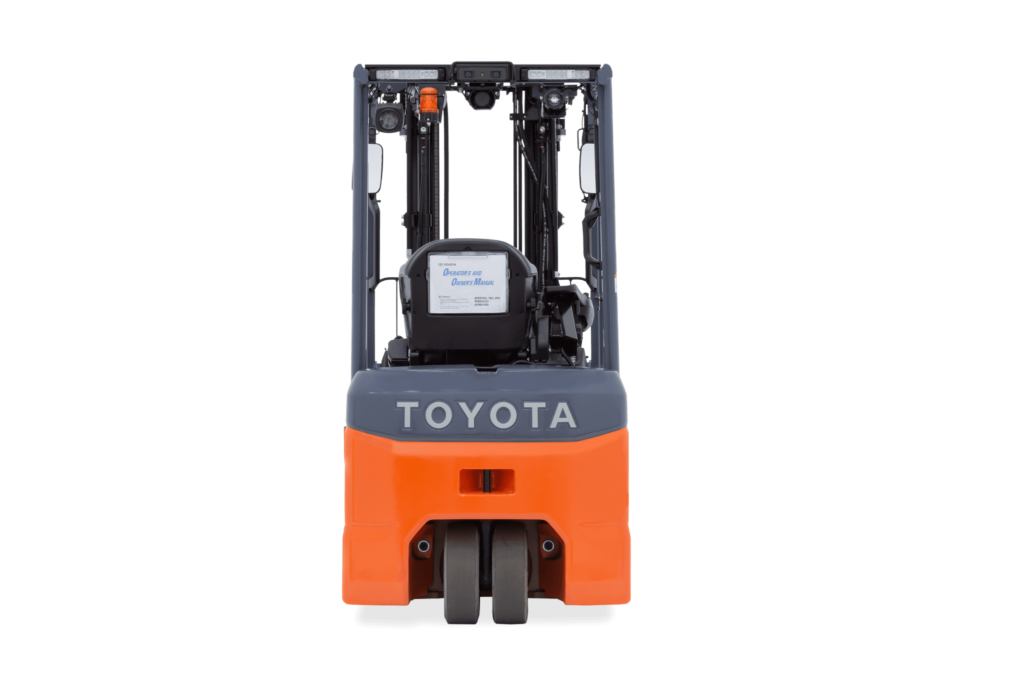

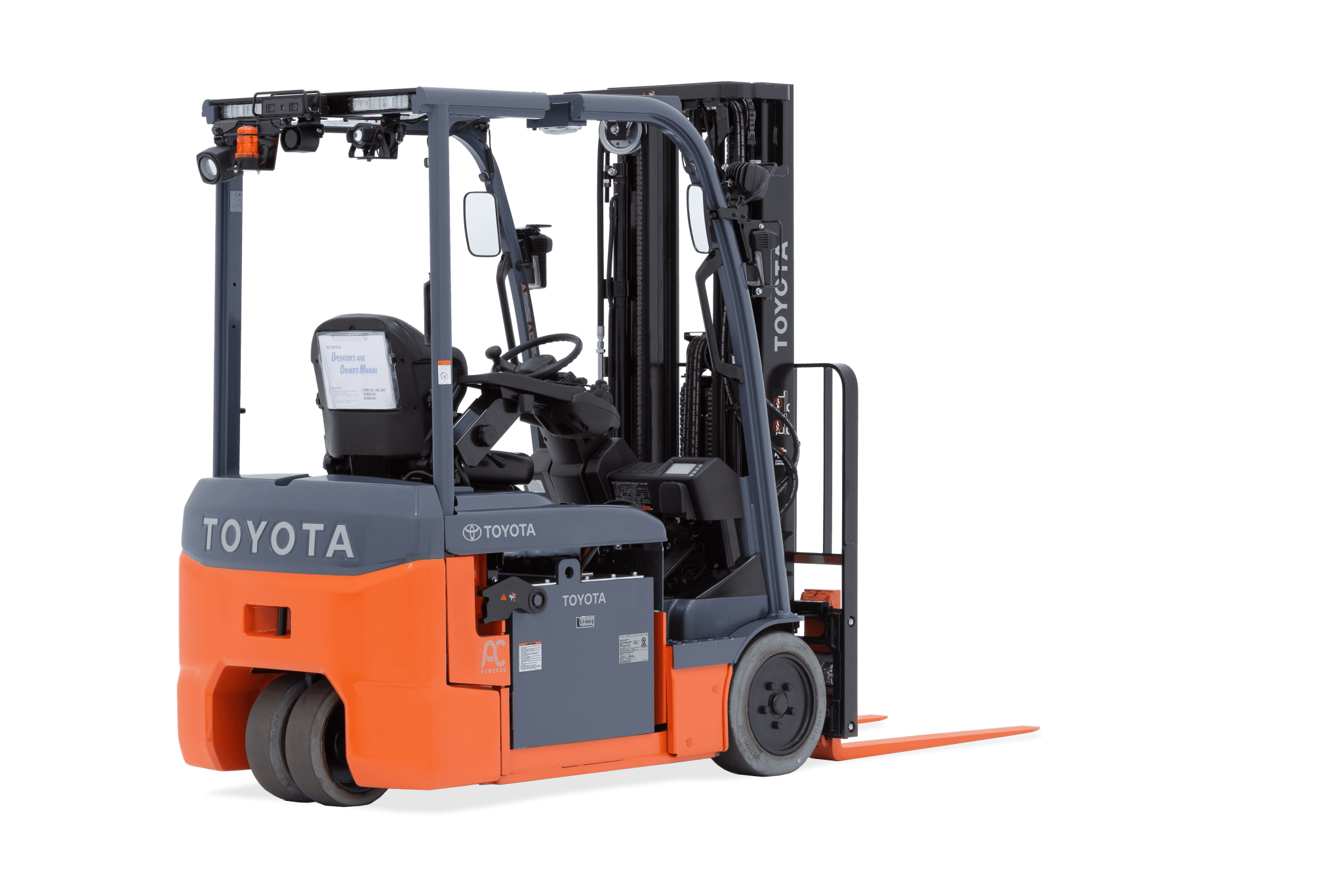

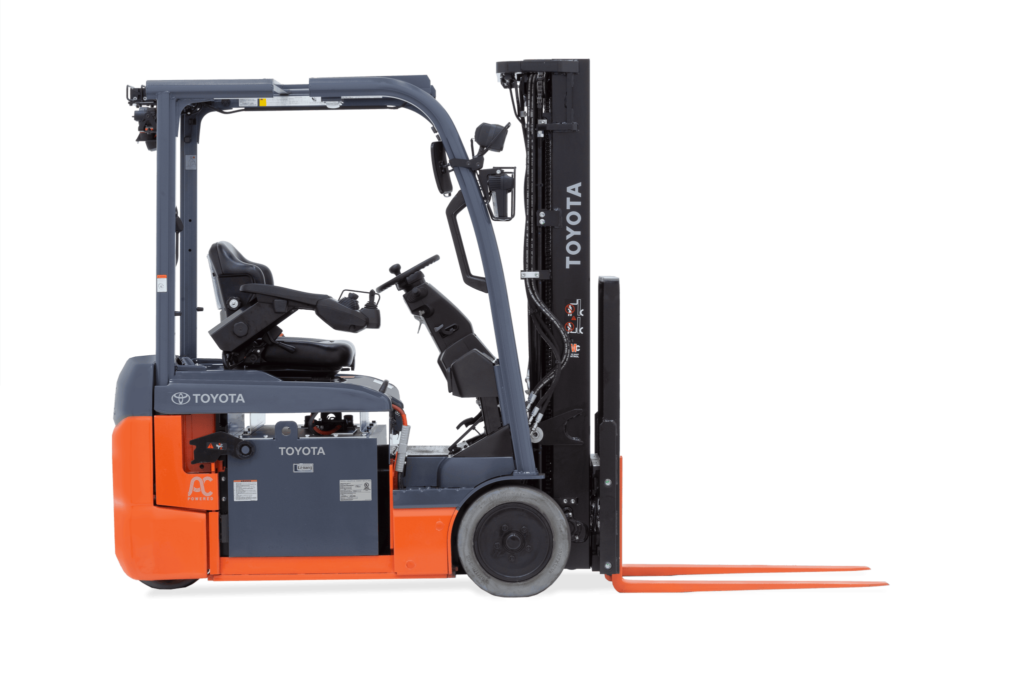

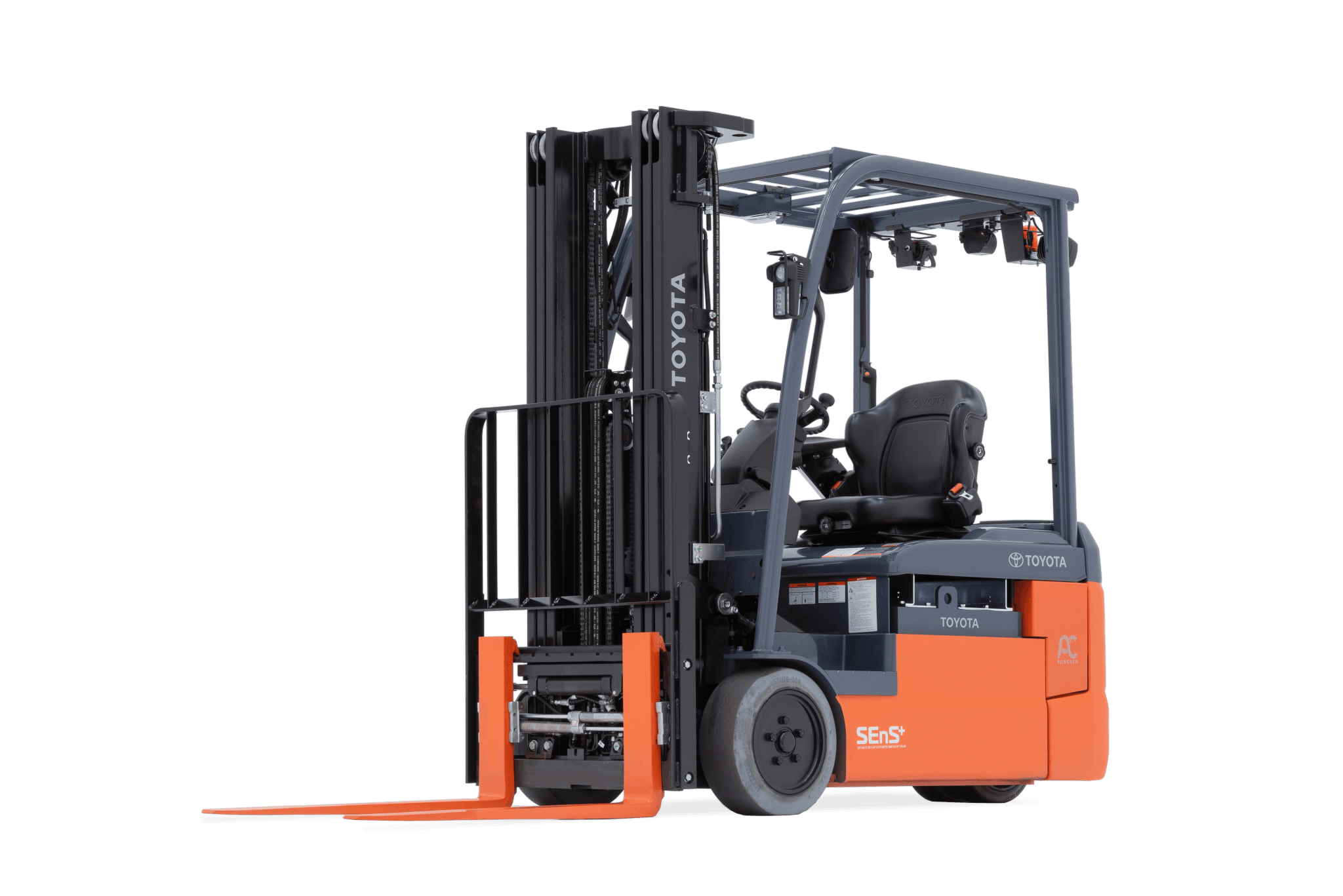

Toyota 3-Wheel Electric Forklift
Award Winning
The Toyota 3-Wheel Electric Forklift is a multi-use forklift that leads the material handling industry in run-time, travel speeds, and lift/lowering speeds. Available in a “short” model, the ergonomically pleasing, easy-to-maintain 3-Wheel Electric Forklift is an asset to any application, including narrow aisles and tight spaces.
Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.
Specs
| Model Number | Load Capacity | Max Full Load Travel Speed | Max Full Load Lift Speed | Max Full Load Gradeability | Basic Right Angle Stack** |
|---|---|---|---|---|---|
| 8FBE15U | 3,000 lbs | 36 V: 9.9 mph / 48 V: 10.2 mph | 36 V: 77 fpm / 48 V: 94 fpm | 27% | 72.1" |
| 8FBES15U | 3,000 lbs | 36 V: 9.9 mph / 48 V: 10.2 mph | 36 V: 77 fpm / 48 V: 94 fpm | 25% | 68.9" |
| 8FBE18U | 3,500 lbs | 36 V: 9.9 mph / 48 V: 10.2 mph | 36 V: 71 fpm / 48 V: 89 fpm | 24% | 74.2" |
| 8FBEH18U | 3,500 lbs | 36 V: 9.9 mph / 48 V: 10.2 mph | 36 V: 71 fpm / 48 V: 89 fpm | 24% | 76.6" |
| 8FBE20U | 4,000 lbs | 36 V: 9.7 mph / 48 V: 9.9 mph | 36 V: 67 fpm / 48 V: 83 fpm | 22% | 77.2" |
| Model Number | Load Capacity |
|---|---|
| 8FBE15U | 3,000 lbs |
| 8FBES15U | 3,000 lbs |
| 8FBE18U | 3,500 lbs |
| 8FBEH18U | 3,500 lbs |
| 8FBE20U | 4,000 lbs |
| Model Number | Max Full Load Travel Speed |
|---|---|
| 8FBE15U | 36 V: 9.9 mph / 48 V: 10.2 mph |
| 8FBES15U | 36 V: 9.9 mph / 48 V: 10.2 mph |
| 8FBE18U | 36 V: 9.9 mph / 48 V: 10.2 mph |
| 8FBEH18U | 36 V: 9.9 mph / 48 V: 10.2 mph |
| 8FBE20U | 36 V: 9.7 mph / 48 V: 9.9 mph |
| Model Number | Max Full Load Lift Speed |
|---|---|
| 8FBE15U | 36 V: 77 fpm / 48 V: 94 fpm |
| 8FBES15U | 36 V: 77 fpm / 48 V: 94 fpm |
| 8FBE18U | 36 V: 71 fpm / 48 V: 89 fpm |
| 8FBEH18U | 36 V: 71 fpm / 48 V: 89 fpm |
| 8FBE20U | 36 V: 67 fpm / 48 V: 83 fpm |
| Model Number | Max Full Load Gradeability |
|---|---|
| 8FBE15U | 27% |
| 8FBES15U | 25% |
| 8FBE18U | 24% |
| 8FBEH18U | 24% |
| 8FBE20U | 22% |
| Model Number | Basic Right Angle Stack** |
|---|---|
| 8FBE15U | 72.1" |
| 8FBES15U | 68.9" |
| 8FBE18U | 74.2" |
| 8FBEH18U | 76.6" |
| 8FBE20U | 77.2" |
*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer representative prior to purchase.
Specifications
LOAD CAPACITY
FULL LOAD TRAVEL SPEED
VOLTAGE
Overview
Designed for durability, Toyota’s 3-Wheel Electric Forklifts offer easy access to components and are powered by maintenance-free AC motors. Typical applications include general warehousing and storage, manufacturing, food preparation and grocery operations, and applications requiring precise maneuvering in tight spaces.
Performance
- 36 / 48 V electrical system
- AC drive and lift system
- Digital multifunction display
- UL Approved Type E
- Built-in analyzer
- Self-diagnostics
- Punched plate entry/exit step
Ergonomics
- Strategically configured instrument display
- On-demand, hydrostatic power steering
- Cowl-mounted hydraulic controls
- Memory tilt steering column
- Heavy-duty non-slip floor mat
- Integrated switch for headlight and turn signal
- Operator Restraint System (ORS) with full-suspension seat
Safety Features
- Operator Presence Sensing System (OPSS)
- Active Mast Control (AMC)
- Load and height sensing turn speed control
- Wet disc brakes
- Bolt-on overhead guard
- Forward tilt lift speed limitation
Ease of Service
- Maintenance-free AC motor
- Battery compartment hood assist dampers
- Easy access no-tools floorboard
- Programmable maintenance timer
- Easy access controllers
- Thermal protection monitor
