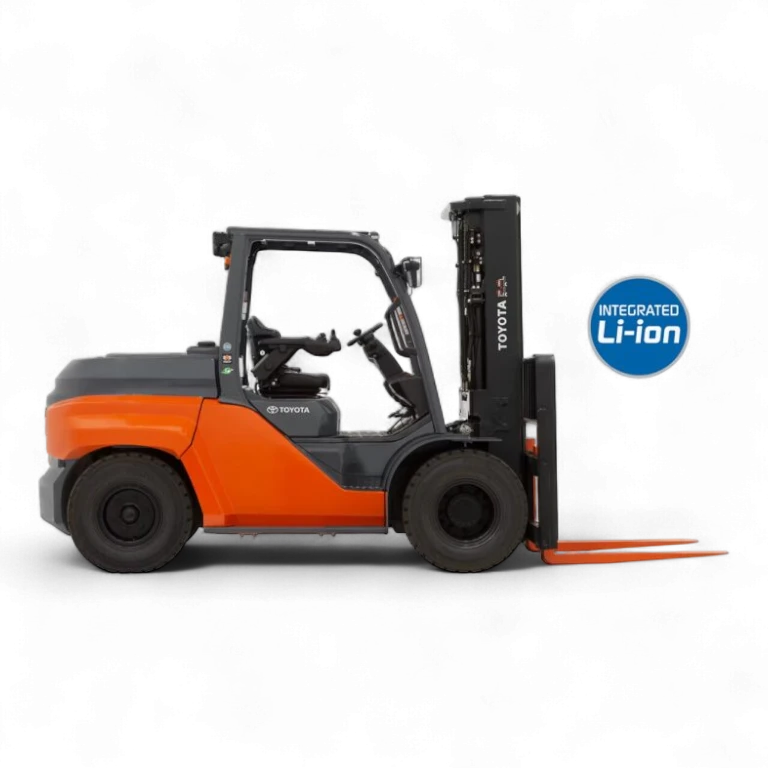

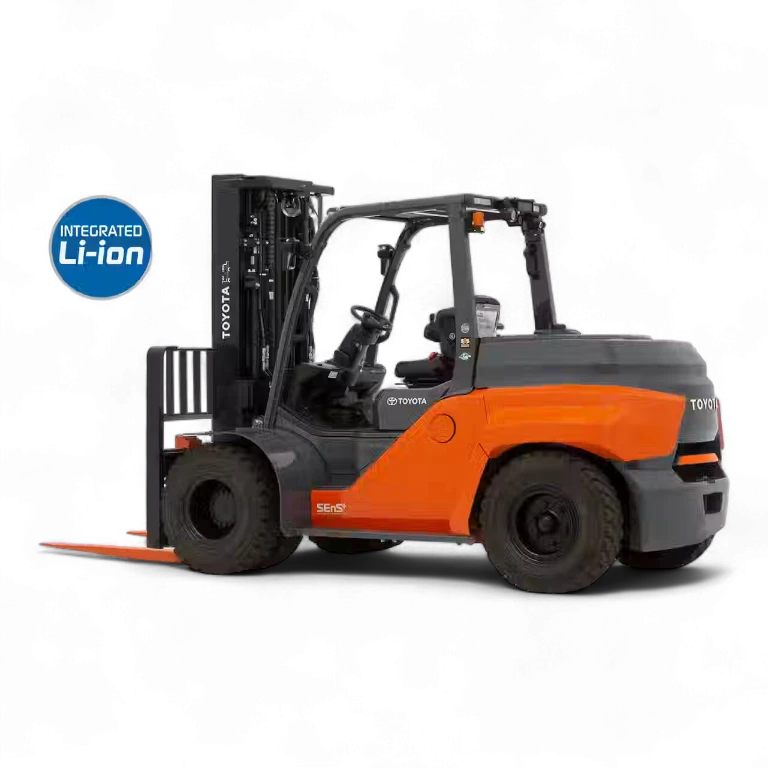

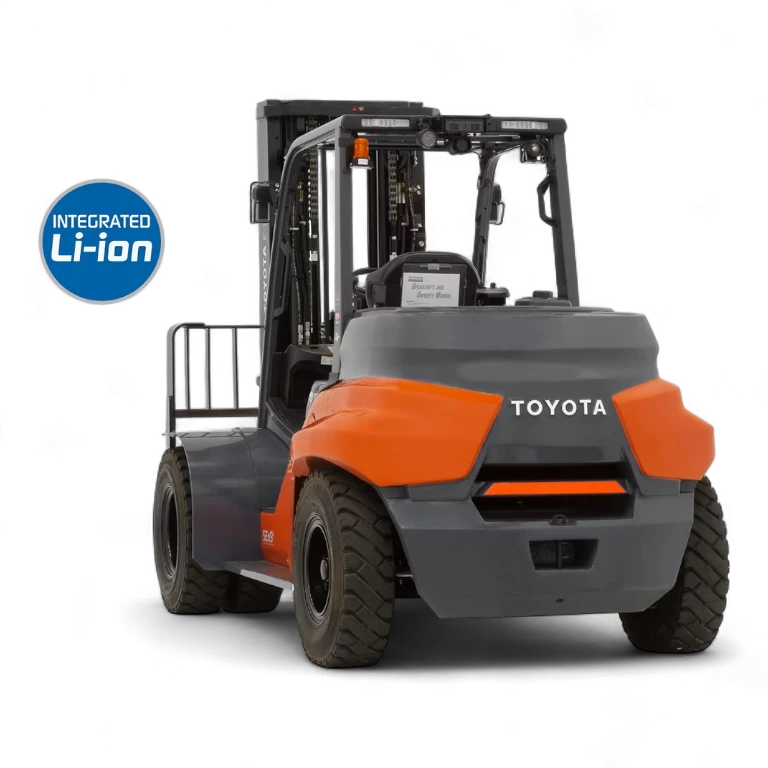

Toyota Integrated Large Electric Pneumatic Forklift
When you need to Boost Productivity, rely on the Integrated Large Electric Pneumatic
Toyota’s Integrated Large Electric Pneumatic Forklift is the reliable and durable solution you need to handle all of your material handling tasks. This forklift packs the power you’d expect from an internal combustion forklift, but it’s all electric.
Equipped with a proprietary, custom-designed lithium-ion battery, this forklift is built with the power your operation needs to take your business to the next level. The Integrated Large Electric Pneumatic was designed to excel in applications such as lumber yards, construction sites, and heavy-duty manufacturing facilities.
Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.
Specs
| Model Number | Load Capacity | Max Fork Height | Overall Width | Turning Radius Outside | Max Full Load Travel Speed | Max. Lifting Speed | Basic Right Angle Stack |
|---|---|---|---|---|---|---|---|
| 9FBZ60U | 13,500 lbs | 120.5" | 78.7" | 128.1" | 11.6 mph | 12.4 fpm | 150.9" |
| 9FBZ70U | 15,500 lbs | 120.5" | 78.7" | 129.8" | 11.6 mph | 12.4 fpm | 152.9" |
| 9FBZ70U | 17,500 lbs | 121" | 78.7" | 131.3" | 11.3 mph | 12.4 fpm | 154.6" |
| Model Number | Load Capacity |
|---|---|
| 9FBZ60U | 13,500 lbs |
| 9FBZ70U | 15,500 lbs |
| 9FBZ70U | 17,500 lbs |
| Model Number | Max Fork Height |
|---|---|
| 9FBZ60U | 120.5" |
| 9FBZ70U | 120.5" |
| 9FBZ70U | 121" |
| Model Number | Overall Width |
|---|---|
| 9FBZ60U | 78.7" |
| 9FBZ70U | 78.7" |
| 9FBZ70U | 78.7" |
| Model Number | Turning Radius Outside |
|---|---|
| 9FBZ60U | 128.1" |
| 9FBZ70U | 129.8" |
| 9FBZ70U | 131.3" |
| Model Number | Max Full Load Travel Speed |
|---|---|
| 9FBZ60U | 11.6 mph |
| 9FBZ70U | 11.6 mph |
| 9FBZ70U | 11.3 mph |
| Model Number | Max. Lifting Speed |
|---|---|
| 9FBZ60U | 12.4 fpm |
| 9FBZ70U | 12.4 fpm |
| 9FBZ70U | 12.4 fpm |
| Model Number | Basic Right Angle Stack |
|---|---|
| 9FBZ60U | 150.9" |
| 9FBZ70U | 152.9" |
| 9FBZ70U | 154.6" |
*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.
Specifications
LOAD CAPACITY
TURNING RADIUS OUTSIDE
MAXIMUM TRAVEL SPEED
Overview
Toyota’s Integrated Electric Forklifts not only come equipped with power, but they’re also designed with the same mindfulness as our other electric products. Operators will appreciate the reduced vibration and noise levels provided by the floating cab design, which can further reduce back stress and fatigue. Additionally, this forklift comes equipped with a proprietary, custom-designed lithium-ion battery, delivering maximum productivity shift after shift.
You can also feel secure knowing that these lifts are built with patented features, such as the System of Active Stability (SAS), which engages additional safety features during operation. These lifts also come with an optional SEnS+ Smart Environment Sensor Plus, a highly innovative technology that assists operators in identifying pedestrians or objects during a shift.
Performance
- Integrated Lithium-Ion battery
- 90 V electrical system
- AC drive system
- AC lift system
- AC steering
- Electronic hydraulic controls
- Programmable hydraulics
- UL Approved Type E
- Energy regeneration: coast control, plug braking, foot braking
Ergonomics
- Strategically configured instrument display
- On-demand hydrostatic power steering
- Dual operator assist grips
- 11.8″ diameter two-spoke steering wheel
- Cowl-mounted hydraulic controls
- Heavy-duty non-slip floor mat
- Electric directional shift control
Safety Features
- System of Active Stability (SAS)
- Operator Presence Sensing System (OPSS)
- Bolt-on overhead guard
- Key lowering interlock
- Foot activated parking break
- Manual return to neutral
Ease of Service
- AC drive motor
- Easy access hydraulic motor
- Easy access, no tools floorboard
- Battery compartment hood assist
- Planned maintenance indicator
- Easy access controllers
