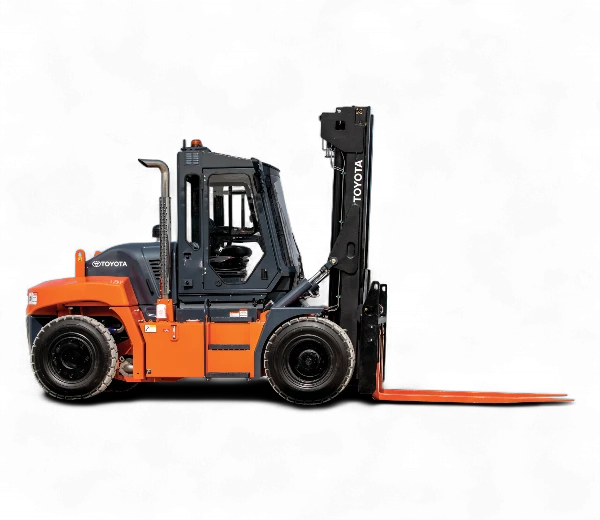

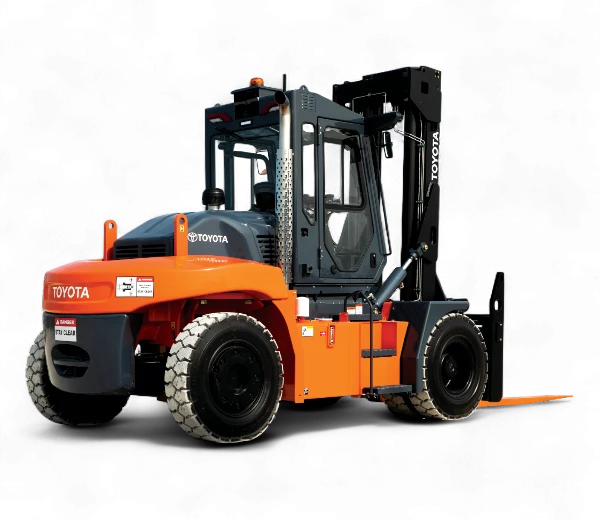

Toyota High Capacity Core IC Outdoor Forklift
Heavy-Duty Material Handling for High Capacity Applications
Toyota’s High Capacity Core IC Pneumatic delivers the power and versatility you need to meet heavy-duty material handling challenges in any high-capacity operation. With a standard load capacity of up to 30,000 pounds, it’s ideal for lumber, steel, and automotive applications and can help you move almost anything. Top it off with the durability of a rugged drive axle and Dana transmission, and you’re ready to get the job done.
Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.
Specs
| Model Number | Load Capacity | Width | Height | Max Fork Height | Max Travel Speed | Tilt Range | Fuel |
|---|---|---|---|---|---|---|---|
| 2THD220-24 | 22,000 lbs | 98" | 128" | 138" | 17.9 mph | 15 fwd /12 bckwd | DIESEL |
| 2THD240-24 | 24,000 lbs | 98" | 128" | 138" | 17.9 mph | 15 fwd /12 bckwd | DIESEL |
| 2THD260-24 | 26,000 lbs | 98" | 128" | 138" | 17.9 mph | 15 fwd /12 bckwd | DIESEL |
| 2THD280-24 | 28,000 lbs | 98" | 128" | 138" | 17.9 mph | 15 fwd /12 bckwd | DIESEL |
| 2THD300-24 | 30,000 lbs | 98" | 128" | 138" | 17.9 mph | 15 fwd /12 bckwd | DIESEL |
| Model Number | Load Capacity |
|---|---|
| 2THD220-24 | 22,000 lbs |
| 2THD240-24 | 24,000 lbs |
| 2THD260-24 | 26,000 lbs |
| 2THD280-24 | 28,000 lbs |
| 2THD300-24 | 30,000 lbs |
| Model Number | Width |
|---|---|
| 2THD220-24 | 98" |
| 2THD240-24 | 98" |
| 2THD260-24 | 98" |
| 2THD280-24 | 98" |
| 2THD300-24 | 98" |
| Model Number | Height |
|---|---|
| 2THD220-24 | 128" |
| 2THD240-24 | 128" |
| 2THD260-24 | 128" |
| 2THD280-24 | 128" |
| 2THD300-24 | 128" |
| Model Number | Max Fork Height |
|---|---|
| 2THD220-24 | 138" |
| 2THD240-24 | 138" |
| 2THD260-24 | 138" |
| 2THD280-24 | 138" |
| 2THD300-24 | 138" |
| Model Number | Max Travel Speed |
|---|---|
| 2THD220-24 | 17.9 mph |
| 2THD240-24 | 17.9 mph |
| 2THD260-24 | 17.9 mph |
| 2THD280-24 | 17.9 mph |
| 2THD300-24 | 17.9 mph |
| Model Number | Tilt Range |
|---|---|
| 2THD220-24 | 15 fwd /12 bckwd |
| 2THD240-24 | 15 fwd /12 bckwd |
| 2THD260-24 | 15 fwd /12 bckwd |
| 2THD280-24 | 15 fwd /12 bckwd |
| 2THD300-24 | 15 fwd /12 bckwd |
| Model Number | Fuel |
|---|---|
| 2THD220-24 | DIESEL |
| 2THD240-24 | DIESEL |
| 2THD260-24 | DIESEL |
| 2THD280-24 | DIESEL |
| 2THD300-24 | DIESEL |
*Based on 24″ load center
Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.
Specifications
LOAD CAPACITY
MAX FORK HEIGHT
LOAD CENTER
Overview
Toyota’s High Capacity Core IC Outdoor Forklift offers benefits such as high load capacities, durability, and operator productivity, thanks to features like pneumatic tires for outdoor use and an enhanced serviceability via a 65° side-tilt cab. It is built for heavy-duty tasks in applications like lumber and steel yards, designed to handle challenging environments with robust components like a rugged drive axle and high-capacity cooling systems.
Performance
- 4-cylinder diesel engine
- Electronically-controlled powershift transmission
- 7″ touch-screen multi-function display
- Full hydraulic power steering
- On-demand load-sensing hydraulic system
- 2-function hydraulic control valve to lift & tilt
- Independent brake & inching pedals
- Upswept exhaust
Ergonomics
- Front & rear reflectors
- Mechanical suspension seat
- Telescopic & tilting steering column
- Floor mat
- Operator manual box
- Roof-mounted amber strobe
- Fingertip hydraulic controls
- Left-hand shift lever
- Long operator assist grips
- Spring-applied, hydraulic-release parking brake
- Premium cabin
Safety Features
- Operator Presence Sensing System (OPSS)
- Electrical horn
- Asbestos-free components
- Neutral safety switch
- Integrated overhead guard
- Operator restraint system seat
- Orange forks
Ease of Service
- Remote oil drain
- Easy-access filters
- Easy-lift hoods, panels, and doors
- Externally serviceable brakes
- Cab tilt with manual handpump
Options
