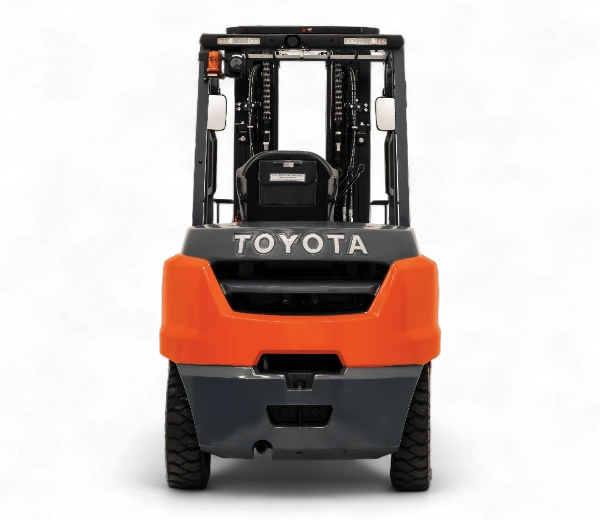

Toyota Mid IC Outdoor Forklift
Premier Pick for Mid-Capacity Outdoor Material Handling
The Toyota Mid IC Outdoor Forklift, with a capacity of 8,000 to 11,000 pounds, is a premier material handling solution for most mid-capacity outdoor applications. Robust, durable, and engineered with ergonomics in mind, the Mid IC Outdoor Forklift is ideal for long days in the lumberyard, on construction sites, and in most other outdoor applications.
Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.
Specs
| Model Number | Load Capacity | Full Load Max. Travel Speed | Full Load Max. Lift Speed | Full Load Max. Gradeability | Basic Right Angle Stack** | Fuel |
|---|---|---|---|---|---|---|
| 8FD35U | 8,000 lbs | 13.1 mph | 103 fpm | 43% | 122.5" | Diesel |
| 8FG35U | 8,000 lbs | 13.7 mph | 103 fpm | 42% | 122.5" | LPG/Gas |
| 8FD40U | 9,000 lbs | 13.1 mph | 103 fpm | 39% | 124.5" | Diesel |
| 8FG40U | 9,000 lbs | 13.7 mph | 103 fpm | 38% | 124.5" | LPG/Gas |
| 8FD45U | 10,000 lbs | 13.1 mph | 94 fpm | 35% | 129.5" | Diesel |
| 8FG45U | 10,000 lbs | 13.7 mph | 94 fpm | 34% | 129.5" | LPG/Gas |
| 8FD50U | 11,000 lbs | 13.1 mph | 94 fpm | 31% | 132.5" | Diesel |
| 8FG50U | 11,000 lbs | 13.7 mph | 94 fpm | 31% | 132.5" | LPG/Gas |
| Model Number | Load Capacity |
|---|---|
| 8FD35U | 8,000 lbs |
| 8FG35U | 8,000 lbs |
| 8FD40U | 9,000 lbs |
| 8FG40U | 9,000 lbs |
| 8FD45U | 10,000 lbs |
| 8FG45U | 10,000 lbs |
| 8FD50U | 11,000 lbs |
| 8FG50U | 11,000 lbs |
| Model Number | Full Load Max. Travel Speed |
|---|---|
| 8FD35U | 13.1 mph |
| 8FG35U | 13.7 mph |
| 8FD40U | 13.1 mph |
| 8FG40U | 13.7 mph |
| 8FD45U | 13.1 mph |
| 8FG45U | 13.7 mph |
| 8FD50U | 13.1 mph |
| 8FG50U | 13.7 mph |
| Model Number | Full Load Max. Lift Speed |
|---|---|
| 8FD35U | 103 fpm |
| 8FG35U | 103 fpm |
| 8FD40U | 103 fpm |
| 8FG40U | 103 fpm |
| 8FD45U | 94 fpm |
| 8FG45U | 94 fpm |
| 8FD50U | 94 fpm |
| 8FG50U | 94 fpm |
| Model Number | Full Load Max. Gradeability |
|---|---|
| 8FD35U | 43% |
| 8FG35U | 42% |
| 8FD40U | 39% |
| 8FG40U | 38% |
| 8FD45U | 35% |
| 8FG45U | 34% |
| 8FD50U | 31% |
| 8FG50U | 31% |
| Model Number | Basic Right Angle Stack** |
|---|---|
| 8FD35U | 122.5" |
| 8FG35U | 122.5" |
| 8FD40U | 124.5" |
| 8FG40U | 124.5" |
| 8FD45U | 129.5" |
| 8FG45U | 129.5" |
| 8FD50U | 132.5" |
| 8FG50U | 132.5" |
| Model Number | Fuel |
|---|---|
| 8FD35U | Diesel |
| 8FG35U | LPG/Gas |
| 8FD40U | Diesel |
| 8FG40U | LPG/Gas |
| 8FD45U | Diesel |
| 8FG45U | LPG/Gas |
| 8FD50U | Diesel |
| 8FG50U | LPG/Gas |
*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer representative prior to purchase.
Specifications
LOAD CAPACITY
FULL LOAD TRAVEL SPEED
FUEL
Overview
The Mid IC Outdoor forklift is a popular option for mid-duty applications and makes long work days more enjoyable and efficient. Ergonomic design and features like the optional System of Active Stability (SAS) enhance operator comfort and safety
Performance
- Integrated monitoring system
- EPA/CARB certified engines
- CAN bus communication
- Integrated headlight and turn signal lever
- Engine protection system
Ergonomics
- Dash-mounted instrument display
- 11.8″ diameter two-spoke steering wheel
- Load-sensing power steering
- Cowl-mount hydraulic control levers with rubber boot covers
- 12″ dual operator assist grips
- Low wide-entry steps
- 4-way adjustable vinyl full-suspension seat
Safety Features
- System of Active Stability (SAS)
- Operator Presence Sensing System (OPSS)
- Bolt-on overhead guard
- Key lowering interlock
- Asbestos free components
- Neutral start safety switch
Ease of Service
- Tool-less floorboard
- Engine hood assist damper with lock device
- Air cleaner discharge valve
- Easy lift engine hood with wide 75° opening
- Moisture-resistant electric connectors
Options
