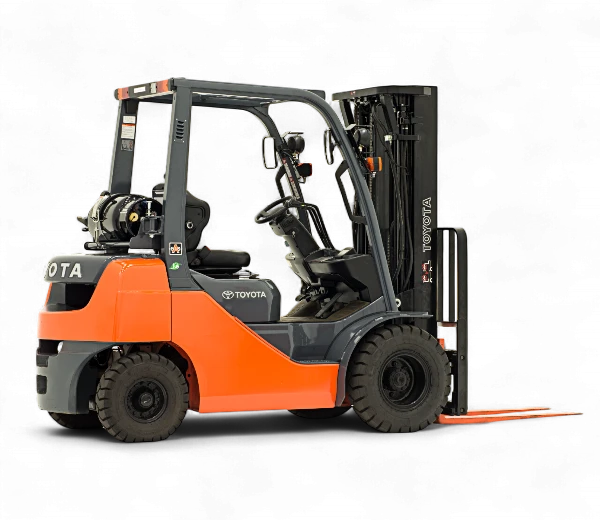

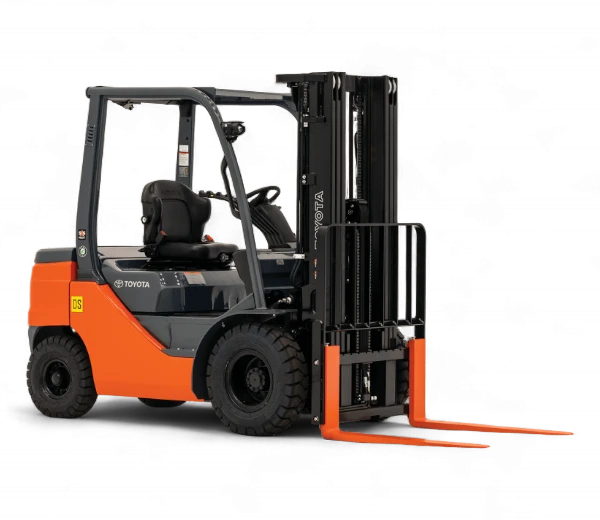

Toyota Core IC Outdoor Forklift
Industry Leader!
Enhanced Durability for Outdoor Material Handling
The Toyota Core IC Outdoor Forklift is a versatile internal combustion (IC) forklift designed for demanding outdoor and indoor use, featuring pneumatic tires for superior traction on uneven surfaces. Key features include lift capacities of 3,000 to 6,500 pounds and enhanced durability components, such as sealed air intakes and moisture-resistant electrical connections.
Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.
Specs
| Model Number | Load Capacity | Max. Full Load Travel Speed | Max. Full Load Lift Speed | Max. Full Load Gradeability | Basic Right Angle Stack** | Fuel |
|---|---|---|---|---|---|---|
| 8FDU15 | 3,000 lbs | 11.8 mph | 128 fpm | 45% | 91.9" | Diesel |
| 50-8FGU15 | 3,000 lbs | 11.5 mph | 131 fpm | 45% | 92.1" | LPG |
| 8FDU18 | 3,500 lbs | 11.8 mph | 128 fpm | 45% | 93.9" | Diesel |
| 50-8FGU18 | 3,500 lbs | 11.5 mph | 131 fpm | 45% | 93.9" | LPG |
| 8FDU20 | 4,000 lbs | 10.3 mph | 121 fpm | 39% | 103.2" | Diesel |
| 50-8FGU20 | 4,000 lbs | 10.9 mph | 118 fpm | 41% | 103.2" | LPG |
| 8FDU25 | 5,000 lbs | 10.3 mph | 121 fpm | 33% | 105.9" | Diesel |
| 50-8FGU25 | 5,000 lbs | 10.9 mph | 118 fpm | 34% | 105.9" | LPG |
| 8FDU30 | 6,000 lbs | 10.3 mph | 98 fpm | 26% | 111.4" | Diesel |
| 50-8FGU30 | 6,000 lbs | 11.2 mph | 118 fpm | 26% | 111.6" | LPG |
| 8FDU32 | 6,500 lbs | 10.3 mph | 98 fpm | 28% | 112.4" | Diesel |
| 50-8FGU32 | 6,500 lbs | 11.2 mph | 100 fpm | 26% | 112.4" | LPG |
| 40-8FGU15 | 3,000 lbs | 11.5 mph | 131 fpm | 45% | 91.9" | Dual Fuel |
| 40-8FGU18 | 3,500 lbs | 11.5 mph | 131 fpm | 45% | 93.9" | Dual Fuel |
| 40-8FGU20 | 4,000 lbs | 10.9 mph | 118 fpm | 39% | 103.2" | Dual Fuel |
| 40-8FGU25 | 5,000 lbs | 10.9 mph | 118 fpm | 33% | 105.9" | Dual Fuel |
| 40-8FGU30 | 6,000 lbs | 11.2 mph | 98 fpm | 26% | 111.6" | Dual Fuel |
| 40-8FGU32 | 6,500 lbs | 11.2 mph | 98 fpm | 21% | 112.4" | Dual Fuel |
| Model Number | Load Capacity |
|---|---|
| 8FDU15 | 3,000 lbs |
| 50-8FGU15 | 3,000 lbs |
| 8FDU18 | 3,500 lbs |
| 50-8FGU18 | 3,500 lbs |
| 8FDU20 | 4,000 lbs |
| 50-8FGU20 | 4,000 lbs |
| 8FDU25 | 5,000 lbs |
| 50-8FGU25 | 5,000 lbs |
| 8FDU30 | 6,000 lbs |
| 50-8FGU30 | 6,000 lbs |
| 8FDU32 | 6,500 lbs |
| 50-8FGU32 | 6,500 lbs |
| 40-8FGU15 | 3,000 lbs |
| 40-8FGU18 | 3,500 lbs |
| 40-8FGU20 | 4,000 lbs |
| 40-8FGU25 | 5,000 lbs |
| 40-8FGU30 | 6,000 lbs |
| 40-8FGU32 | 6,500 lbs |
| Model Number | Max. Full Load Travel Speed |
|---|---|
| 8FDU15 | 11.8 mph |
| 50-8FGU15 | 11.5 mph |
| 8FDU18 | 11.8 mph |
| 50-8FGU18 | 11.5 mph |
| 8FDU20 | 10.3 mph |
| 50-8FGU20 | 10.9 mph |
| 8FDU25 | 10.3 mph |
| 50-8FGU25 | 10.9 mph |
| 8FDU30 | 10.3 mph |
| 50-8FGU30 | 11.2 mph |
| 8FDU32 | 10.3 mph |
| 50-8FGU32 | 11.2 mph |
| 40-8FGU15 | 11.5 mph |
| 40-8FGU18 | 11.5 mph |
| 40-8FGU20 | 10.9 mph |
| 40-8FGU25 | 10.9 mph |
| 40-8FGU30 | 11.2 mph |
| 40-8FGU32 | 11.2 mph |
| Model Number | Max. Full Load Lift Speed |
|---|---|
| 8FDU15 | 128 fpm |
| 50-8FGU15 | 131 fpm |
| 8FDU18 | 128 fpm |
| 50-8FGU18 | 131 fpm |
| 8FDU20 | 121 fpm |
| 50-8FGU20 | 118 fpm |
| 8FDU25 | 121 fpm |
| 50-8FGU25 | 118 fpm |
| 8FDU30 | 98 fpm |
| 50-8FGU30 | 118 fpm |
| 8FDU32 | 98 fpm |
| 50-8FGU32 | 100 fpm |
| 40-8FGU15 | 131 fpm |
| 40-8FGU18 | 131 fpm |
| 40-8FGU20 | 118 fpm |
| 40-8FGU25 | 118 fpm |
| 40-8FGU30 | 98 fpm |
| 40-8FGU32 | 98 fpm |
| Model Number | Max. Full Load Gradeability |
|---|---|
| 8FDU15 | 45% |
| 50-8FGU15 | 45% |
| 8FDU18 | 45% |
| 50-8FGU18 | 45% |
| 8FDU20 | 39% |
| 50-8FGU20 | 41% |
| 8FDU25 | 33% |
| 50-8FGU25 | 34% |
| 8FDU30 | 26% |
| 50-8FGU30 | 26% |
| 8FDU32 | 28% |
| 50-8FGU32 | 26% |
| 40-8FGU15 | 45% |
| 40-8FGU18 | 45% |
| 40-8FGU20 | 39% |
| 40-8FGU25 | 33% |
| 40-8FGU30 | 26% |
| 40-8FGU32 | 21% |
| Model Number | Basic Right Angle Stack** |
|---|---|
| 8FDU15 | 91.9" |
| 50-8FGU15 | 92.1" |
| 8FDU18 | 93.9" |
| 50-8FGU18 | 93.9" |
| 8FDU20 | 103.2" |
| 50-8FGU20 | 103.2" |
| 8FDU25 | 105.9" |
| 50-8FGU25 | 105.9" |
| 8FDU30 | 111.4" |
| 50-8FGU30 | 111.6" |
| 8FDU32 | 112.4" |
| 50-8FGU32 | 112.4" |
| 40-8FGU15 | 91.9" |
| 40-8FGU18 | 93.9" |
| 40-8FGU20 | 103.2" |
| 40-8FGU25 | 105.9" |
| 40-8FGU30 | 111.6" |
| 40-8FGU32 | 112.4" |
| Model Number | Fuel |
|---|---|
| 8FDU15 | Diesel |
| 50-8FGU15 | LPG |
| 8FDU18 | Diesel |
| 50-8FGU18 | LPG |
| 8FDU20 | Diesel |
| 50-8FGU20 | LPG |
| 8FDU25 | Diesel |
| 50-8FGU25 | LPG |
| 8FDU30 | Diesel |
| 50-8FGU30 | LPG |
| 8FDU32 | Diesel |
| 50-8FGU32 | LPG |
| 40-8FGU15 | Dual Fuel |
| 40-8FGU18 | Dual Fuel |
| 40-8FGU20 | Dual Fuel |
| 40-8FGU25 | Dual Fuel |
| 40-8FGU30 | Dual Fuel |
| 40-8FGU32 | Dual Fuel |
*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer representative prior to purchase.
Specifications
LOAD CAPACITY
3,000 – 6,500 LBS
FULL LOAD TRAVEL SPEED
10.3 – 11.8 MPH
FUEL
LPG / DIESEL /DUAL FUEL
Overview
The Core IC Outdoor Forklift leads the industry in sales and is a durable, ergonomically pleasing, and versatile outdoor material handling solution. It delivers fast travel speeds and superior torque, increasing productivity. It has a large fuel tank for longer operation times before needing to refuel.
Performance
- Technician-programmable speed control
- Fully-stamped steel side panels
- EPA/CARB certified gasoline engine
- Integrated monitoring system
- One-way automatic fork leveling
Ergonomics
- Dash-mounted instrument display
- 11.8″ diameter two-spoke steering wheel
- Load-sensing hydrostatic steering
- Heavy-duty non-slip rubber floor mat
- Cowl-mount hydraulic control levers with rubber boot covers
- 4-way adjustable vinyl full-suspension seat
- 12″ long dual operator assist grips
Safety Features
- System of Active Stability (SAS)
- Bolt-on overhead guard
- Key lowering interlock
- Neutral engine start safety switch
Ease of Service
- Tool-less floorboard
- Engine hood assist damper with lock device
- Air cleaner discharge valve
- Externally mounted hydraulic oil return filter
- Dash-mounted brake fluid level check
- Easy lift engine hood with wide 75° opening
- Moisture-resistant electric connectors
Options
Planned Maintenance
Reduce downtime, lower overall repair costs, and improve safety and compliance
SENS Smart Environment Sensor
Detects pedestrians and objects for enhanced safety
Heater Kit
Improves operator comfort
Windshield Wiper Kit
Wipers clear rain, snow, and other debris from the windshield
Cloth Seat
Breathable, better grip
Vinyl Seat
Durable, ease of cleaning, practical choice for industrial environments
Steering Wheel Knob
Increases efficiency by allowing for one-handed steering
EZ Pedal
Change the direction of travel with your foot
LPG Swing-Down Bracket
Simplifies tank replacement by swinging out, lowering and locking
Wide Tread Tire
For enhanced stability, improved traction, and higher load capacity
360° Camera
Bird's eye view to aid navigation in tight spaces
Strobe Light
Bright, sharp flashes to quickly capture attention
Backup Alarm
Loudly and automatically alert
Rearview Mirrors
Reduces blind spots
Rear Assist Grip With Horn Button
Prevents hand injuries by keeping hands inside the operator compartment
LED Lights, Front & Rear
Improve visibility in low-light conditions
Fire Extinguisher
Immediate tool for fighting small fires caused by fuel or electrical issues
Related Products

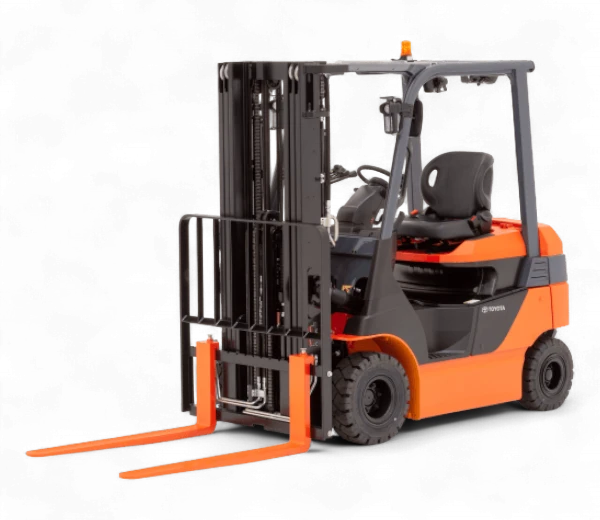

Toyota Outdoor Electric Forklift
Toyota

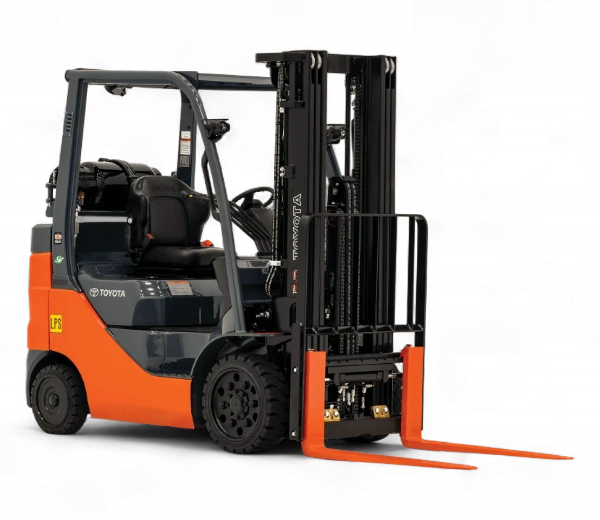

Toyota Core IC Indoor Forklift
Toyota
Toyota High Capacity Core IC Outdoor Forklift
Toyota

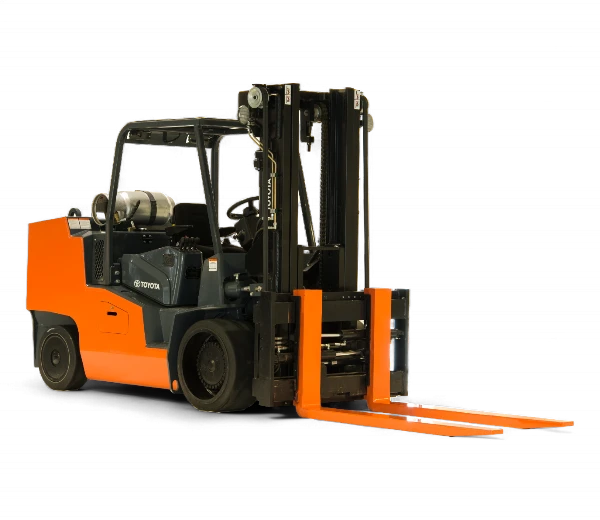

Toyota High-Capacity Large IC Indoor Forklift
Toyota

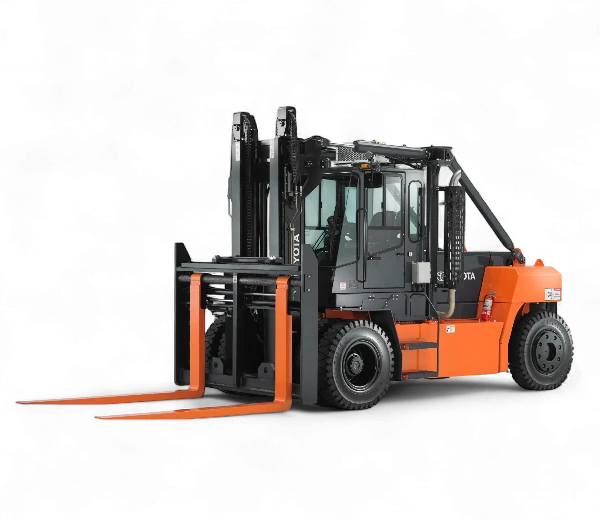

Toyota High Capacity IC Outdoor Forklift
