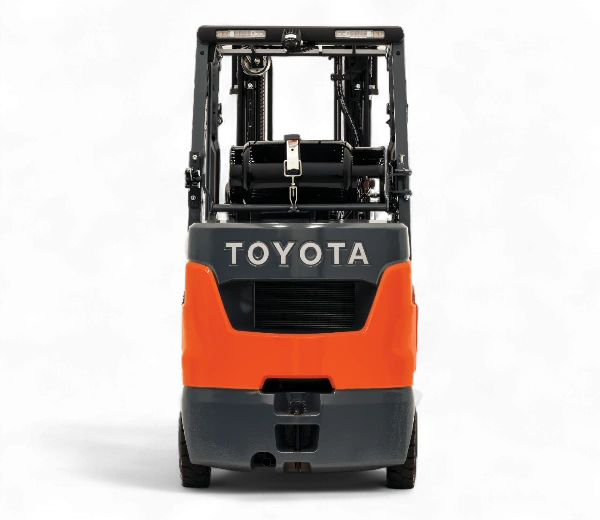

Toyota Core IC Indoor Forklift
North America’s Favorite Forklift!
Toyota’s Core IC Indoor Forklift is one of the most popular forklifts in North America. Warehousing and distribution applications, the auto industry, general manufacturing plants, and retail storefronts often utilize Toyota’s Core IC Indoor for its extreme versatility. Powerful enough to lift 6,500 pounds yet capable of navigating in 12-foot aisles, the Core IC Indoor forklift is a trusted multipurpose forklift.
Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.
Specs
| Model Number | Load Capacity | Full Load Max Travel Speed | Full Load Max Lift Speed | Full Load Max Gradeability | Basic Right Angle Stack** | Voltage |
|---|---|---|---|---|---|---|
| 8FGCU15 | 3,000 lbs | 10.9 mph | 110 fpm | 43% | 83.5" | 12 |
| 8FGCU18 | 3,500 lbs | 10.9 mph | 110 fpm | 40% | 86" | 12 |
| 8FGCSU20 | 4,000 lbs | 10.9 mph | 110 fpm | 35% | 87.6" | 12 |
| 8FGCU20 | 4,000 lbs | 10.6 mph | 120 fpm | 36% | 92.3" | 12 |
| 8FGCU25 | 5,000 lbs | 10.6 mph | 120 fpm | 30% | 94.3" | 12 |
| 8FGCU30 | 6,000 lbs | 10.6 mph | 98 fpm | 24% | 97.5" | 12 |
| 8FGCU32 | 6,500 lbs | 10.6 mph | 98 fpm | 24% | 98.8" | 12 |
| Model Number | Load Capacity |
|---|---|
| 8FGCU15 | 3,000 lbs |
| 8FGCU18 | 3,500 lbs |
| 8FGCSU20 | 4,000 lbs |
| 8FGCU20 | 4,000 lbs |
| 8FGCU25 | 5,000 lbs |
| 8FGCU30 | 6,000 lbs |
| 8FGCU32 | 6,500 lbs |
| Model Number | Full Load Max Travel Speed |
|---|---|
| 8FGCU15 | 10.9 mph |
| 8FGCU18 | 10.9 mph |
| 8FGCSU20 | 10.9 mph |
| 8FGCU20 | 10.6 mph |
| 8FGCU25 | 10.6 mph |
| 8FGCU30 | 10.6 mph |
| 8FGCU32 | 10.6 mph |
| Model Number | Full Load Max Lift Speed |
|---|---|
| 8FGCU15 | 110 fpm |
| 8FGCU18 | 110 fpm |
| 8FGCSU20 | 110 fpm |
| 8FGCU20 | 120 fpm |
| 8FGCU25 | 120 fpm |
| 8FGCU30 | 98 fpm |
| 8FGCU32 | 98 fpm |
| Model Number | Full Load Max Gradeability |
|---|---|
| 8FGCU15 | 43% |
| 8FGCU18 | 40% |
| 8FGCSU20 | 35% |
| 8FGCU20 | 36% |
| 8FGCU25 | 30% |
| 8FGCU30 | 24% |
| 8FGCU32 | 24% |
| Model Number | Basic Right Angle Stack** |
|---|---|
| 8FGCU15 | 83.5" |
| 8FGCU18 | 86" |
| 8FGCSU20 | 87.6" |
| 8FGCU20 | 92.3" |
| 8FGCU25 | 94.3" |
| 8FGCU30 | 97.5" |
| 8FGCU32 | 98.8" |
| Model Number | Voltage |
|---|---|
| 8FGCU15 | 12 |
| 8FGCU18 | 12 |
| 8FGCSU20 | 12 |
| 8FGCU20 | 12 |
| 8FGCU25 | 12 |
| 8FGCU30 | 12 |
| 8FGCU32 | 12 |
*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer representative prior to purchase.
Specifications
LOAD CAPACITY
FULL LOAD TRAVEL SPEED
FUEL TYPE
Overview
The Toyota Core IC Indoor Forklift is a versatile, internal combustion forklift designed for indoor use, especially in warehousing, distribution, and manufacturing. Key features include capacities from 3,000 to 6,500 pounds, a compact design for maneuverability, and an emphasis on operator comfort and safety, with features such as the System of Active Stability™ (SAS) and advanced ergonomics. It is equipped with a multi-function display for diagnostics and is durability-focused, with easy-to-service components.
Performance
- Fully-stamped steel side panels
- Large-capacity engine cooling fan
- Fully-sealed air-intake system
- Independent brake & inching pedals
- Automatic transmission with oil cooler
- Foot-activated parking brake
Ergonomics
- Dash-mounted instrument display
- 8″ diameter two-spoke steering wheel
- Load-sensing hydrostatic steering
- Heavy-duty non-slip rubber floor mat
- 12″ dual operator assist grips
- Low, wide-entry steps
- 4-way adjustable vinyl full-suspension seat
Safety Features
- System of Active Stability (SAS)
- Operator Presence Sensing System (OPSS)
- Bolt-on overhead guard
- Key-lowering interlock
- Neutral engine start safety switch
Ease of Service
- Tool-less floorboard
- Engine hood assist damper with lock device
- Air cleaner discharge valve
- Externally-mounted hydraulic oil return filter
- Dash-mounted brake fluid level check
- Easy-lift engine hood
Options
