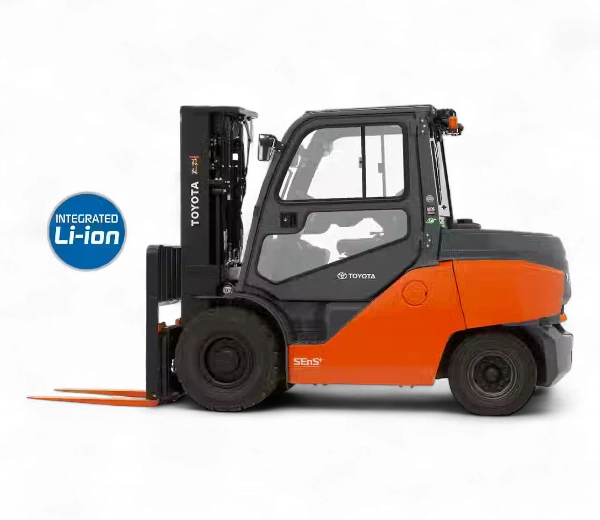

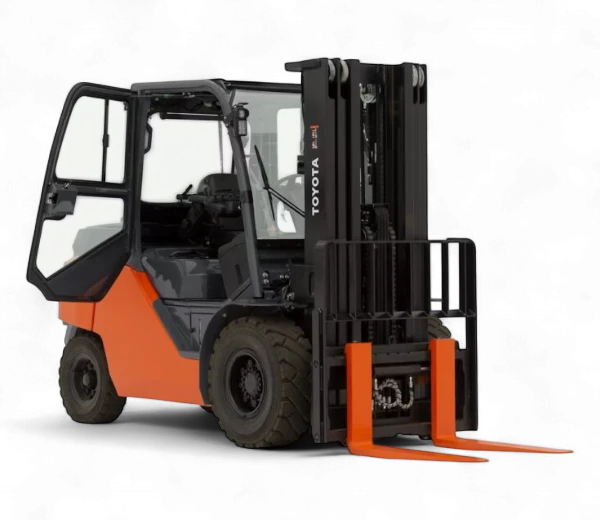

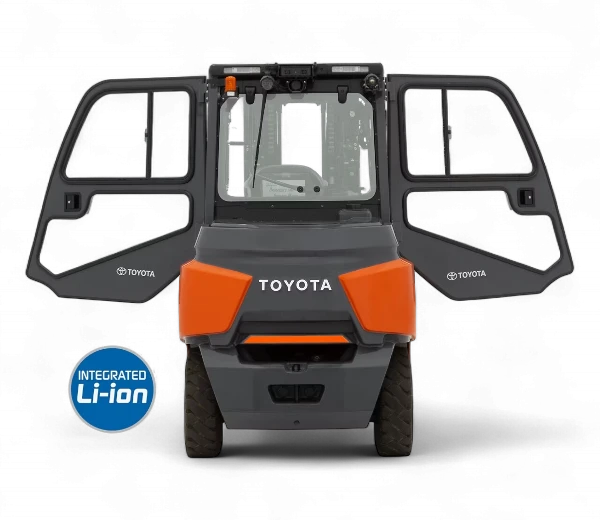

Toyota Integrated Mid Electric Pneumatic Forklift
It’s All Electric
The Toyota Integrated Mid Electric Pneumatic Forklift offers electric power and durability previously only found in internal combustion forklifts, providing a lifting capacity of 8,000-11,000 pounds for challenging mid-capacity applications, both indoor and outdoor.
It features a custom-designed lithium-ion battery system for extended run times, a robust design to withstand various weather conditions, and an integrated electric drive system, all designed for optimal operability, ergonomics, and productivity.
Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.
Specs
| Model Number | Load Capacity | Max Fork Height | Turning Radius Outside | Max Full Load Travel Speed | Max Lifting Speed | Gradeability |
|---|---|---|---|---|---|---|
| 9FBZ35U | 8,000 lbs | 120" | 103.5" | 14.1 mph | 105 fpm | 17.2% |
| 9FBZ40U | 9,000 lbs | 120" | 105.5" | 13.9 mph | 104 fpm | 15.6% |
| 9FBZ45U | 10,000 lbs | 120" | 111.8" | 13.5 mph | 100 fpm | 12.9% |
| 9FBZ50U | 11,000 lbs | 120.5" | 112.8" | 13.5 mph | 100 fpm | 11.8% |
| Model Number | Load Capacity |
|---|---|
| 9FBZ35U | 8,000 lbs |
| 9FBZ40U | 9,000 lbs |
| 9FBZ45U | 10,000 lbs |
| 9FBZ50U | 11,000 lbs |
| Model Number | Max Fork Height |
|---|---|
| 9FBZ35U | 120" |
| 9FBZ40U | 120" |
| 9FBZ45U | 120" |
| 9FBZ50U | 120.5" |
| Model Number | Turning Radius Outside |
|---|---|
| 9FBZ35U | 103.5" |
| 9FBZ40U | 105.5" |
| 9FBZ45U | 111.8" |
| 9FBZ50U | 112.8" |
| Model Number | Max Full Load Travel Speed |
|---|---|
| 9FBZ35U | 14.1 mph |
| 9FBZ40U | 13.9 mph |
| 9FBZ45U | 13.5 mph |
| 9FBZ50U | 13.5 mph |
| Model Number | Max Lifting Speed |
|---|---|
| 9FBZ35U | 105 fpm |
| 9FBZ40U | 104 fpm |
| 9FBZ45U | 100 fpm |
| 9FBZ50U | 100 fpm |
| Model Number | Gradeability |
|---|---|
| 9FBZ35U | 17.2% |
| 9FBZ40U | 15.6% |
| 9FBZ45U | 12.9% |
| 9FBZ50U | 11.8% |
*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.
Specifications
LIFT CAPACITY
OUTSIDE TURNING RADIUS
MAXIUMUM TRAVEL SPEED
Overview
Toyota’s Integrated Electric Forklifts not only come equipped with power, but they’re also designed with the same mindfulness as our other electric products. Your operators will appreciate the reduced vibration and noise levels provided by the floating cab design, which can further reduce back stress and fatigue. Additionally, this forklift comes equipped with a proprietary, custom-designed lithium-ion battery, delivering maximum productivity shift after shift.
You can also feel secure knowing that these lifts are built with patented features, such as the System of Active Stability (SAS), which engages additional safety features during operation. These lifts also come with an optional SEnS+ Smart Environment Sensor Plus, a highly innovative technology that assists operators in identifying pedestrians or objects during a shift.
Performance
- Integrated Lithium-Ion battery
- 90 V electrical system
- AC drive system
- AC lift system
- AC steering
- Electronic hydraulic controls
Ergonomics
- Dash-mounted instrument display
- 11.8” diameter two-spoke steering wheel
- Load-sensing power steering
- Seat-mounted mini-lever hydraulic controls
- Premium, full-suspension vinyl seat
- Non-cinching seatbelt
- Integrated headlight and turn signal lever
- One-way automatic fork leveling
- Poly-clear canopy
Safety Features
- System of Active Stability (SAS)
- Operator Presence Sensing System (OPSS)
- Bolt-on overhead guard
- Key lowering interlock
- Electric horn
- Automatic parking brake
- Orange forks
- Speed control
- LED headlights
- Key off, headlight off system
Ease of Service
- Easy access, no tools floorboard
- Hood assist damper with lock device
- Easy lift hood with wide 75° opening
- Easy access to common service items
- Self-diagnostics
- Built-in analysis
Options
