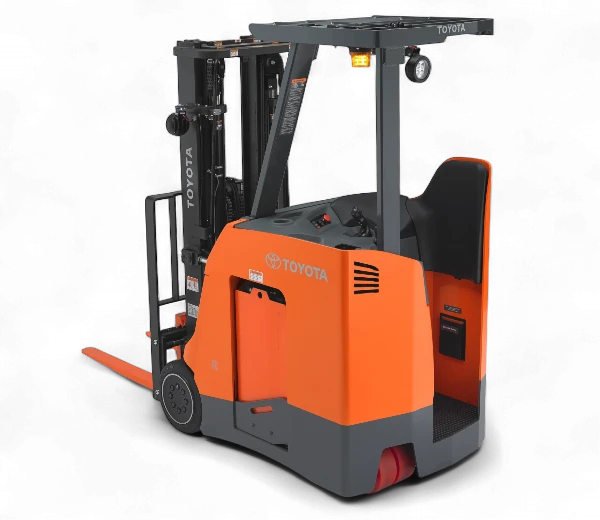

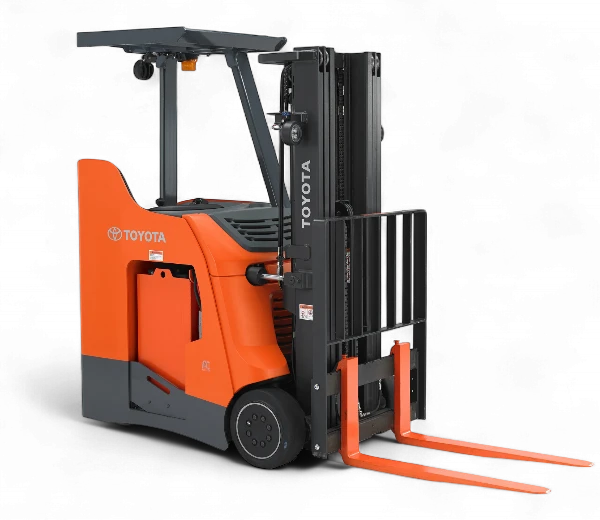

Toyota Stand-Up Electric Rider Forklift
Ready to Work When You Are
The unique dock-to-stock capability of the Toyota Stand Up Rider Forklift makes it the top of its class and one of the most versatile forklifts in Toyota’s product line. With its ability to navigate narrow aisles, the Toyota Stand Up Rider Forklift is an asset to any material handling job.
Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.
Specs
| Model Number | Load Capacity | Max. Travel Speed Full Load | Max Lift Height | Max. Gradeability Full Load | Basic Right Angle Stack** | Lift Type |
|---|---|---|---|---|---|---|
| SR1‐BEF30 | 3,000 lbs | 7.5 mph | 227" | 15% | 68.8" | 2-Stage |
| SR1‐BET30 | 3,000 lbs | 7.5 mph | 227" | 15% | 68.8" | 3-Stage |
| SR1‐BEF35 | 3,500 lbs | 7.5 mph | 227" | 15% | 68.8" | 2-Stage |
| SR1‐BET35 | 3,500 lbs | 7.5 mph | 227" | 15% | 68.8" | 3-Stage |
| SR1‐BEF40 | 4,000 lbs | 7.5 mph | 227" | 15% | 68.8" | 2-Stage |
| SR1‐BET40 | 4,000 lbs | 7.5 mph | 227" | 15% | 68.8" | 3-Stage |
| SR1‐HPF30 | 3,000 lbs | 7.5 mph | 270" | 15% | 68.8" | 2-Stage |
| SR1‐HPT30 | 3,000 lbs | 7.5 mph | 270" | 15% | 68.8" | 3-Stage |
| SR1‐HPM30 | 3,000 lbs | 7.5 mph | 270" | 15% | 68.8" | 4-Stage |
| SR1‐HPF35 | 3,500 lbs | 7.5 mph | 270" | 15% | 68.8" | 2-Stage |
| SR1‐HPT35 | 3,500 lbs | 7.5 mph | 270" | 15% | 68.8" | 3-Stage |
| SR1‐HPM35 | 3,500 lbs | 7.5 mph | 270" | 15% | 68.8" | 4-Stage |
| SR1‐HPF40 | 4,000 lbs | 7.5 mph | 270" | 15% | 68.8" | 2-Stage |
| SR1‐HPT40 | 4,000 lbs | 7.5 mph | 270" | 15% | 68.8" | 3-Stage |
| SR1‐HPM40 | 4,000 lbs | 7.5 mph | 270" | 15% | 68.8" | 4-Stage |
| SR1‐HPF50 | 5,000 lbs | 7.5 mph | 270" | 15% | 68.8" | 2-Stage |
| SR1‐HPT50 | 5,000 lbs | 7.5 mph | 270" | 15% | 68.8" | 3-Stage |
| SR1‐HPM50 | 5,000 lbs | 7.5 mph | 270" | 15% | 68.8" | 4-Stage |
| Model Number | Load Capacity |
|---|---|
| SR1‐BEF30 | 3,000 lbs |
| SR1‐BET30 | 3,000 lbs |
| SR1‐BEF35 | 3,500 lbs |
| SR1‐BET35 | 3,500 lbs |
| SR1‐BEF40 | 4,000 lbs |
| SR1‐BET40 | 4,000 lbs |
| SR1‐HPF30 | 3,000 lbs |
| SR1‐HPT30 | 3,000 lbs |
| SR1‐HPM30 | 3,000 lbs |
| SR1‐HPF35 | 3,500 lbs |
| SR1‐HPT35 | 3,500 lbs |
| SR1‐HPM35 | 3,500 lbs |
| SR1‐HPF40 | 4,000 lbs |
| SR1‐HPT40 | 4,000 lbs |
| SR1‐HPM40 | 4,000 lbs |
| SR1‐HPF50 | 5,000 lbs |
| SR1‐HPT50 | 5,000 lbs |
| SR1‐HPM50 | 5,000 lbs |
| Model Number | Max. Travel Speed Full Load |
|---|---|
| SR1‐BEF30 | 7.5 mph |
| SR1‐BET30 | 7.5 mph |
| SR1‐BEF35 | 7.5 mph |
| SR1‐BET35 | 7.5 mph |
| SR1‐BEF40 | 7.5 mph |
| SR1‐BET40 | 7.5 mph |
| SR1‐HPF30 | 7.5 mph |
| SR1‐HPT30 | 7.5 mph |
| SR1‐HPM30 | 7.5 mph |
| SR1‐HPF35 | 7.5 mph |
| SR1‐HPT35 | 7.5 mph |
| SR1‐HPM35 | 7.5 mph |
| SR1‐HPF40 | 7.5 mph |
| SR1‐HPT40 | 7.5 mph |
| SR1‐HPM40 | 7.5 mph |
| SR1‐HPF50 | 7.5 mph |
| SR1‐HPT50 | 7.5 mph |
| SR1‐HPM50 | 7.5 mph |
| Model Number | Max Lift Height |
|---|---|
| SR1‐BEF30 | 227" |
| SR1‐BET30 | 227" |
| SR1‐BEF35 | 227" |
| SR1‐BET35 | 227" |
| SR1‐BEF40 | 227" |
| SR1‐BET40 | 227" |
| SR1‐HPF30 | 270" |
| SR1‐HPT30 | 270" |
| SR1‐HPM30 | 270" |
| SR1‐HPF35 | 270" |
| SR1‐HPT35 | 270" |
| SR1‐HPM35 | 270" |
| SR1‐HPF40 | 270" |
| SR1‐HPT40 | 270" |
| SR1‐HPM40 | 270" |
| SR1‐HPF50 | 270" |
| SR1‐HPT50 | 270" |
| SR1‐HPM50 | 270" |
| Model Number | Max. Gradeability Full Load |
|---|---|
| SR1‐BEF30 | 15% |
| SR1‐BET30 | 15% |
| SR1‐BEF35 | 15% |
| SR1‐BET35 | 15% |
| SR1‐BEF40 | 15% |
| SR1‐BET40 | 15% |
| SR1‐HPF30 | 15% |
| SR1‐HPT30 | 15% |
| SR1‐HPM30 | 15% |
| SR1‐HPF35 | 15% |
| SR1‐HPT35 | 15% |
| SR1‐HPM35 | 15% |
| SR1‐HPF40 | 15% |
| SR1‐HPT40 | 15% |
| SR1‐HPM40 | 15% |
| SR1‐HPF50 | 15% |
| SR1‐HPT50 | 15% |
| SR1‐HPM50 | 15% |
| Model Number | Basic Right Angle Stack** |
|---|---|
| SR1‐BEF30 | 68.8" |
| SR1‐BET30 | 68.8" |
| SR1‐BEF35 | 68.8" |
| SR1‐BET35 | 68.8" |
| SR1‐BEF40 | 68.8" |
| SR1‐BET40 | 68.8" |
| SR1‐HPF30 | 68.8" |
| SR1‐HPT30 | 68.8" |
| SR1‐HPM30 | 68.8" |
| SR1‐HPF35 | 68.8" |
| SR1‐HPT35 | 68.8" |
| SR1‐HPM35 | 68.8" |
| SR1‐HPF40 | 68.8" |
| SR1‐HPT40 | 68.8" |
| SR1‐HPM40 | 68.8" |
| SR1‐HPF50 | 68.8" |
| SR1‐HPT50 | 68.8" |
| SR1‐HPM50 | 68.8" |
| Model Number | Lift Type |
|---|---|
| SR1‐BEF30 | 2-Stage |
| SR1‐BET30 | 3-Stage |
| SR1‐BEF35 | 2-Stage |
| SR1‐BET35 | 3-Stage |
| SR1‐BEF40 | 2-Stage |
| SR1‐BET40 | 3-Stage |
| SR1‐HPF30 | 2-Stage |
| SR1‐HPT30 | 3-Stage |
| SR1‐HPM30 | 4-Stage |
| SR1‐HPF35 | 2-Stage |
| SR1‐HPT35 | 3-Stage |
| SR1‐HPM35 | 4-Stage |
| SR1‐HPF40 | 2-Stage |
| SR1‐HPT40 | 3-Stage |
| SR1‐HPM40 | 4-Stage |
| SR1‐HPF50 | 2-Stage |
| SR1‐HPT50 | 3-Stage |
| SR1‐HPM50 | 4-Stage |
* Based on 24″ load center
** Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer representative prior to purchase.
Specifications
LOAD CAPACITY
3,000 – 5,000 LBS
TRAVEL SPEED FULL LOAD
7.5 MPH
VOLTAGE
36 V
Overview
The Toyota Stand-Up Rider forklift is built with the ultimate performance and comfort in mind, delivering improved ergonomics, reliability and durability while reducing service intervals.
Performance
- 36 V electrical system
- AC transistor control system with MOSFET
- AC induction drive and lift motors
- Independent lift, steer and auxiliary motors
- Hydraulic mast cushioning
Ergonomics
- Shock-dampened, isolated operator compartment floor
- Spacious operator compartment
- Flexible side stance operator compartment
- Cushioned backrest & armrest
- Low-effort brake pedal
- Low step height
- Clipboard, amenity tray and cup holder
Safety Features
- High visibility mast and overhead guard
- Dual electric disk brakes
- Cornering speed control
- Hydrostatic power steering
- Regenerative braking
Ease of Service
- One-piece top cover
- Self-diagnostics
- Built-in analyzer
- Programmable maintenance indicator
- Temperature indicator
- Battery compartment rollers
Options
Planned Maintenance
Reduce downtime, lower overall repair costs, and improve safety and compliance
T-Matics Vehicle Management System
Real-time monitoring of forklift usage, operator performance, and maintenance needs
LED Operator Compartment Light
Provides better visibility for the operator, improves safety and productivity
Rear Wheel Steering
Tighter turns, enhanced precision, better load placement
Cold Storage Package
Enclosed cabin and heaters
2-Way Mast Tilt Centering
Automatically returns the mast to a true vertical position from both the forward and backward tilted positions
Fire Extinguisher
Immediate tool for fighting small fires caused by fuel or electrical issues
