Bendi 3-Wheel Articulating Very Narrow Forklift
A Powerful Alternative to Traditional Reach Truck
The Bendi B3/30AC Forklift works in aisles as narrow as 72″, has a base capacity of 3,000 pounds at 24″ load center, and lift heights to 30 feet. The single front wheel drive provides excellent maneuverability and traction.
Specs
| Model Number | Load Capacity | Lift Height | Overall Height | Overall Length | Overall Width | Voltage |
|---|---|---|---|---|---|---|
| B3/30AC | 3,000 lbs | 30' | 87" | 112.9" | 44.8" | 48 V |
| Model Number | Load Capacity |
|---|---|
| B3/30AC | 3,000 lbs |
| Model Number | Lift Height |
|---|---|
| B3/30AC | 30' |
| Model Number | Overall Height |
|---|---|
| B3/30AC | 87" |
| Model Number | Overall Length |
|---|---|
| B3/30AC | 112.9" |
| Model Number | Overall Width |
|---|---|
| B3/30AC | 44.8" |
| Model Number | Voltage |
|---|---|
| B3/30AC | 48 V |
Product specifications may not reflect the most current product details. Authorized Landoll dealers retain the most current product specifications. All specifications should be verified by an authorized Landoll dealer prior to purchase.
Overview

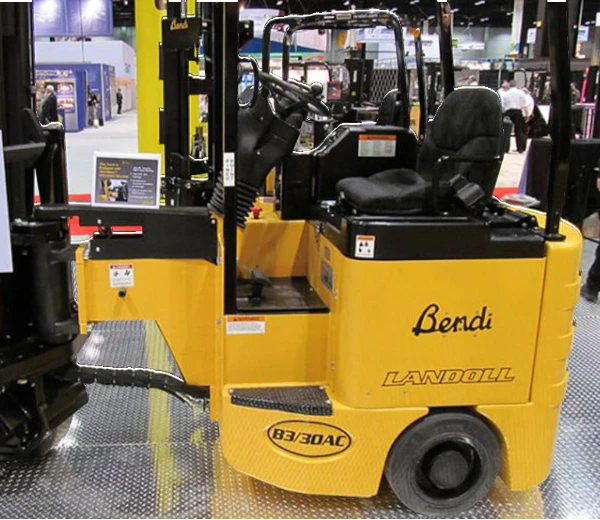

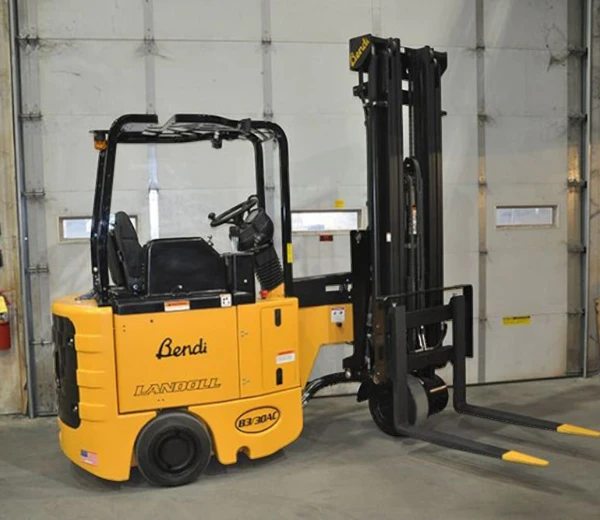

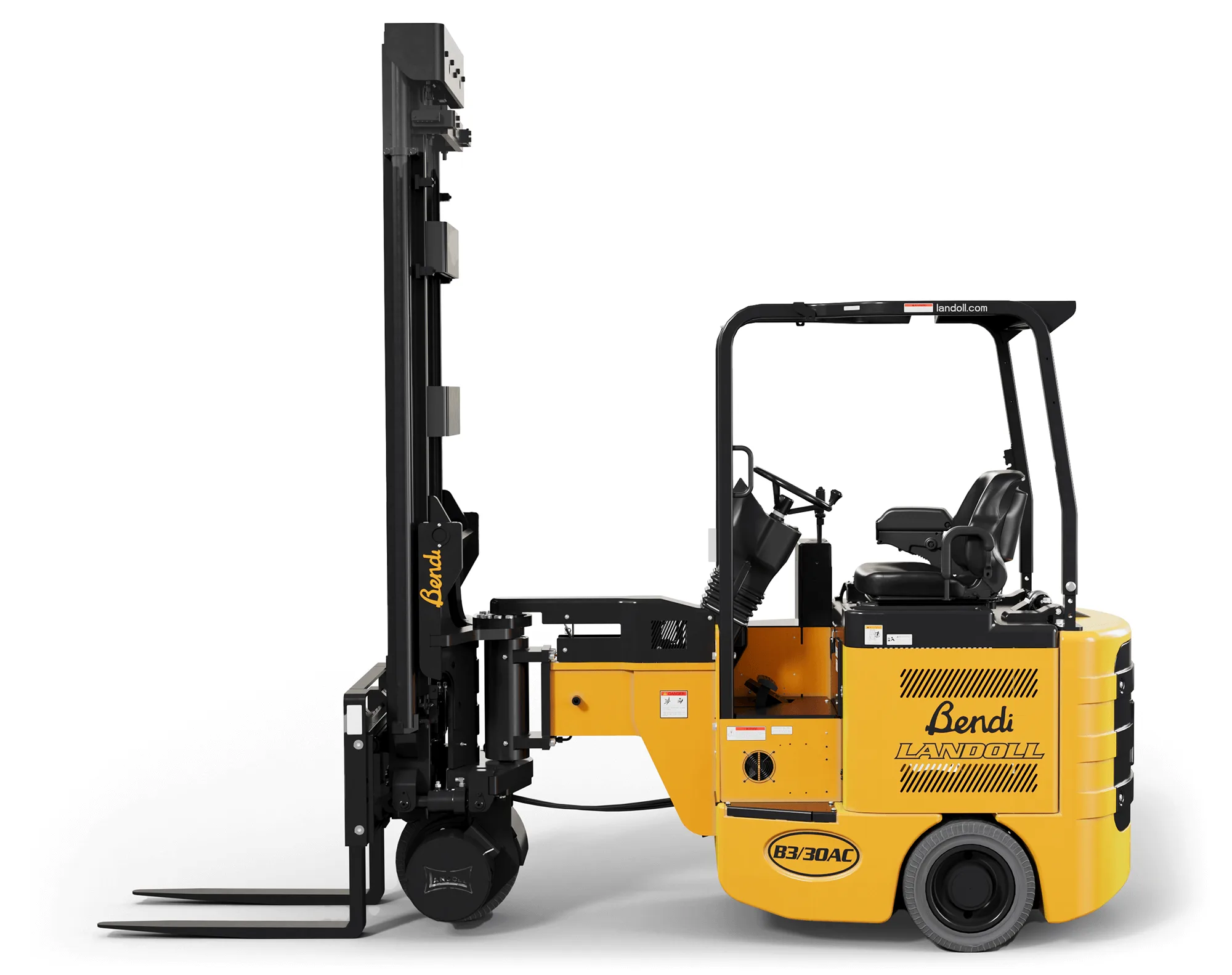

The Bendi B3/30AC is a 3-wheel articulating forklift with a single poly front drive tire and solid rubber rear tires. Front articulation of 220°, narrow mast and a compact front end allow easy stacking in Very Narrow Aisles. This truck can work inside and outside on paved surfaces.
The B3/30AC does all the jobs of a reach truck in aisles at least forty inches smaller.
Performance
- 48 V electrical system
- Large capacity battery compartment
- Hydraulic rear wheel brakes
Ergonomics
- Integral sideshifter
- Dura-Steer for smooth, reliable steering control
Safety Features
- Creep speed mode
- High-visibility mast
- LandActive enhanced traction control
Ease of Service
- Interactive LCD status monitor
- BDI with lift interrupt
- Hour meter with service monitor
- Diagnostic code display
- Input device calibration
- AC traction and hydraulic motors
- Curtis AC controllers
Options
