Mariotti ME AC Series Forklift
Narrow Aisle Solution

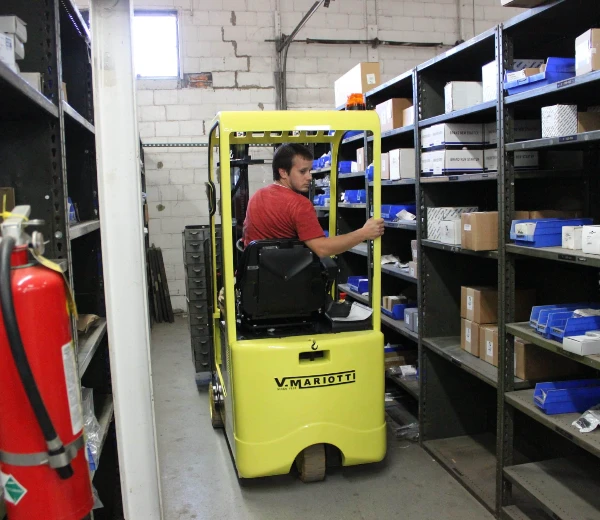

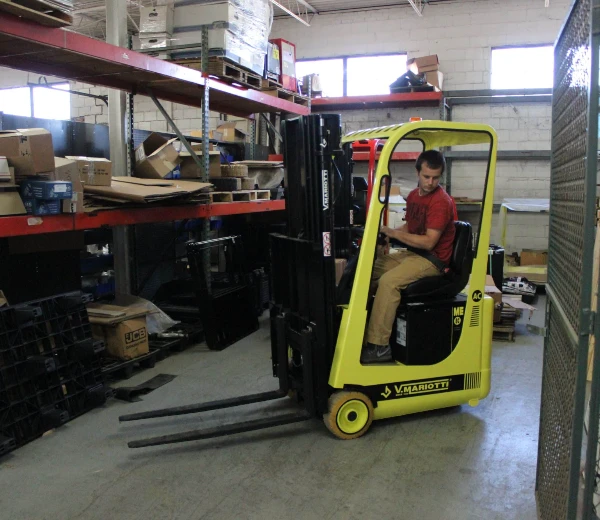

The ME AC Series is the go-to forklift if your production area is limited, if you need to work in narrow aisles, want integrated sideshift as a standard feature, need maneuverability, are looking for quality and dependability, and require the ability to lift up to 2,100 pounds.
Specs
| Model Number | Load Capacity | Width | Length | Height | Aisle Width Right Angle Stack** | Voltage |
|---|---|---|---|---|---|---|
| ME 8C | 1,500 lbs | 31.7" | 55" | 74.4" | 106.5" | 24 V |
| ME 10 | 1,950 lbs | 33.9" | 60.8" | 76.3" | 112.3" | 36 V |
| ME 10C | 1,950 lbs | 33.5" | 55" | 74.4" | 106.5" | 24 V |
| ME 12 | 2,100 lbs | 33.9" | 60.8" | 76.3" | 112.3" | 36 V |
| Model Number | Load Capacity |
|---|---|
| ME 8C | 1,500 lbs |
| ME 10 | 1,950 lbs |
| ME 10C | 1,950 lbs |
| ME 12 | 2,100 lbs |
| Model Number | Width |
|---|---|
| ME 8C | 31.7" |
| ME 10 | 33.9" |
| ME 10C | 33.5" |
| ME 12 | 33.9" |
| Model Number | Length |
|---|---|
| ME 8C | 55" |
| ME 10 | 60.8" |
| ME 10C | 55" |
| ME 12 | 60.8" |
| Model Number | Height |
|---|---|
| ME 8C | 74.4" |
| ME 10 | 76.3" |
| ME 10C | 74.4" |
| ME 12 | 76.3" |
| Model Number | Aisle Width Right Angle Stack** |
|---|---|
| ME 8C | 106.5" |
| ME 10 | 112.3" |
| ME 10C | 106.5" |
| ME 12 | 112.3" |
| Model Number | Voltage |
|---|---|
| ME 8C | 24 V |
| ME 10 | 36 V |
| ME 10C | 24 V |
| ME 12 | 36 V |
*Without forks
**Considers load length and 3″ clearance
***Based on 24″ load center. Product specifications may not reflect the most current product details. Authorized Mariotti dealers retain the most current product specifications. All specifications should be verified by an authorized Mariotti dealer prior to purchase.
Specifications
LOAD CAPACITY
MAXIMUM LIFT HEIGHT
WIDTH
Overview
The Mariotti ME AC Series forklift is a versatile truck featuring AC technology, integrated sideshift, and rear-wheel drive, with lifting capacities typically under 2,500 pounds and lift heights to 224 inches. The compact design and maneuverability make it ideal for light-duty material handling in confined areas like production lines, elevators and multi-level facilities.
Performance
- Rear-wheel drive
- Integrated sideshift as a standard feature
- Up to 224″ lift height
Ergonomics
- Fully adjustable seat
- Adjustable steering column
- Hydraulic operating levers
Safety Features
- Hydraulic brakes
- Two travel speeds, normal and slow
- Hydraulic operating levers
Ease of Service
- Accessible components through side panels
- Quick-Change Mast (QCM)
- Diagnostic software
- AC traction motor
- Hydraulic brakes
Options
