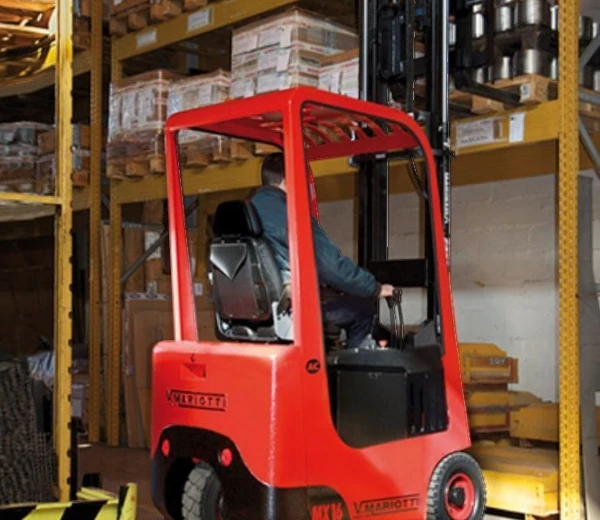

Mariotti MX Series Forklift
The MX Series is the Largest Forklift of the Mariotti Line
While still maintaining the compactness of a Mariotti forklift, the MX is the ‘Muscle’ of the group and is equipped with a 48-volt power supply and capacities of up to 3,000 pounds.
Specs
| Model Number | Load Capacity | Width | Length | Height | Lift Height | Aisle Width Right Angle Stack ** | Operating Voltage |
|---|---|---|---|---|---|---|---|
| MX 16 | 3,000 lbs | 39.2" | 63.6" | 78.2" | 243" | 115" | 48 V |
| MX 16 TURRET | 3,000 lbs | 47.2" | 63.6" | 78.2" | 117" | 115" | 48 V |
| Model Number | Load Capacity |
|---|---|
| MX 16 | 3,000 lbs |
| MX 16 TURRET | 3,000 lbs |
| Model Number | Width |
|---|---|
| MX 16 | 39.2" |
| MX 16 TURRET | 47.2" |
| Model Number | Length |
|---|---|
| MX 16 | 63.6" |
| MX 16 TURRET | 63.6" |
| Model Number | Height |
|---|---|
| MX 16 | 78.2" |
| MX 16 TURRET | 78.2" |
| Model Number | Lift Height |
|---|---|
| MX 16 | 243" |
| MX 16 TURRET | 117" |
| Model Number | Aisle Width Right Angle Stack ** |
|---|---|
| MX 16 | 115" |
| MX 16 TURRET | 115" |
| Model Number | Operating Voltage |
|---|---|
| MX 16 | 48 V |
| MX 16 TURRET | 48 V |
*Without Forks
**Considers load length and 3″ clearance
***Based on 24″ load center. Product specifications may not reflect the most current product details. Authorized Mariotti dealers retain the most current product specifications. All specifications should be verified by an authorized Mariotti dealer prior to purchase.
Overview
The MX Series offers a small chassis, technologically advanced electronics, a variety of mast options, and hydraulic rack and pinion power steering. Although this lift truck features compact simplicity, the MX is the power-house of the Mariotti line with a 48V power source and a lifting capacity of up to 3,000 pounds.
These forklifts come with standard, duplex, and triple mast options with a lifting height up to 243″. Other features include power steering, regenerative braking, integrated sideshift, adjustable steering wheel, amber strobe light, back-up alarm, emergency disconnect, and more!
Performance
- Narrow as 39.2″
- 118″ aisle width right angle stack (3″ clearance)
- Lifting heights up to 243”
- Rear wheel drive
Ergonomics
- Suspension seat with 3 adjustable positions
- Armrest
- Adjustable steering column
- Hydraulic operating levers
- Storage tray
Safety Features
- Overhead guard height of 78.2”
Ease of Service
- Full AC technology
Options
Related Products
Mariotti ME AC Series Forklift

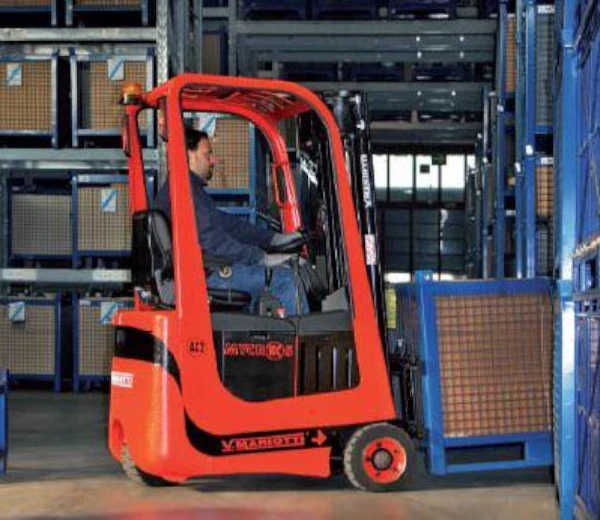

Mariotti Mycros AC Series Forklift
