Mariotti Mini Series Forklift
Perfect for your Small Space Needs

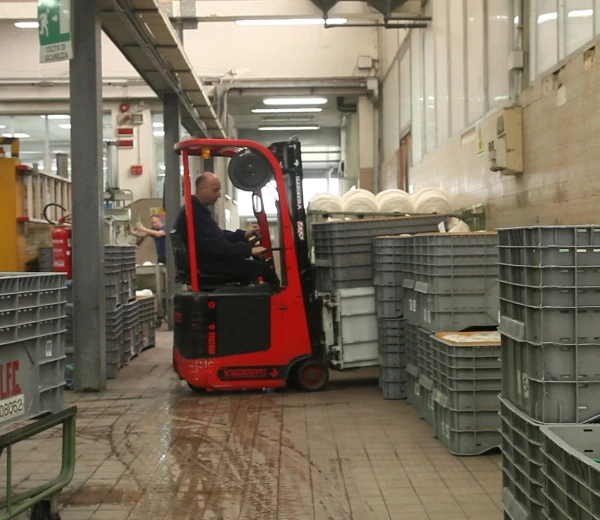

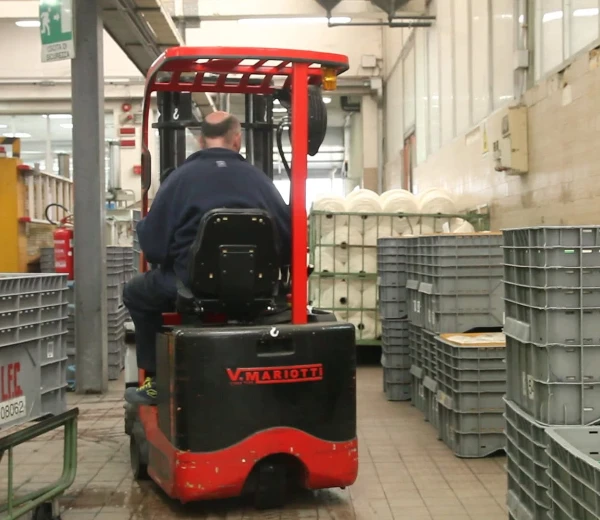

Mariotti’s Mini AC Series contains models considered the smallest compact riders in the world, with lift trucks as narrow as 34” wide. So small, these forklifts can be driven through a standard office doorway.
Specs
| Model Number | Load Capacity | Width | Length * | Height | Lift Height | Aisle Width Right Angle Stack ** | Voltage |
|---|---|---|---|---|---|---|---|
| MINI 4 | 750 lbs | 33.4" | 43" | 74.8" | 169" | 94.7" | 24 V |
| MINI 6 | 1,100 lbs | 33.4" | 43" | 74.8" | 169" | 94.7" | 24 V |
| Model Number | Load Capacity |
|---|---|
| MINI 4 | 750 lbs |
| MINI 6 | 1,100 lbs |
| Model Number | Width |
|---|---|
| MINI 4 | 33.4" |
| MINI 6 | 33.4" |
| Model Number | Length * |
|---|---|
| MINI 4 | 43" |
| MINI 6 | 43" |
| Model Number | Height |
|---|---|
| MINI 4 | 74.8" |
| MINI 6 | 74.8" |
| Model Number | Lift Height |
|---|---|
| MINI 4 | 169" |
| MINI 6 | 169" |
| Model Number | Aisle Width Right Angle Stack ** |
|---|---|
| MINI 4 | 94.7" |
| MINI 6 | 94.7" |
| Model Number | Voltage |
|---|---|
| MINI 4 | 24 V |
| MINI 6 | 24 V |
*Without forks
**Considers load length and 3″ clearance
***Based on 24″ load center. Product specifications may not reflect the most current product details. Authorized Mariotti dealers retain the most current product specifications. All specifications should be verified by an authorized Mariotti dealer prior to purchase.
Overview
The Mini AC Series forklifts boast numerous unique features, enabling them to operate in tight spaces inaccessible to other forklifts. Models in this series can be as small as 43″ long by 34″ wide and have a lifting capacity of 1100 pounds. Standard features include: power steering, integrated side shift, AC traction motor, electronic lifting control, and hydraulic brakes.
Seat and controls location are designed for the operator’s maximum comfort. The Mini AC features a 24V 375Ah battery to achieve optimum run time. The gearbox and the rack-and-pinion power steering system are exclusive designs of Mariotti.
Performance
- Rear-wheel drive
- 75″ lowered mast height
- Power steering
- Integrated side shift
- AC traction motor
- Electronic lifting control
- Hydraulic brakes
Ergonomics
- Adjustable backrest and driving position
- Adjustable steering column
Safety Features
- Panoramic rear view mirror
- Audible reverse warning signal
- Safety flashing beacon
- Rear LED lights
Ease of Service
- LCD panel to monitor operating hours, battery status, and operating mode
- CAN-bus technology and diagnostics
Options
Related Products

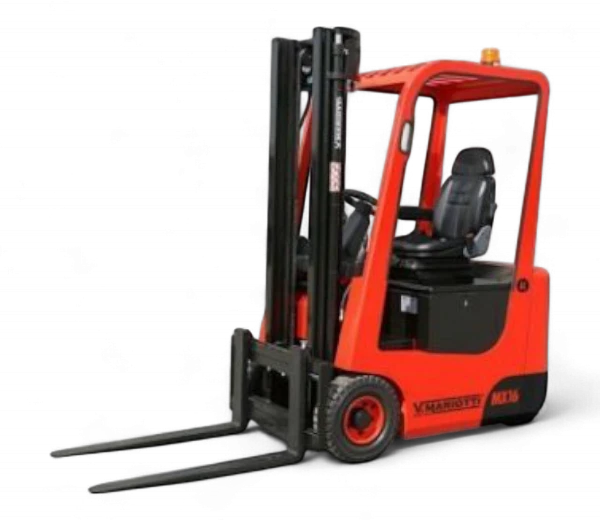

Mariotti MX Series Forklift
