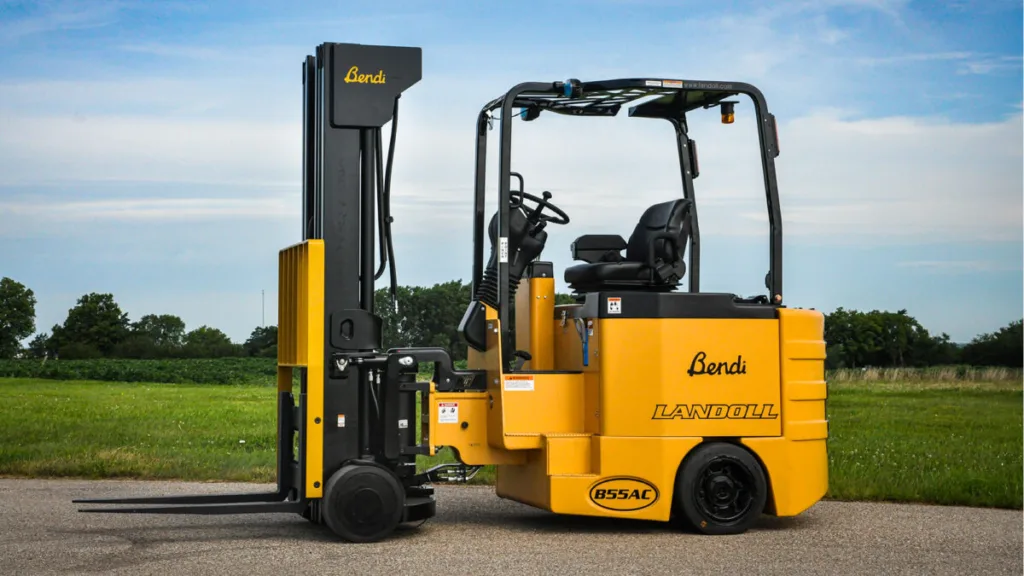

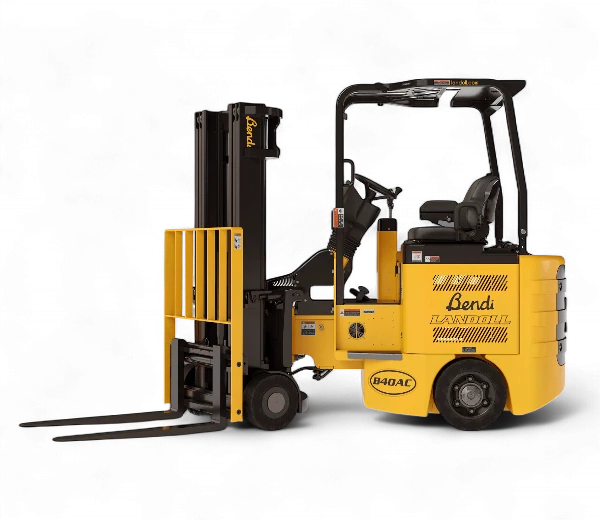

Bendi Multi-Purpose Articulating Electric Forklift

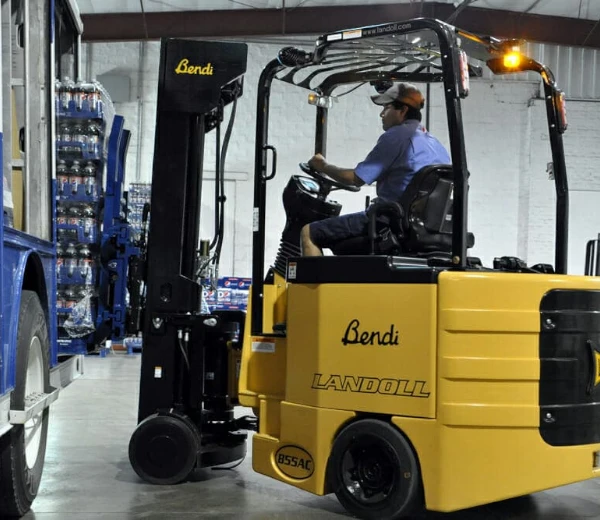

Excellent for Loading & Unloading Trailers and Containers
Bendi’s Multi-Purpose Articulating Electric Forklift Series works in aisles as narrow as 70″, has a base capacity starting at 3,000 pounds at 24″ load center, and can lift to 41 feet.
Specs
| Model Number | Load Capacity | Lift Heights | Overall Width | Minimum Aisle Width |
|---|---|---|---|---|
| B30AC | 3,000 lbs | 188- 272" | 43" | 70" |
| B40AC | 4,000 lbs | 188 – 374" | 48" | 70" |
| B40AC-HL | 4,400 lbs | 312 – 492" | 50" | 70" |
| B50AC-HL | 5,000 lbs | 312 – 492" | 54" | 76" |
| B55AC | 5,500 lbs | 188 – 360" | 56" | 78" |
| Model Number | Load Capacity |
|---|---|
| B30AC | 3,000 lbs |
| B40AC | 4,000 lbs |
| B40AC-HL | 4,400 lbs |
| B50AC-HL | 5,000 lbs |
| B55AC | 5,500 lbs |
| Model Number | Lift Heights |
|---|---|
| B30AC | 188- 272" |
| B40AC | 188 – 374" |
| B40AC-HL | 312 – 492" |
| B50AC-HL | 312 – 492" |
| B55AC | 188 – 360" |
| Model Number | Overall Width |
|---|---|
| B30AC | 43" |
| B40AC | 48" |
| B40AC-HL | 50" |
| B50AC-HL | 54" |
| B55AC | 56" |
| Model Number | Minimum Aisle Width |
|---|---|
| B30AC | 70" |
| B40AC | 70" |
| B40AC-HL | 70" |
| B50AC-HL | 76" |
| B55AC | 78" |
*Based on 24″ load center.
Product specifications may not reflect the most current product details. Authorized Landoll dealers retain the most current product specifications. All specifications should be verified by an authorized Landoll dealer prior to purchase.
Overview
The Bendi 4-wheel Multi-Purpose Articulating Forklift Series is equipped with dual independently driven rear-drive tires and soft-poly front load tires. Excellent traction, braking, and power enable climbing steep ramps with loads. Can operate indoors or outside on paved surfaces, thanks to their floating front axle, which allows the trucks to ride smoothly over uneven floors.
Three or four-stage masts are available.
Performance
- Dual rear wheel drive
- 48 V electrical system
- AC traction
- Integral 8″ stroke sideshifter
- Hydraulic motors
- Interactive LCD status monitor
Ergonomics
- Independently controlled rear wheels
- DuraSteer front wheel hydraulic steering
- Curtis AC controllers
Safety Features
- High visibility mast
- Creep speed mode
Ease of Service
- AC traction
- Hydraulic motors
- Interactive LCD status monitor
- Curtis AC controllers
Options
