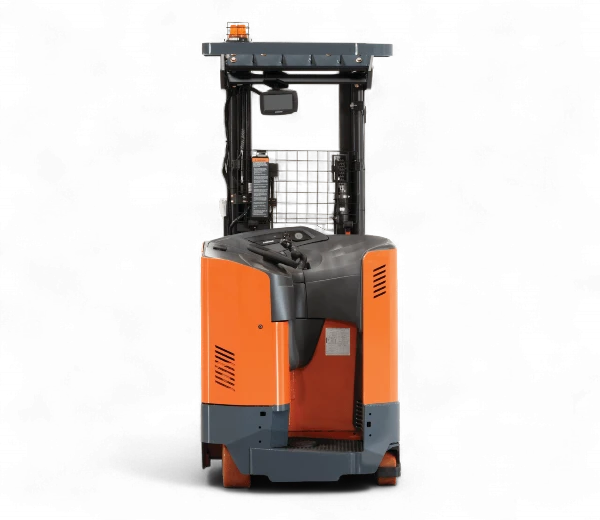

Toyota Reach Truck Forklift
Safety & Performance
With many unique features coupled with the longstanding productivity, ergonomics, and low cost of ownership you expect from an electric Toyota Forklift, the Reach Truck Series opens up new opportunities in warehouses and distribution centers.
This Series is designed for efficient material handling in narrow aisles, featuring AC drive and lift motors, and open-view masts for better operator visibility. Available in various models, including single and double-reach styles.
Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.
Specs
| Model Number | Load Capacity | Max. Fork Height | Max Free Lift | Max. Travel Speed Full Load | Reach Type | Reach Stroke | Voltage |
|---|---|---|---|---|---|---|---|
| RF1‐BE1X35 | 3,500 lbs | 270" | 73" | 6.5 mph | Single | 23" | 24 V |
| RF1‐BH1X35 | 3,500 lbs | 270" | 73" | 7.5 mph | Single | 23" | 36 V |
| RF1-SD1X35 | 3,500 lbs | 301" | 82" | 8 mph | Single | 23" | 36 V |
| RF1‐BE1X40 | 4,000 lbs | 270" | 73" | 6.5 mph | Single | 23" | 24 V |
| RF1‐BH1X40 | 4,000 lbs | 268" | 76" | 7.5 mph | Single | 23" | 36 V |
| RF1‐BH1X45 | 4,500 lbs | 372" | 118" | 7.5 mph | Single | 23" | 36 V |
| RF1-SD1X45 | 4,500 lbs | 372" | 111" | 8 mph | Single | 23" | 36 V |
| RF1-SD1Z45 | 4,500 lbs | 372" | 117" | 8 mph | Single | 23" | 36 V |
| RF1-HP1X45 | 4,500 lbs | 444" | 135" | 8 mph | Single | 23" | 36 V |
| RF1-HP1Z45 | 4,500 lbs | 444" | 135" | 8 mph | Single | 23" | 36 V |
| RF1‐BH2X25 | 2,500 lbs | 252" | 76" | 7.5 mph | Double | 42" | 36 V |
| RF1‐BE2X25 | 2,500 lbs | 264" | 80" | 6.5 mph | Double | 42" | 24 V |
| RF1‐BH2X30 | 3,000 lbs | 372" | 122" | 7.5 mph | Double | 42" | 36 V |
| RF1-SD2X32 | 3,200 lbs | 372" | 115" | 8 mph | Double | 42" | 36 V |
| RF1-SD2Z32 | 3,200 lbs | 372" | 121" | 8 mph | Double | 42" | 36 V |
| RF1-HP2X32 | 3,200 lbs | 444" | 139" | 8 mph | Double | 42" | 36 V |
| RF1-HP2Z32 | 3,200 lbs | 444" | 139" | 8 mph | Double | 42" | 36 V |
| Model Number | Load Capacity |
|---|---|
| RF1‐BE1X35 | 3,500 lbs |
| RF1‐BH1X35 | 3,500 lbs |
| RF1-SD1X35 | 3,500 lbs |
| RF1‐BE1X40 | 4,000 lbs |
| RF1‐BH1X40 | 4,000 lbs |
| RF1‐BH1X45 | 4,500 lbs |
| RF1-SD1X45 | 4,500 lbs |
| RF1-SD1Z45 | 4,500 lbs |
| RF1-HP1X45 | 4,500 lbs |
| RF1-HP1Z45 | 4,500 lbs |
| RF1‐BH2X25 | 2,500 lbs |
| RF1‐BE2X25 | 2,500 lbs |
| RF1‐BH2X30 | 3,000 lbs |
| RF1-SD2X32 | 3,200 lbs |
| RF1-SD2Z32 | 3,200 lbs |
| RF1-HP2X32 | 3,200 lbs |
| RF1-HP2Z32 | 3,200 lbs |
| Model Number | Max. Fork Height |
|---|---|
| RF1‐BE1X35 | 270" |
| RF1‐BH1X35 | 270" |
| RF1-SD1X35 | 301" |
| RF1‐BE1X40 | 270" |
| RF1‐BH1X40 | 268" |
| RF1‐BH1X45 | 372" |
| RF1-SD1X45 | 372" |
| RF1-SD1Z45 | 372" |
| RF1-HP1X45 | 444" |
| RF1-HP1Z45 | 444" |
| RF1‐BH2X25 | 252" |
| RF1‐BE2X25 | 264" |
| RF1‐BH2X30 | 372" |
| RF1-SD2X32 | 372" |
| RF1-SD2Z32 | 372" |
| RF1-HP2X32 | 444" |
| RF1-HP2Z32 | 444" |
| Model Number | Max Free Lift |
|---|---|
| RF1‐BE1X35 | 73" |
| RF1‐BH1X35 | 73" |
| RF1-SD1X35 | 82" |
| RF1‐BE1X40 | 73" |
| RF1‐BH1X40 | 76" |
| RF1‐BH1X45 | 118" |
| RF1-SD1X45 | 111" |
| RF1-SD1Z45 | 117" |
| RF1-HP1X45 | 135" |
| RF1-HP1Z45 | 135" |
| RF1‐BH2X25 | 76" |
| RF1‐BE2X25 | 80" |
| RF1‐BH2X30 | 122" |
| RF1-SD2X32 | 115" |
| RF1-SD2Z32 | 121" |
| RF1-HP2X32 | 139" |
| RF1-HP2Z32 | 139" |
| Model Number | Max. Travel Speed Full Load |
|---|---|
| RF1‐BE1X35 | 6.5 mph |
| RF1‐BH1X35 | 7.5 mph |
| RF1-SD1X35 | 8 mph |
| RF1‐BE1X40 | 6.5 mph |
| RF1‐BH1X40 | 7.5 mph |
| RF1‐BH1X45 | 7.5 mph |
| RF1-SD1X45 | 8 mph |
| RF1-SD1Z45 | 8 mph |
| RF1-HP1X45 | 8 mph |
| RF1-HP1Z45 | 8 mph |
| RF1‐BH2X25 | 7.5 mph |
| RF1‐BE2X25 | 6.5 mph |
| RF1‐BH2X30 | 7.5 mph |
| RF1-SD2X32 | 8 mph |
| RF1-SD2Z32 | 8 mph |
| RF1-HP2X32 | 8 mph |
| RF1-HP2Z32 | 8 mph |
| Model Number | Reach Type |
|---|---|
| RF1‐BE1X35 | Single |
| RF1‐BH1X35 | Single |
| RF1-SD1X35 | Single |
| RF1‐BE1X40 | Single |
| RF1‐BH1X40 | Single |
| RF1‐BH1X45 | Single |
| RF1-SD1X45 | Single |
| RF1-SD1Z45 | Single |
| RF1-HP1X45 | Single |
| RF1-HP1Z45 | Single |
| RF1‐BH2X25 | Double |
| RF1‐BE2X25 | Double |
| RF1‐BH2X30 | Double |
| RF1-SD2X32 | Double |
| RF1-SD2Z32 | Double |
| RF1-HP2X32 | Double |
| RF1-HP2Z32 | Double |
| Model Number | Reach Stroke |
|---|---|
| RF1‐BE1X35 | 23" |
| RF1‐BH1X35 | 23" |
| RF1-SD1X35 | 23" |
| RF1‐BE1X40 | 23" |
| RF1‐BH1X40 | 23" |
| RF1‐BH1X45 | 23" |
| RF1-SD1X45 | 23" |
| RF1-SD1Z45 | 23" |
| RF1-HP1X45 | 23" |
| RF1-HP1Z45 | 23" |
| RF1‐BH2X25 | 42" |
| RF1‐BE2X25 | 42" |
| RF1‐BH2X30 | 42" |
| RF1-SD2X32 | 42" |
| RF1-SD2Z32 | 42" |
| RF1-HP2X32 | 42" |
| RF1-HP2Z32 | 42" |
| Model Number | Voltage |
|---|---|
| RF1‐BE1X35 | 24 V |
| RF1‐BH1X35 | 36 V |
| RF1-SD1X35 | 36 V |
| RF1‐BE1X40 | 24 V |
| RF1‐BH1X40 | 36 V |
| RF1‐BH1X45 | 36 V |
| RF1-SD1X45 | 36 V |
| RF1-SD1Z45 | 36 V |
| RF1-HP1X45 | 36 V |
| RF1-HP1Z45 | 36 V |
| RF1‐BH2X25 | 36 V |
| RF1‐BE2X25 | 24 V |
| RF1‐BH2X30 | 36 V |
| RF1-SD2X32 | 36 V |
| RF1-SD2Z32 | 36 V |
| RF1-HP2X32 | 36 V |
| RF1-HP2Z32 | 36 V |
* Based on 24″ load center
** Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer representative prior to purchase.
Specifications
LOAD CAPACITY
FULL LOAD TRAVEL SPEED
MAXIMUM FORK HEIGHT
Overview
With world-class engineering and dependability, Toyota’s Reach Forklift Series is the perfect solution for your warehouse. These Reach Trucks come in single and double-reach models to help you utilize your warehouse space more efficiently. Choose between 24-volt or 36-volt power, as well as battery compartments ranging from 14.5 to 21.5″ in length.
With longer maintenance intervals and over 500 engineering improvements, a Toyota Reach Truck is the elite warehouse solution.
Performance
- 24/36 V
- UL-E rating
- AC-powered drive system with torque control
- AC hydraulic system
- Interactive digital display panel
- 180° electronic power steering
- Wide-view 3-stage mast (FSV)
Ergonomics
- Cushioned kneepad, padded floor, brake pedal
- Ergonomically-angled floorboard
- Integrated clipboard, amenities tray, cup holder
- High-visibility overhead guard
- Safety glass mast guard
- Comfort-padded lean points
Safety Features
- High visibility overhead guard
- Electric horn
- Emergency power disconnect switch
- Anti-static ground strap
Ease of Service
- Battery compartment rollers
- Adjustable battery retaining gates
- Self diagnostics
- Built-in analyzer
- Self-adjusting electric disc brake
- Key switch
- Battery discharge indicator with lift interrupt
Options
