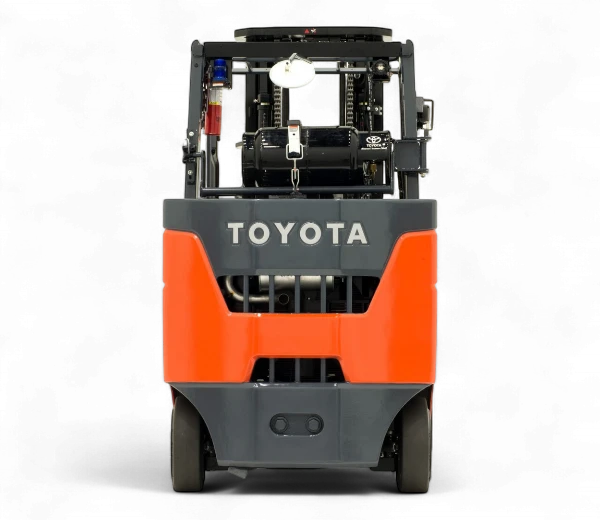

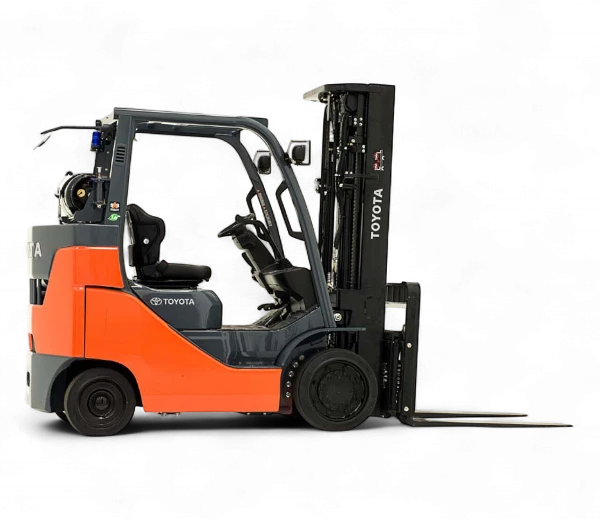

Toyota Box Car Special Forklift
For High-Capacity Lifting in Confined Spaces, such as Inside Railcars
The Toyota Box Car Special Forklift is an industry-leading solution for material handling within railcars. With a taller counterweight, the Box Car Special can navigate tight spaces while maintaining a high lift capacity. Also popular in specialty applications that require higher-capacity lifts in tighter spaces, the Box Car Special is a specialty forklift that opens new opportunities in racking, space planning, and shipping.
Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.
Specs
| Model Number | Load Capacity | Width | Height | Max Fork Height | Lift Speed | Gradeability | Fuel |
|---|---|---|---|---|---|---|---|
| 8FGC35U-BCS | 8,000 lbs | 56" | 81" | 160" | 100 fpm | 19 % | LPG |
| 8FGC45U-BCS | 10,000 lbs | 56" | 81" | 160" | 98 fpm | 16 % | LPG |
| 8FGC55U-BCS | 12,000 lbs | 56" | 81" | 160" | 91 fpm | 19 % | LPG |
| Model Number | Load Capacity |
|---|---|
| 8FGC35U-BCS | 8,000 lbs |
| 8FGC45U-BCS | 10,000 lbs |
| 8FGC55U-BCS | 12,000 lbs |
| Model Number | Width |
|---|---|
| 8FGC35U-BCS | 56" |
| 8FGC45U-BCS | 56" |
| 8FGC55U-BCS | 56" |
| Model Number | Height |
|---|---|
| 8FGC35U-BCS | 81" |
| 8FGC45U-BCS | 81" |
| 8FGC55U-BCS | 81" |
| Model Number | Max Fork Height |
|---|---|
| 8FGC35U-BCS | 160" |
| 8FGC45U-BCS | 160" |
| 8FGC55U-BCS | 160" |
| Model Number | Lift Speed |
|---|---|
| 8FGC35U-BCS | 100 fpm |
| 8FGC45U-BCS | 98 fpm |
| 8FGC55U-BCS | 91 fpm |
| Model Number | Gradeability |
|---|---|
| 8FGC35U-BCS | 19 % |
| 8FGC45U-BCS | 16 % |
| 8FGC55U-BCS | 19 % |
| Model Number | Fuel |
|---|---|
| 8FGC35U-BCS | LPG |
| 8FGC45U-BCS | LPG |
| 8FGC55U-BCS | LPG |
*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer representative prior to purchase.
Overview
The Toyota Box Car Special is a specialty forklift designed for material handling in tight spaces, particularly inside railcars, due to its compact, vertically higher counterweight that allows for high load capacities. Key features include strong lifting capacity, optimized maneuverability in confined areas, and features to enhance safety and operator comfort. It is suitable for applications like railcar unloading, die changing, and moving heavy machinery, where standard forklifts may not fit.
Performance
- EPA/CARB-certified engine
- Distributor-less ignition system
- UL Approved Model Type “LP”
- Full-floating powertrain
- Alternator with built-in regulator
- Automatic transmission with oil cooler
- LCD multi-function display
- Electric shift control
- Front & rear treaded cushion tires
- Wide tread
Ergonomics
- Dash-mounted instrument display
- 2-spoke steering wheel
- Load-sensing power steering
- Cowl-mounted hydraulic control levers with rubber boot covers
- Dual operator assist grips
- Low, wide entry steps
- Vinyl 4-way adjustable full-suspension seat
- Oversized cup holder
- Non-cinching seatbelt
- One-way automatic fork leveling
- Double-action hand parking brake
- Integrated headlight & turn signal lever
Safety Features
- System of Active Stability (SAS)
- Operator Presence Sensing System (OPSS)
- Bolt-on overhead guard
- Key lowering interlock
- Electric horn
- Neutral start safety switch
- LED headlights
- Orange forks
- Asbestos-free components
- Key off/headlight off system
- Speed control
Ease of Service
- Tool-less floorboard
- Engine hood assist damper with lock device
- Air cleaner discharge valve
- Easy-lift engine hood with wide 75° opening
- Easy access to common service items such as filters & dipsticks
- Engine protection system
Options
