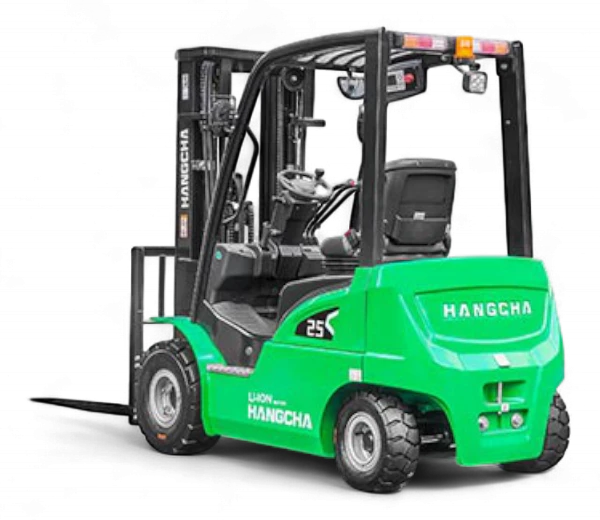

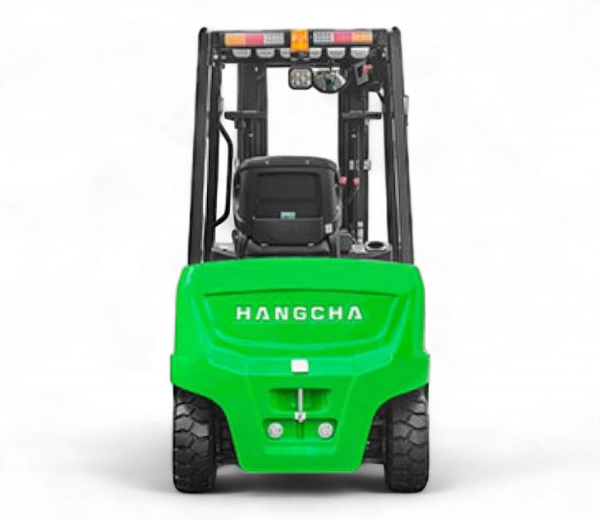

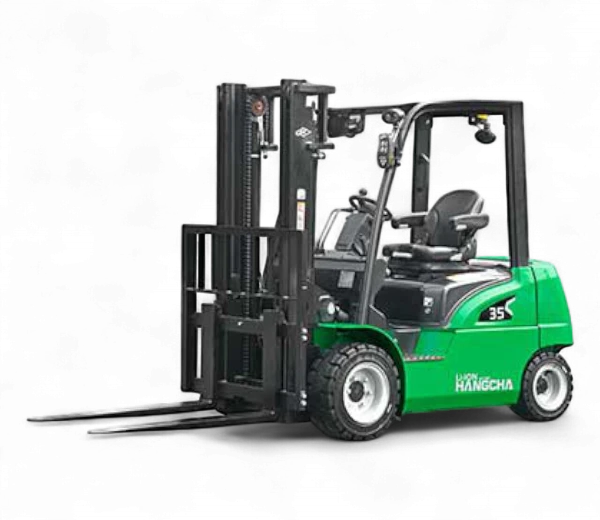

Hangcha XC Series Core Electric Outdoor Lithium-Ion Forklift
3-Wheel Electric
Thanks to lithium-ion technology, this forklift features opportunity charging. This means the forklift can operate through multiple shifts, charging during breaks, without requiring hours-long recharging stops. Combined with regenerative braking during deceleration, the powertrain is designed for efficiency. The forklift also comes standard with a high-power pump motor and a low-noise gear pump. The high-power AC hydraulic system is highly efficient. It features protection functions and built-in speed and temperature sensors, enhancing the hydraulic system’s reliability and lifespan.
Specs
| Model Number | Load Capacity | Width | Height | Max Fork Height | Max Full Load Lift Speed | Max Full Load Gradeability |
|---|---|---|---|---|---|---|
| FB20Li | 4,000 lbs | 49" | 82" | 159" | 88 fpm | 20% |
| FB25Li | 5,000 lbs | 49" | 82" | 159" | 85 fpm | 20% |
| FB30Li | 6,000 lbs | 49" | 82" | 163" | 77 fpm | 20% |
| FB35Li | 7,000 lbs | 51" | 82" | 163" | 73 fpm | 20% |
| Model Number | Load Capacity |
|---|---|
| FB20Li | 4,000 lbs |
| FB25Li | 5,000 lbs |
| FB30Li | 6,000 lbs |
| FB35Li | 7,000 lbs |
| Model Number | Width |
|---|---|
| FB20Li | 49" |
| FB25Li | 49" |
| FB30Li | 49" |
| FB35Li | 51" |
| Model Number | Height |
|---|---|
| FB20Li | 82" |
| FB25Li | 82" |
| FB30Li | 82" |
| FB35Li | 82" |
| Model Number | Max Fork Height |
|---|---|
| FB20Li | 159" |
| FB25Li | 159" |
| FB30Li | 163" |
| FB35Li | 163" |
| Model Number | Max Full Load Lift Speed |
|---|---|
| FB20Li | 88 fpm |
| FB25Li | 85 fpm |
| FB30Li | 77 fpm |
| FB35Li | 73 fpm |
| Model Number | Max Full Load Gradeability |
|---|---|
| FB20Li | 20% |
| FB25Li | 20% |
| FB30Li | 20% |
| FB35Li | 20% |
*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Hangcha dealers retain the most current product specifications. All specifications should be verified by an authorized Hangcha dealer prior to purchase.
Overview
The Hangcha XC Series Core Electric forklift is a line of high-performance lift trucks powered by integrated, maintenance-free lithium-iron-phosphate (LiFePO4) batteries. Designed as a robust alternative to traditional internal combustion (IC) forklifts, these machines offer high power, operational efficiency, and a low total cost of ownership.
Performance
- Floating suspension system
- MOSFET integrated control system
- High-power AC traction motor
Ergonomics
- 50% larger operating space than a traditional electric forklift
- 4.33” true color instrument panel above operator’s head
- Adjustable steering wheel
- Adjustable seat moves back and forth by 8.3”
- Wide-view mast
- Large brake pedal and regenerative braking
Safety Features
- Meets ANSI and ITSDF safety standards
- Emergency cut-out switch
- Overloading protection system
- Controller automatically reduces the forklift’s speed while cornering
Ease of Service
- Fully-sealed maintenance hatch, controllers, motors, and electrical components
- Maintenance hatch can be opened at a large angle to allow for easy access
Options
