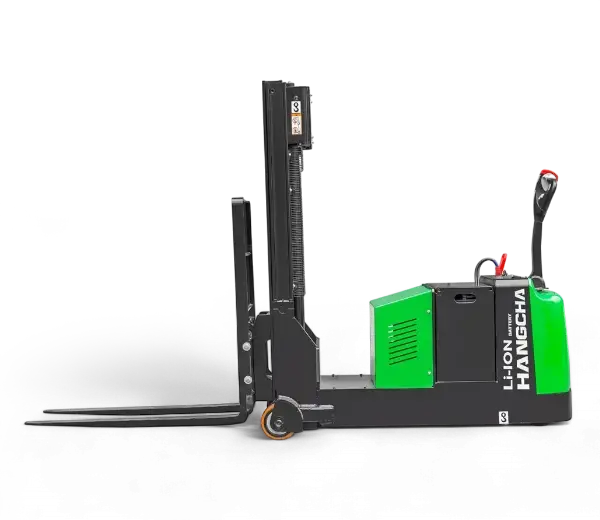

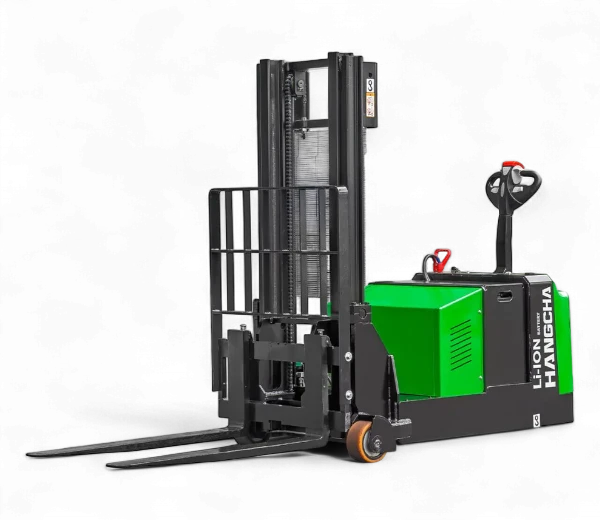

Hangcha A Series Industrial Lithium Ion Counterbalanced Walkie Stacker
Compact for Efficient Material Handling in Tight Spaces
The A Series Counterbalanced Walkie Stacker is designed to go where all general walkie stackers do. However, the counterbalanced stacker is unique because it is also designed for operations that use enclosed pallets. The design makes moving enclosed pallets easier by allowing for the limited clearance on the pallet. Ideal for loading and unloading in warehouses, supermarkets, and workshops.
Specs
| Model Number | Load Capacity | Width | Height | Max Fork Height | Lift Speed | Travel Speed | Voltage |
|---|---|---|---|---|---|---|---|
| WCS09Li | 2,000 lbs | 35" | 75" | 106" | 30 fpm | 3.4 mph | 24 V |
| WCS14Li | 3,000 lbs | 35" | 75" | 106" | 28 fpm | 3.4 mph | 24 V |
| WCS18Li | 4,000 lbs | 35" | 75" | 106" | 25 fpm | 3.4 mph | 24 V |
| Model Number | Load Capacity |
|---|---|
| WCS09Li | 2,000 lbs |
| WCS14Li | 3,000 lbs |
| WCS18Li | 4,000 lbs |
| Model Number | Width |
|---|---|
| WCS09Li | 35" |
| WCS14Li | 35" |
| WCS18Li | 35" |
| Model Number | Height |
|---|---|
| WCS09Li | 75" |
| WCS14Li | 75" |
| WCS18Li | 75" |
| Model Number | Max Fork Height |
|---|---|
| WCS09Li | 106" |
| WCS14Li | 106" |
| WCS18Li | 106" |
| Model Number | Lift Speed |
|---|---|
| WCS09Li | 30 fpm |
| WCS14Li | 28 fpm |
| WCS18Li | 25 fpm |
| Model Number | Travel Speed |
|---|---|
| WCS09Li | 3.4 mph |
| WCS14Li | 3.4 mph |
| WCS18Li | 3.4 mph |
| Model Number | Voltage |
|---|---|
| WCS09Li | 24 V |
| WCS14Li | 24 V |
| WCS18Li | 24 V |
*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Hangcha dealers retain the most current product specifications. All specifications should be verified by an authorized Hangcha dealer prior to purchase.
Overview
The A Series Walkie Stacker’s counterbalanced design makes it uniquely suited to handling enclosed pallets and operations with limited clearance, while safety features such as the soft landing system and automatic speed reduction enhance security for both operators and goods. Other benefits include high residual load capacity, electric power steering, and a design that simplifies maintenance.
Performance
- Stepless speed regulation
- Electric Power Steering (EPS)
- Brushless AC travel motor
- CURTIS AC control system
- Regenerative braking
- Forks and load backrest with backward and forward tilt function
Ergonomics
- Step-less speed
- Creep speed function
- Compact body and large rounded corners
- Power plug is fastened to the stacker’s body
- All operations can be completed with one hand
- Wide-view field
- Low noise and vibration
- Power plug is fastened to the stacker’s body
Safety Features
- Travel speed is lowered automatically when the forks are past specific height
- Steering angle increases, truck’s speed decreases
- 3 braking functions include release, reverse, and emergency
- Anti-sliding function
- Emergency reversing button
- Soft landing function reduces the mast’s lowering speed
Ease of Service
- Integrated battery indicator meter, timer, and fault self-diagnosis
- Fully openable back cover
- Protected wires and cables
- Easy access maintenance hatch
- Non-contact proximity switch
