Toyota Industrial Walkie Stacker
Ideal for Warehouses with Limited Space
When a traditional forklift isn’t necessary but lifting product above a second-tier rack is, the Toyota Walkie Stacker is a cost-efficient, easy-to-use solution. With top-of-the-line durability and long-run performance, the Industrial Walkie Stacker is an economical complement to nearly any forklift fleet.
Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.
Specs
| Model Number | Load Capacity | Max. Travel Speed Full Load | Max. Lift Speed Full Load | Max. Gradeability Full Load | Basic Right Angle Stack** |
|---|---|---|---|---|---|
| 6BWS11 | 2,200 lbs | 2.9 mph | 32 fpm | 6% | 81" |
| 6BWS15 | 3,000 lbs | 2.9 mph | 32 fpm | 6% | 85" |
| 6BWS20 | 4,000 lbs | 2.6 mph | 27 fpm | 6% | 88" |
| Model Number | Load Capacity |
|---|---|
| 6BWS11 | 2,200 lbs |
| 6BWS15 | 3,000 lbs |
| 6BWS20 | 4,000 lbs |
| Model Number | Max. Travel Speed Full Load |
|---|---|
| 6BWS11 | 2.9 mph |
| 6BWS15 | 2.9 mph |
| 6BWS20 | 2.6 mph |
| Model Number | Max. Lift Speed Full Load |
|---|---|
| 6BWS11 | 32 fpm |
| 6BWS15 | 32 fpm |
| 6BWS20 | 27 fpm |
| Model Number | Max. Gradeability Full Load |
|---|---|
| 6BWS11 | 6% |
| 6BWS15 | 6% |
| 6BWS20 | 6% |
| Model Number | Basic Right Angle Stack** |
|---|---|
| 6BWS11 | 81" |
| 6BWS15 | 85" |
| 6BWS20 | 88" |
*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer representative prior to purchase.
Specifications
LOAD CAPACITY
FULL LOAD TRAVEL SPEED
VOLTAGE
Overview
Toyota’s Industrial Walkie Stacker offers benefits such as maneuverability in tight spaces, ergonomic controls to reduce operator fatigue, durability and rugged construction, and safety features such as a reversing switch and a high-visibility mast. It provides an efficient, electric-powered solution for lifting and moving loads without the bulk of a traditional forklift, making it ideal for warehouses with limited space.
Performance
- 24 V electrical system
- Programmable controller
- On/off key switch
- UL Approved Type “E” Construction
Ergonomics
- Automatic resetting circuit breaker
- Reverse polarity protection contactor
- Mechanical drum brake
- Directional thumb control
- Direction reverse switch in control handle
- Power on self test
Safety Features
- Electric horn
- High-visibility mast
- Emergency power disconnect switch
- Safety glass mast guard
Ease of Service
- Easy-access service cover
- Large battery compartment
- SB-175 red connector
Options
Related Products
Toyota Walkie Stacker Forklift
Toyota Counterbalanced Stacker

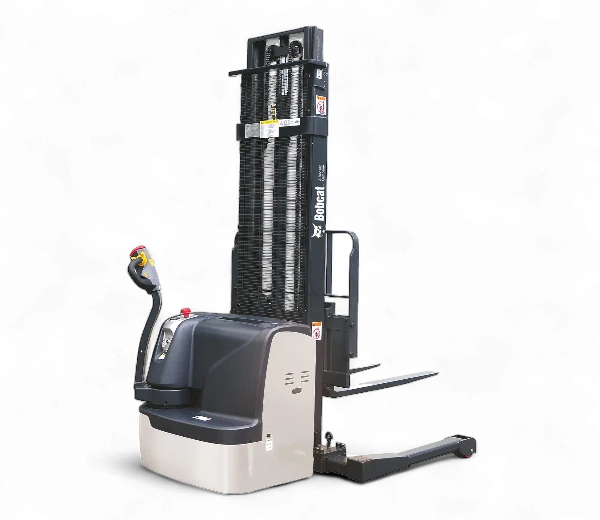

Bobcat 7 Series Walkie Stacker
