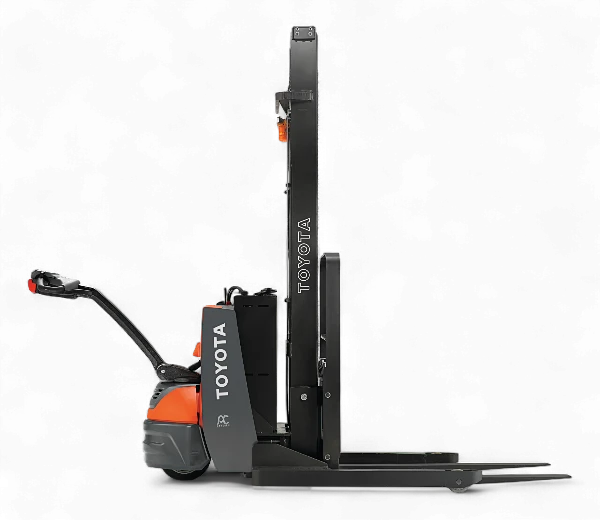

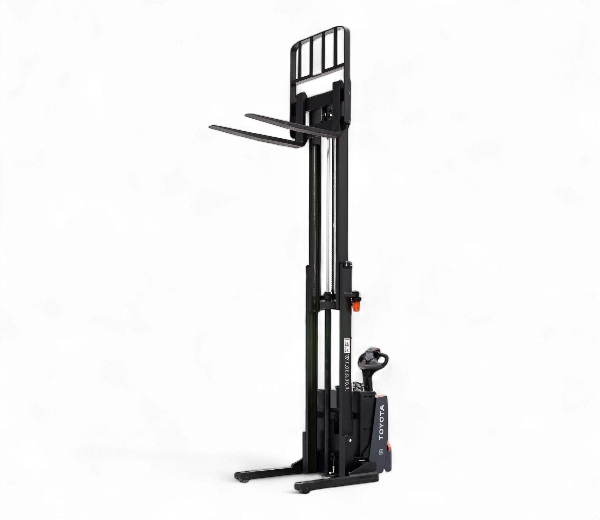

Toyota Walkie Stacker
Light-Duty Indoor Material Handling
Toyota’s industry-leading Walkie Stacker includes adjustable base legs to accommodate various pallet sizes and aisle widths. The versatility of this walk-behind forklift makes it a strong complement to nearly any indoor application.
Extremely durable and budget-friendly, the Toyota Walkie Stacker can help increase both your uptime and your bottom line.
Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.
Specs
| Model Number | Load Capacity | Max. Travel Speed Full Load | Max. Lift Speed Full Load | Max. Gradeability Full Load | Basic Right Angle Stack** |
|---|---|---|---|---|---|
| 8BWS10 | 2,000 lbs | 3.4 mph | 20 – 53 fpm | 6% | 86.7" |
| 8BWS13 | 2,500 lbs | 3.4 mph | 19 – 54 fpm | 10% | 86.7" |
| Model Number | Load Capacity |
|---|---|
| 8BWS10 | 2,000 lbs |
| 8BWS13 | 2,500 lbs |
| Model Number | Max. Travel Speed Full Load |
|---|---|
| 8BWS10 | 3.4 mph |
| 8BWS13 | 3.4 mph |
| Model Number | Max. Lift Speed Full Load |
|---|---|
| 8BWS10 | 20 – 53 fpm |
| 8BWS13 | 19 – 54 fpm |
| Model Number | Max. Gradeability Full Load |
|---|---|
| 8BWS10 | 6% |
| 8BWS13 | 10% |
| Model Number | Basic Right Angle Stack** |
|---|---|
| 8BWS10 | 86.7" |
| 8BWS13 | 86.7" |
*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer representative prior to purchase.
Specifications
LOAD CAPACITY
FULL LOAD TRAVEL SPEED
VOLTAGE
Overview
Toyota’s Walkie Stackers offer benefits like improved efficiency and versatility, thanks to their compact size, maneuverability, and features for tight spaces. Key advantages include rugged, durable construction for reliability, and features like the “click-to-creep” function for low-speed control.
Its ergonomic handle, with fingertip controls and programmable performance, also reduces operator fatigue.
Performance
- 24 V electrical system
- AC drive motor
- Class ‘F’ motor insulation
- Transistor drive control system (MOSFET)
- CAN bus communication
- Regenerative braking
- 32 –51″ straddle openings available
Ergonomics
- Multifunction control handle
- Angled hand grips
- Fingertip control of all functions
- Directional thumb wheels
- Programmable neutral speed reduction
- Direction reverse switch
- 182º steering arc
- Click-to-creep travel function
Safety Features
- Battery discharge indicator & correction with lift interrupt
- Electric horn
- Rugged, all-steel frame construction
- Heavy duty bumpers
- Emergency power disconnect switch
- Safety glass mast guard
Ease of Service
- One-piece high-strength service cover
- Error indicator with self-diagnostics
- Bolt-on mast mounting
- Programmable performance
- Programmable service indicator
- Large battery compartment
Options
