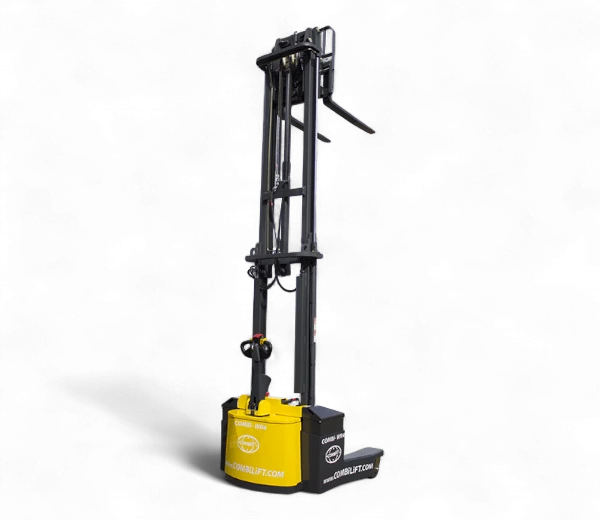

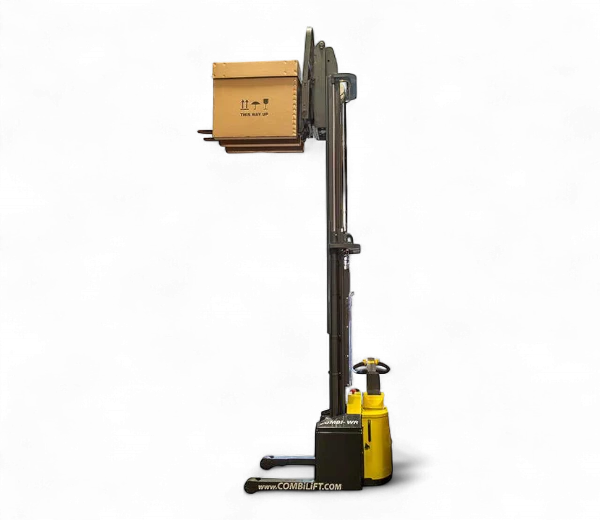

Combilift Walk-Behind Reach Stacker
Patented Multi-Position Tiller
The Combilift Combi-WR Series is an award-winning pedestrian reach stacker designed for high-density warehousing, known for its ability to operate in very narrow aisles, its patented multi-position tiller arm for enhanced safety and visibility, and its multidirectional capability for handling both pallets and long loads.
The multi-position tiller allows the operator to rotate the rear wheel, enabling them to stand to the side of the unit while working in a narrow aisle, providing a much clearer view of the load and forks and keeping them out of the crush zone.
Specs
| Model Number | Load Capacity | Maximum Lift Height | Maximum Ground Speed | Overall Width | Multi-directional Travel |
|---|---|---|---|---|---|
| COMBI-WR | 3,100 lbs | 192" | 5.75 mph | 52" | No |
| COMBI-WR4 | 3,100 lbs | 193" | 5.75 mph | 59.5" | Yes |
| Model Number | Load Capacity |
|---|---|
| COMBI-WR | 3,100 lbs |
| COMBI-WR4 | 3,100 lbs |
| Model Number | Maximum Lift Height |
|---|---|
| COMBI-WR | 192" |
| COMBI-WR4 | 193" |
| Model Number | Maximum Ground Speed |
|---|---|
| COMBI-WR | 5.75 mph |
| COMBI-WR4 | 5.75 mph |
| Model Number | Overall Width |
|---|---|
| COMBI-WR | 52" |
| COMBI-WR4 | 59.5" |
| Model Number | Multi-directional Travel |
|---|---|
| COMBI-WR | No |
| COMBI-WR4 | Yes |
*Based on 24″ load center at 125″ lift height
Product specifications may not reflect the most current product details. Authorized Combilift dealers retain the most current product specifications. All specifications should be verified by an authorized Combilift dealer prior to purchase.
Overview
A Combilift Walk-Behind Reach Stacker is a multidirectional walkie stacker that offers benefits like optimized aisle use, versatility for various load types, and enhanced safety. Its key advantages include the ability to handle long, palletized loads in narrow spaces, reducing the need for multiple machines and improving overall productivity.
Performance
- Pantograph
- AC motor technology
- Multi-directional
- Rear wheel drive
- 3″ left & right side shift
- Patented multi-position tiller arm
Ergonomics
- Rabbit/turtle switch capabilities to manage speed
- Power steering
Safety Features
- Multi-directional tiller arm
- Full load visibility
- Rabbit/turtle switch to manage speed
Ease of Service
- Maneuver in aisles narrower than 7′
- Pantographic operation
Options
Related Products
Toyota Multidirectional Reach Truck Forklift

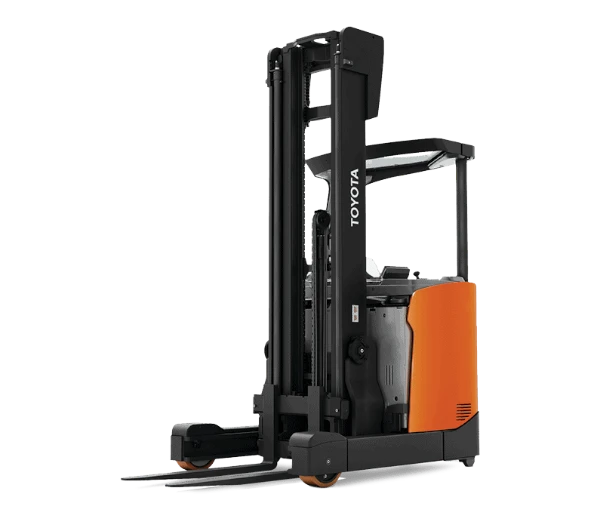

Toyota Moving Mast Reach Truck Forklift

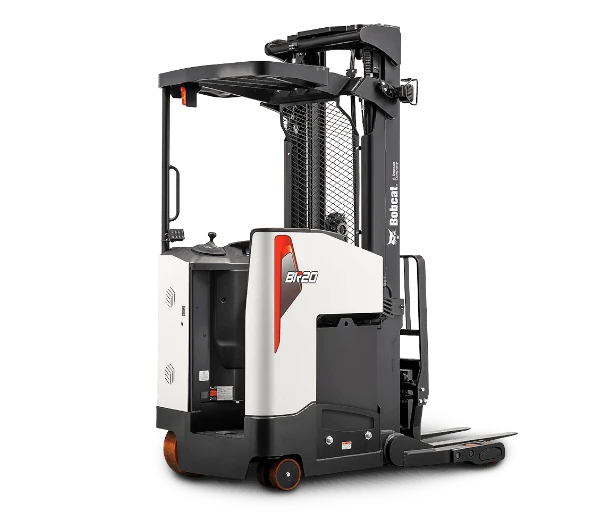

Bobcat 7 Series PLUS Reach Truck Forklift

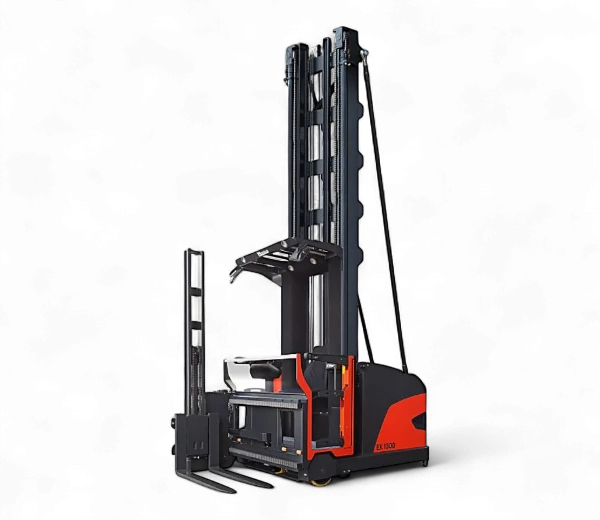

Steinbock EK Man-Up Picker Turret Truck Forklift
