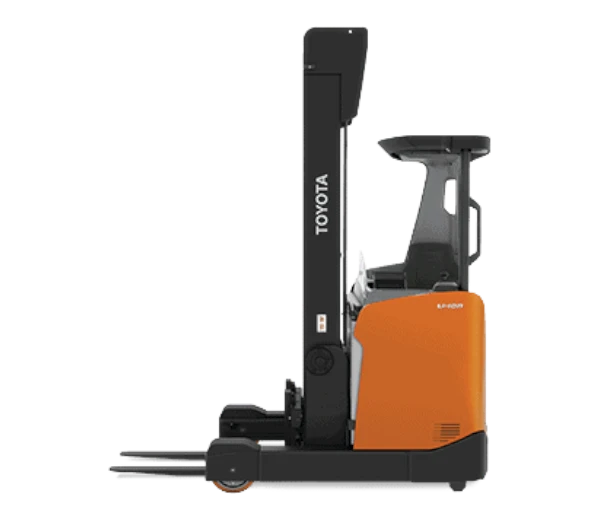

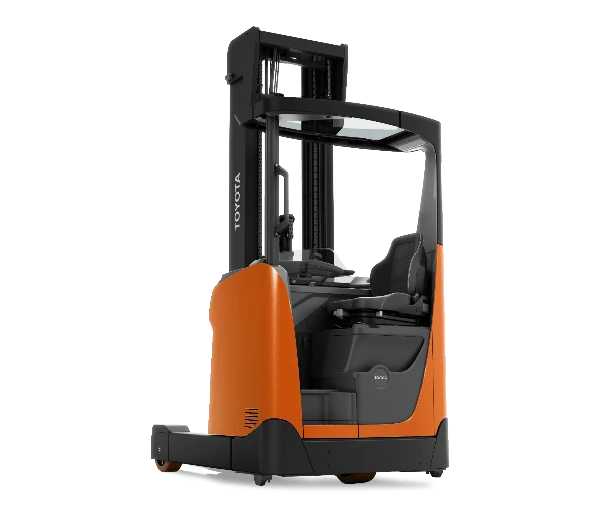

Toyota Indoor Moving Mast Reach Truck Forklift
Clear & Precise Control for Fast & Smooth Handling Shift After Shift
With a maximum lift height of 512″, and Toyota’s unique optional tilting cab system, operators have a clear view of their load, and can reduce the risk of neck and shoulder straining at high-level applications.
Toyota’s Moving Mast Reach Truck allows for faster and more accurate fork positioning. With warehouses continuing to rise due to space constraints, this truck is designed to deliver the perfect fit for your operation’s needs.
Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.
Specs
| Model Number | Load Capacity | Width | Height | Max. Fork Height | Max. Travel Speed | Reach Stroke | Voltage |
|---|---|---|---|---|---|---|---|
| RRE140H | 3,000 lbs | 58" | 166" | 433" | 6.8 mph | 20" | 48 V |
| RRE160H | 3,500 lbs | 58" | 166" | 433" | 6.8 mph | 23" | 48 V |
| RRE180H | 3,900 lbs | 66" | 196" | 512" | 6.8 mph | 23" | 48 V |
| RRE200H | 4,400 lbs | 66" | 196" | 512" | 6.8 mph | 26" | 48 V |
| RRE250H | 5,500 lbs | 66" | 196" | 512" | 6.8 mph | 24" | 48 V |
| Model Number | Load Capacity |
|---|---|
| RRE140H | 3,000 lbs |
| RRE160H | 3,500 lbs |
| RRE180H | 3,900 lbs |
| RRE200H | 4,400 lbs |
| RRE250H | 5,500 lbs |
| Model Number | Width |
|---|---|
| RRE140H | 58" |
| RRE160H | 58" |
| RRE180H | 66" |
| RRE200H | 66" |
| RRE250H | 66" |
| Model Number | Height |
|---|---|
| RRE140H | 166" |
| RRE160H | 166" |
| RRE180H | 196" |
| RRE200H | 196" |
| RRE250H | 196" |
| Model Number | Max. Fork Height |
|---|---|
| RRE140H | 433" |
| RRE160H | 433" |
| RRE180H | 512" |
| RRE200H | 512" |
| RRE250H | 512" |
| Model Number | Max. Travel Speed |
|---|---|
| RRE140H | 6.8 mph |
| RRE160H | 6.8 mph |
| RRE180H | 6.8 mph |
| RRE200H | 6.8 mph |
| RRE250H | 6.8 mph |
| Model Number | Reach Stroke |
|---|---|
| RRE140H | 20" |
| RRE160H | 23" |
| RRE180H | 23" |
| RRE200H | 26" |
| RRE250H | 24" |
| Model Number | Voltage |
|---|---|
| RRE140H | 48 V |
| RRE160H | 48 V |
| RRE180H | 48 V |
| RRE200H | 48 V |
| RRE250H | 48 V |
* Based on 24″ load center
** Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.
Specifications
LOAD CAPACITY
FULL LOAD TRAVEL SPEED
MAXIMUM FORK HEIGHT
Overview
Toyota Moving Mast Reach Trucks are designed for high-level warehouse applications, offering exceptional visibility, precise control, and ergonomic features like tilting cabs and padded compartments to enhance operator comfort and productivity. These Reach Trucks allow for significant aisle reduction by enabling the mast to extend forward, providing a clear view of the load at height level.
Performance
- 48 V
- AC-powered drive system
- AC hydraulic system
- Optimized reach control
- Variable speed lift/lowering
- Current-controlled proportional valve
- Lowering flow limiter
- Lift system relief valve
- Optimized cornering control
- Interactive digital display panel
Ergonomics
- Selectable 360° or 180° electric power steering
- Open-view 3-stage mast (FSW)
- Regenerative braking
- 39.4″ load backrest extension
- Transitional lift control
- Steering direction indicator
- View-through carriage
Safety Features
- Automatic tilting operator compartment
- Seated operator compartment
- Manually adjustable height floor
- Adjustable armrest with fingertip controls
- High visibility overhead guard
- Emergency power shut-down
- Electric horn
Ease of Service
- Battery extraction by mast
- Euro-style battery connector
- Battery discharge indicator w/lift interrupt
- Self diagnostics
- Built-in analyzer
- Over temperature indicator w/protection
- Electric disc brake
- Operator PIN code access
- Enclosed battery compartment
