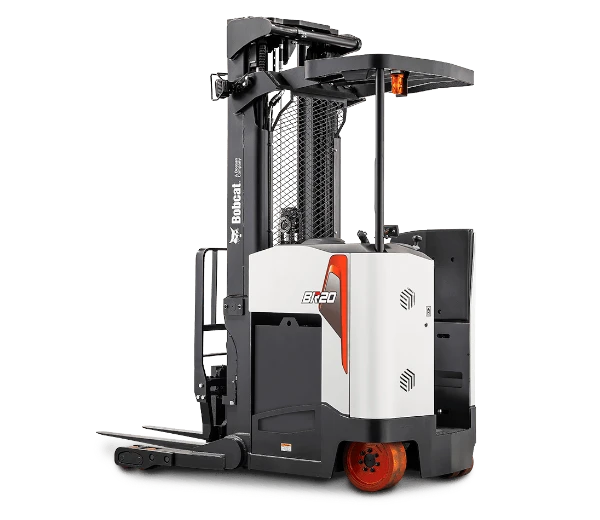

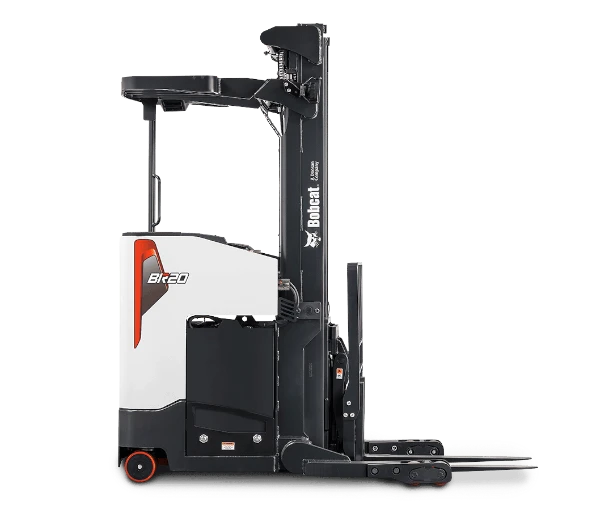

Bobcat 7 Series PLUS Reach Truck Forklift
Narrow Aisle Specialist helps Maximize Storage Space
Bobcat’s 7 Series PLUS Reach Trucks are electric, narrow-aisle forklifts designed for high-performance and durability in busy warehouses. They combine outstanding performance, durability, and convenience with the highest level of safety features, making your warehouse logistics more productive and efficient.
Specs
| Model Number | Load Capacity | Width | Height | Max Fork Height | Reach Stroke | Gradeability |
|---|---|---|---|---|---|---|
| BR18SP-7 PLUS | 3,500 lbs | 56" | 127" | 289" | 23" | 10 % |
| BR20SP-7 PLUS | 4,000 lbs | 56" | 140" | 318" | 23" | 10 % |
| Model Number | Load Capacity |
|---|---|
| BR18SP-7 PLUS | 3,500 lbs |
| BR20SP-7 PLUS | 4,000 lbs |
| Model Number | Width |
|---|---|
| BR18SP-7 PLUS | 56" |
| BR20SP-7 PLUS | 56" |
| Model Number | Height |
|---|---|
| BR18SP-7 PLUS | 127" |
| BR20SP-7 PLUS | 140" |
| Model Number | Max Fork Height |
|---|---|
| BR18SP-7 PLUS | 289" |
| BR20SP-7 PLUS | 318" |
| Model Number | Reach Stroke |
|---|---|
| BR18SP-7 PLUS | 23" |
| BR20SP-7 PLUS | 23" |
| Model Number | Gradeability |
|---|---|
| BR18SP-7 PLUS | 10 % |
| BR20SP-7 PLUS | 10 % |
* Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Bobcat dealers retain the most current product specifications. All specifications should be verified by an authorized Bobcat dealer prior to purchase.
Overview
The Bobcat 7 Series PLUS Reach Truck is a powerful, electric-powered narrow-aisle forklift designed for high-productivity material handling in busy warehouses. It features durable construction, precise maneuverability, advanced safety systems like the Guardian Stability System (GSS), and easy maintenance access for reliable and efficient warehouse operations.
Performance
- AC motor
- Height indicator with multiple height presets
- Frame w/bolt-on load wheel boxes
- Heavy-duty wheel bearings
- Advanced digital display
- Smooth transition mast raising/lowering
- Precise lifting control
Ergonomics
- Multi-function joystick control w/ergonomic buttons
- Rugged foot pedal switches
- Side-stance orientation for full visibility
- Low step height
- Angled masts for improved operator visibility
- Built-in storage areas
- Digital display
- Knee pad, back pad, and thigh pad
- Adjustable armrest
Safety Features
- Auto-centering drive tire
- Cushioned mast reach cylinders
- Guardian Stability System (GSS)
- Operator Sensing System (OSS)
Ease of Service
- AC motors
- Curtis on-board diagnostics
- Rear door to access main components
- Swing-out service door
- Removable cover panels
- On-board thermal protection
- Controller & motor cutback systems
