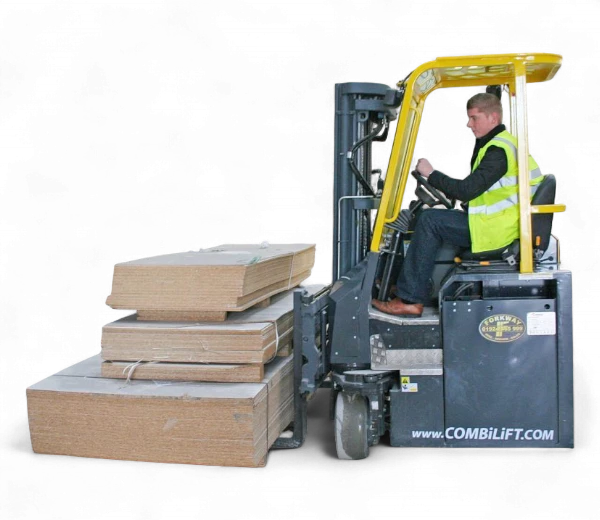

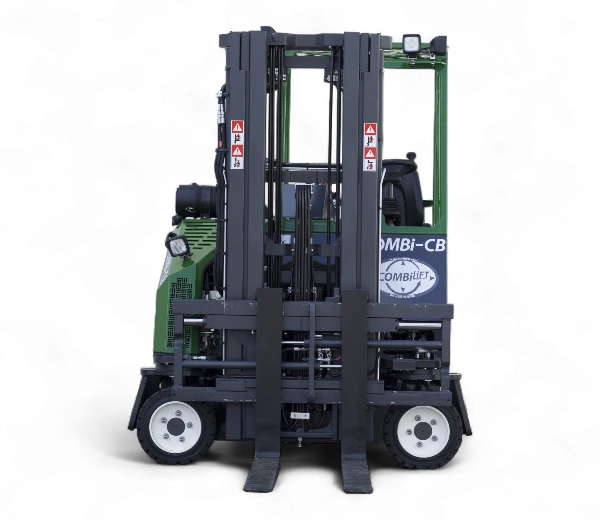

Combilift CB Series Forklift
Carry Long Loads – Sideways
The innovative Combi-CB is the original multi-directional counterbalance forklift truck. More compact than a conventional forklift, the Combi-CB is perfect for transporting palletized loads but can also carry long loads in sideways mode.
Specs
| Model Number | Load Capacity | Standard Lift Height | Overall Width | Wheelbase | Maximum Ground Speed |
|---|---|---|---|---|---|
| CB5 | 5,000 lbs | 157" | 59" | 43.5" | 9 mph |
| CB6 | 6,000 lbs | 157" | 59" | 43.5" | 9 mph |
| CB8 | 8,000 lbs | 159" | 64" | 53.75" | 9 mph |
| Model Number | Load Capacity |
|---|---|
| CB5 | 5,000 lbs |
| CB6 | 6,000 lbs |
| CB8 | 8,000 lbs |
| Model Number | Standard Lift Height |
|---|---|
| CB5 | 157" |
| CB6 | 157" |
| CB8 | 159" |
| Model Number | Overall Width |
|---|---|
| CB5 | 59" |
| CB6 | 59" |
| CB8 | 64" |
| Model Number | Wheelbase |
|---|---|
| CB5 | 43.5" |
| CB6 | 43.5" |
| CB8 | 53.75" |
| Model Number | Maximum Ground Speed |
|---|---|
| CB5 | 9 mph |
| CB6 | 9 mph |
| CB8 | 9 mph |
*Based on 24″ load center
Product specifications may not reflect the most current product details. Authorized Combilift dealers retain the most current product specifications. All specifications should be verified by an authorized Combilift dealer prior to purchase.
Specifications
LOAD CAPACITY
LOAD CENTER
MAX GROUND SPEED
Overview
The Combi-CB Series has a 4-way steering system that allows it to move forward, backward, and sideways. This eliminates the need for multiple machines and allows the forklift to transport long items, such as lumber or steel beams, in narrow aisles. Despite its strength, this Series is more compact than traditional counterbalance forklifts, allowing them to move in and out of containers for loading and unloading.
Performance
- Open cabin
- Multi-directional operation
- 3-wheel hydrostatic drive
- +/- 4″ sideshift
- 4-way lever positioning of Wheels
Ergonomics
- Off-center, high seating
- Fully adjustable, full suspension seat
- Logically arranged and placed controls
- Maximized visibility
- Load-sensing steering
Safety Features
- Low center of gravity
- Dynamic 360° steering
- Traction control
- Safety warning systems
- Emergency stop button
Ease of Service
- Accessible components
- Easy battery access
Options
