Big Joe J1 Joey Task Support Vehicle Forklift
Combines the Functions of an Elevated Work Platform, Order Picker, and Tugger

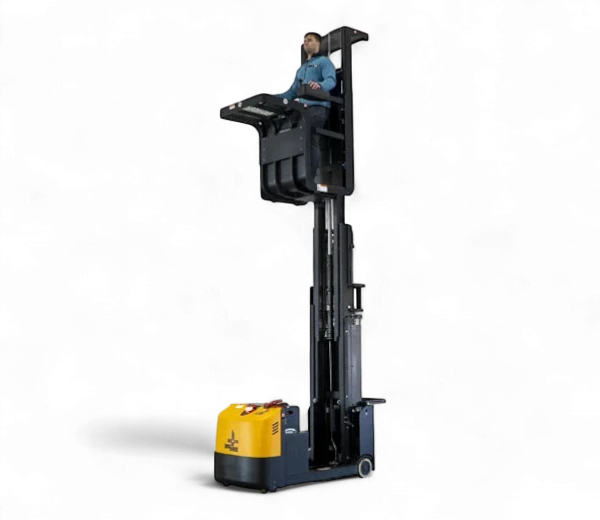

The Big Joe J1 Joey Task Support Vehicle is a compact, multi-purpose vehicle that serves as an alternative to ladders or larger equipment for tasks like order picking and general maintenance. It allows operators to lift themselves to heights and travel from task to task while elevated.
Designed to operate in narrow aisles and congested areas, with a turning radius as small as 72″.
Specs
| Model Number | Load Capacity | Max Lift Height | Working Height | Mast | Voltage |
|---|---|---|---|---|---|
| JX-126 | 500 lbs | 126" | 203" | Tripe Stage | 24 V |
| JX1-162 | 500 lbs | 162" | 239" | Tripe Stage | 24 V |
| JX1-192 | 500 lbs | 192" | 269" | Tripe Stage | 24 V |
| Model Number | Load Capacity |
|---|---|
| JX-126 | 500 lbs |
| JX1-162 | 500 lbs |
| JX1-192 | 500 lbs |
| Model Number | Max Lift Height |
|---|---|
| JX-126 | 126" |
| JX1-162 | 162" |
| JX1-192 | 192" |
| Model Number | Working Height |
|---|---|
| JX-126 | 203" |
| JX1-162 | 239" |
| JX1-192 | 269" |
| Model Number | Mast |
|---|---|
| JX-126 | Tripe Stage |
| JX1-162 | Tripe Stage |
| JX1-192 | Tripe Stage |
| Model Number | Voltage |
|---|---|
| JX-126 | 24 V |
| JX1-162 | 24 V |
| JX1-192 | 24 V |
Product specifications may not reflect the most current product details. Authorized ePicker dealers retain the most current product specifications. All specifications should be verified by an authorized ePicker dealer prior to purchase.
Overview

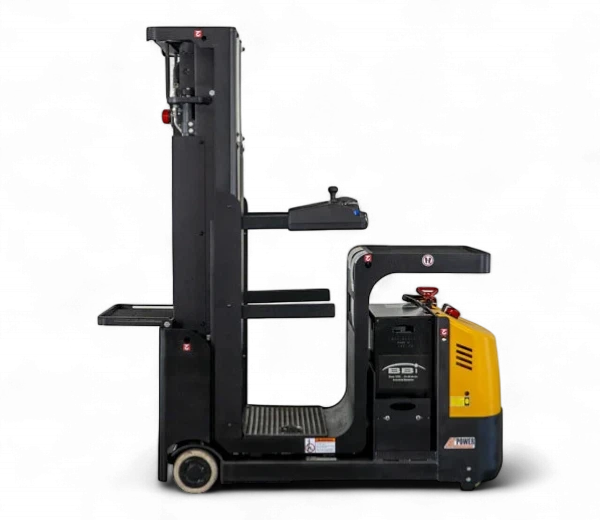

The Big Joe J1 Joey is a versatile, compact task support vehicle that combines the benefits of an elevating work platform, order picker, and tugger, allowing operators to elevate and move to tasks. It serves as a safer and more productive alternative to rolling ladders and other larger equipment for tasks like overhead maintenance and order picking. Includes an enclosed operator compartment with guardrails, an operator presence foot switch, obstruction sensors, and a forward-facing blue light to alert pedestrians.
- 1,000-pound total vehicle capacity: 300-pound operator’s compartment, 500-pound front work platform, 200-pound rear hide-away tray*
Performance
- AC drive motor
- Single-speed lift and lower controls
- Three-point chassis design
- 180° drive motor steering
- Powerhead-mounted stability casters
- Regenerative braking
- 24 V travel controller with 4 operator selectable travel settings and turtle speed mode
- Lift speed to 42 fpm
- Electronic power steering
Ergonomics
- LCD dashboard display
- Ergonomic fingertip control
- Roomy operator compartment
- Large storage compartment
- Hide-away rear work tray
Safety Features
- Retractable compartment side rails with an audible alarm when raised
- Front and rear flashing lights
- Foot switch
- Infrared sensor
Ease of Service
- Sealed hydraulic lift and drive components
- Battery compartment rollers
Options
