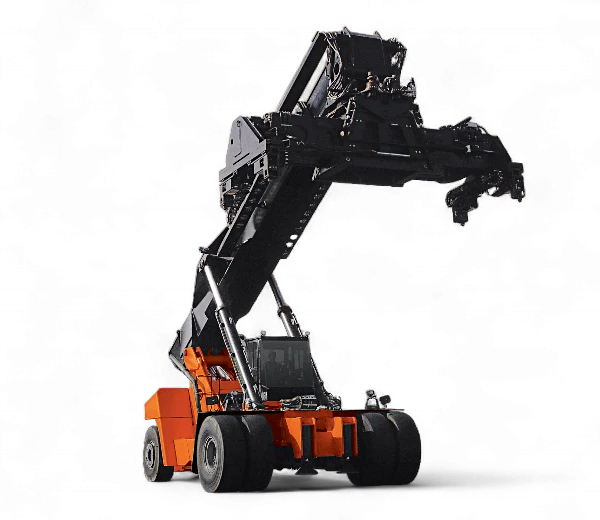

Toyota Reach Stacker Container Handler

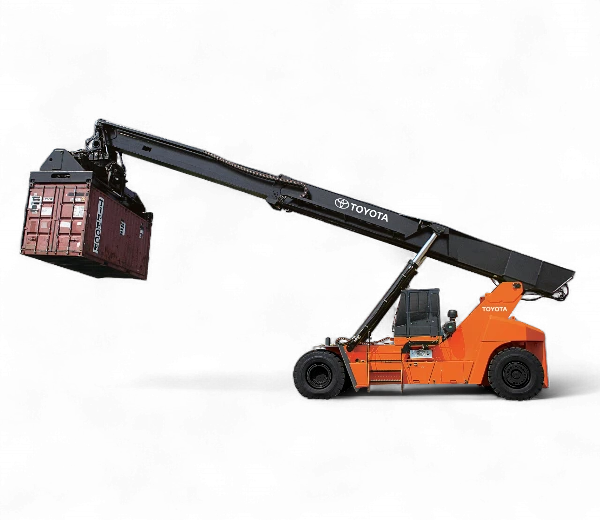

The Toyota Reach Stacker Container Handler is used to handle a diverse range of heavy-lift applications, from loading and unloading trailers to transporting wind turbine components. Stacking up to 5 containers high with a reach depth of 3 rows and a lifting capacity of up to 99,000 pounds, the Toyota Reach Stacker Container Handler is built for any heavy-duty job.
Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.
Specs
| Model Number | Load Capacity | Width | Height | Max Boom Height | Load Center 1st/2nd/3rd Row | Spreader Width 20'/40' |
|---|---|---|---|---|---|---|
| THD9900-R60 | 99,000 lbs | 165" | 181" | 736" | 78/156/258 | 274/479" |
| THD9900-R68 | 99,000 lbs | 165" | 181" | 736" | 78/156/258 | 274/479" |
| THD9900-R73 | 99,000 lbs | 165" | 181" | 736" | 78/156/258 | 274/479" |
| THD9900-R77 | 99,000 lbs | 165" | 181" | 736" | 78/156/258 | 274/479" |
| THD9900-R85 | 99,000 lbs | 172" | 183" | 739" | 78/156/258 | 274/479" |
| THD9900-R90 | 99,000 lbs | 172" | 183" | 738" | 78/156/258 | 274/479" |
| Model Number | Load Capacity |
|---|---|
| THD9900-R60 | 99,000 lbs |
| THD9900-R68 | 99,000 lbs |
| THD9900-R73 | 99,000 lbs |
| THD9900-R77 | 99,000 lbs |
| THD9900-R85 | 99,000 lbs |
| THD9900-R90 | 99,000 lbs |
| Model Number | Width |
|---|---|
| THD9900-R60 | 165" |
| THD9900-R68 | 165" |
| THD9900-R73 | 165" |
| THD9900-R77 | 165" |
| THD9900-R85 | 172" |
| THD9900-R90 | 172" |
| Model Number | Height |
|---|---|
| THD9900-R60 | 181" |
| THD9900-R68 | 181" |
| THD9900-R73 | 181" |
| THD9900-R77 | 181" |
| THD9900-R85 | 183" |
| THD9900-R90 | 183" |
| Model Number | Max Boom Height |
|---|---|
| THD9900-R60 | 736" |
| THD9900-R68 | 736" |
| THD9900-R73 | 736" |
| THD9900-R77 | 736" |
| THD9900-R85 | 739" |
| THD9900-R90 | 738" |
| Model Number | Load Center 1st/2nd/3rd Row |
|---|---|
| THD9900-R60 | 78/156/258 |
| THD9900-R68 | 78/156/258 |
| THD9900-R73 | 78/156/258 |
| THD9900-R77 | 78/156/258 |
| THD9900-R85 | 78/156/258 |
| THD9900-R90 | 78/156/258 |
| Model Number | Spreader Width 20'/40' |
|---|---|
| THD9900-R60 | 274/479" |
| THD9900-R68 | 274/479" |
| THD9900-R73 | 274/479" |
| THD9900-R77 | 274/479" |
| THD9900-R85 | 274/479" |
| THD9900-R90 | 274/479" |
*Based on 97″ load center
Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.
**First row load capacity
Overview
Toyota’s Reach Stacker Container Handler is a heavy-duty industrial machine for loading, unloading, and stacking shipping containers, designed for high-capacity and versatility. It can stack containers up to five high and reach three rows deep. Key features include a diesel-powered engine, a touchscreen display, and an ergonomic cab for operator visibility.
Performance
- 8.9 liter, 6-cylinder diesel engine
- Pivoting attachment with 4 ISO twistlocks
- High-load composite side thrust bearings
- Boom-mounted twistlock indicator light
- Transmission with 4 forward & 4 reverse speeds
- 4-spool main control valve (lift, tilt, extend, rotate)
- Charge air cooler with integral side by side radiator & transmission coolers
- Independent brake & brake/declutch pedals
- 2-stage high-strength steel telescoping boom
- Load-sensing, hydrostatic-powered steering
- Upswept exhaust
- 7” touch-screen multi-function display
Ergonomics
- LED headlights, spreader lights, and rear lights
- Stairway lighting
- Strobe light
- Forward & reverse travel alarms
- Key off headlights
- Sideview mirrors
- Front indicator lights
- Rear combination lights
- Dashless cab design for improved visibility
- Front & rear windshield washer/wiper
- Cabin doors with sliding windows
- Individually controlled front/rear wipers
- LED twistlock indicator lights inside cab
- Tilt steering column
- Left-hand directional shift lever
- Onboard load weighing system
- Adjustable air-ride seat with retractable seatbelts and adjustable armrests
- Lockable doors with greaseable hinges
- Cab heater & defroster
- Tinted glass to minimize glare
- Four turn lock-to-lock steering wheel
- Dome light
- Hydraulically powered traversing
Safety Features
- Emergency E-Stop in operator compartment
- Warning lights
- Heavy-duty, welded steer axle
- Rigidly constructed welded frame
- Engine protection system
- High-capacity cooling system
- Open core radiator with fan shroud motor & alternator
- “Brake Saver” system prevents travel when parking brake is applied
Ease of Service
- Electronic engine diagnostics with fault code history
- Easy-access filters
- Hydraulic multi-gauge
- Externally serviceable brakes
- Bolt-on tanks, counterweights, cab super-structure & stairways (removable)
- External attachment spreader cylinders
- Powertrain access panels with quick-release latches
- Force-cooled wet disc brakes
