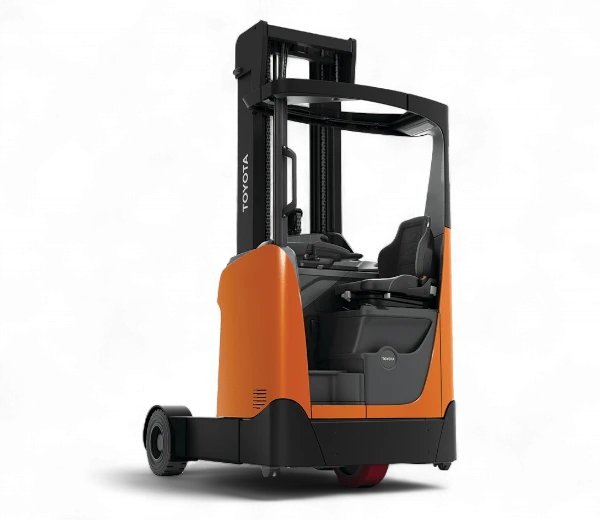

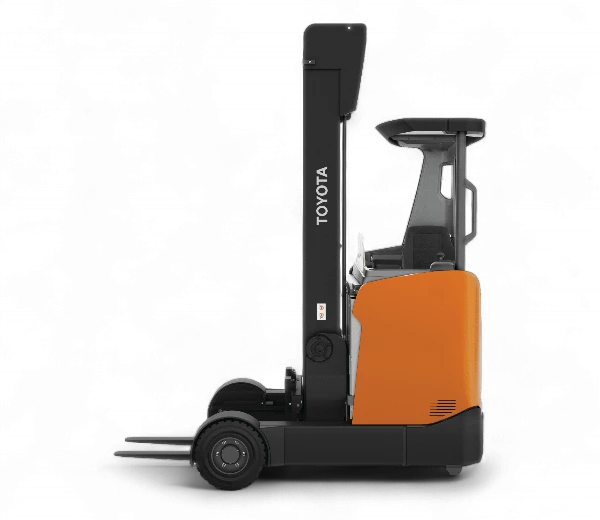

Toyota Indoor/Outdoor Moving Mast Reach Truck Forklift
The Perfect Lift to Fit Your Indoor and Outdoor Operations’ Needs
Toyota’s Indoor/Outdoor Moving Mast Reach Truck is in a class all its own when it comes to productivity, performance, and efficiency. This powerful lift is equipped with innovative ergonomics and technology, offering clear and precise control for faster and smoother handling shift after shift.
Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.
Specs
| Model Number | Load Capacity | Width | Height | Max. Fork Height | Max. Travel Speed | Reach Stroke |
|---|---|---|---|---|---|---|
| RRE160HR | 3,500 lbs | 56" | 123" | 295" | 6.8 mph | 24" |
| Model Number | Load Capacity |
|---|---|
| RRE160HR | 3,500 lbs |
| Model Number | Width |
|---|---|
| RRE160HR | 56" |
| Model Number | Height |
|---|---|
| RRE160HR | 123" |
| Model Number | Max. Fork Height |
|---|---|
| RRE160HR | 295" |
| Model Number | Max. Travel Speed |
|---|---|
| RRE160HR | 6.8 mph |
| Model Number | Reach Stroke |
|---|---|
| RRE160HR | 24" |
* Based on 24″ Load center
** Add load length and clearance
Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.
Overview
The Toyota Indoor-Outdoor Moving Mast Reach Truck is a versatile forklift designed for high-stacking warehouses that can also handle outdoor tasks, such as loading and unloading trailers. Key features include special super elastic tires for a comfortable ride on various surfaces, a moving mast for extended reach, and advanced operator aids like an interactive touchscreen display.
Performance
- 48 V
- AC-powered drive system
- AC hydraulic system
- Optimized reach control
- Variable speed lift/lowering
- Current-controlled proportional valve
- Lowering flow limiter
- Lift system relief valve
- Optimized cornering control
- Interactive digital display panel
Ergonomics
- Selectable 360° or 180° electric power steering
- Open-view 3-stage mast (FSW)
- Regenerative braking
- 39.4″ load backrest extension
- Transitional lift control
- Steering direction indicator
- View-through carriage
- Transitional Lift Control
- Steering Direction Indicator
Safety Features
- Seated operator compartment
- Manually adjustable height floor
- Adjustable armrest with fingertip controls
- High visibility overhead guard
- Adjustable steering wheel
Ease of Service
- Battery extraction by mast
- Euro-style battery connector
- Battery discharge indicator w/lift interrupt
- Self diagnostics
- Built-in analyzer
- Over temperature indicator w/protection
- Electric disc brake
- Enclosed battery compartment
Options
