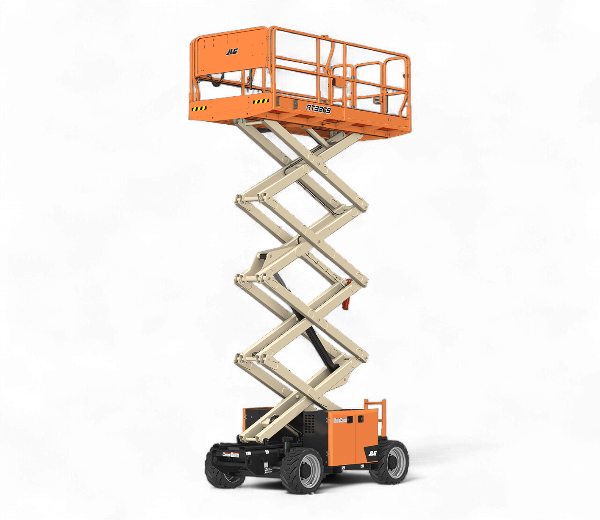

JLG IC RT Series Scissor Lift
JLG’s IC RT Series is an engine-powered rough-terrain scissor lift with four models, ranging in platform height from 26 to 47 feet. Each of these models can drive at full height, ensuring this line offers the broadest range of machines to handle any application.
Specs
| Model Number | Capacity | Machine Width | Machine Length | Machine Height | Platform Height | Gradeability | Platform Size |
|---|---|---|---|---|---|---|---|
| RT2669 | 1500 lbs | 5' 9" | 11' 7" | 8' 1" | 32' | 2WD 40% | 126 x 57" |
| RT3369 | 1000 lbs | 5' 9" | 11' 7" | 8' 7" | 39' | 2WD 40% | 126 x 57" |
| RT3394 | 2250 lbs | 7' 9" | 12' 10" | 9' 11" | 33' | 45% | 150 x 71" |
| RT4069 | 800 lbs | 5' 9" | 11' 7" | 8' 7" | 46' | 2WD 35% | 126 x 57" |
| RT4394 | 1500 lbs | 7' 9" | 12' 10" | 9' 10" | 43' | 45% | 150 x 71" |
| RT4769 | 800 lbs | 5' 9" | 11' 7" | 9' 1" | 53' | 2WD 30% | 126 x 57" |
| RT5394 | 1500 lbs | 7' 7" | 17' | 10' 1" | 53' | 40% | 150 x 71" |
| Model Number | Capacity |
|---|---|
| RT2669 | 1500 lbs |
| RT3369 | 1000 lbs |
| RT3394 | 2250 lbs |
| RT4069 | 800 lbs |
| RT4394 | 1500 lbs |
| RT4769 | 800 lbs |
| RT5394 | 1500 lbs |
| Model Number | Machine Width |
|---|---|
| RT2669 | 5' 9" |
| RT3369 | 5' 9" |
| RT3394 | 7' 9" |
| RT4069 | 5' 9" |
| RT4394 | 7' 9" |
| RT4769 | 5' 9" |
| RT5394 | 7' 7" |
| Model Number | Machine Length |
|---|---|
| RT2669 | 11' 7" |
| RT3369 | 11' 7" |
| RT3394 | 12' 10" |
| RT4069 | 11' 7" |
| RT4394 | 12' 10" |
| RT4769 | 11' 7" |
| RT5394 | 17' |
| Model Number | Machine Height |
|---|---|
| RT2669 | 8' 1" |
| RT3369 | 8' 7" |
| RT3394 | 9' 11" |
| RT4069 | 8' 7" |
| RT4394 | 9' 10" |
| RT4769 | 9' 1" |
| RT5394 | 10' 1" |
| Model Number | Platform Height |
|---|---|
| RT2669 | 32' |
| RT3369 | 39' |
| RT3394 | 33' |
| RT4069 | 46' |
| RT4394 | 43' |
| RT4769 | 53' |
| RT5394 | 53' |
| Model Number | Gradeability |
|---|---|
| RT2669 | 2WD 40% |
| RT3369 | 2WD 40% |
| RT3394 | 45% |
| RT4069 | 2WD 35% |
| RT4394 | 45% |
| RT4769 | 2WD 30% |
| RT5394 | 40% |
| Model Number | Platform Size |
|---|---|
| RT2669 | 126 x 57" |
| RT3369 | 126 x 57" |
| RT3394 | 150 x 71" |
| RT4069 | 126 x 57" |
| RT4394 | 150 x 71" |
| RT4769 | 126 x 57" |
| RT5394 | 150 x 71" |
Product specifications may not reflect the most current product details. Authorized JLG dealers retain the most current product specifications. All specifications should be verified by an authorized JLG dealer prior to purchase.
Specifications
LIFT CAPACITY
GROUND CLEARANCE
DRIVE SPEED
Overview
The JLG IC RT Series is engine-powered rough terrain scissor lifts, designed for demanding job sites that require large work areas, higher capacities, and exceptional mobility over uneven surfaces. These lifts are ideal for construction, industrial, and outdoor applications where rugged performance and productivity are essential.
Performance
- Drive capability at full height
- Large platform
- CD control box with LiftSense technology
Ergonomics
- Large platform size
- Platform floor is designed to shed debris
Safety Features
- Automatic motion alarm
- Grade and tilt sensors
- Guardrails
- Self-closing gate
- Lanyard anchorage points
- Emergency descent and controls
- Fail-safe hydraulic system
Ease of Service
- Easy access compartments
- Built-in diagnostics
- Swing-out engine tray
Options
