JLG ES Series Aerial Lift
Electric Lifts for Indoor & Outdoor Use
Experience the benefits of reduced charging time and longer runtime with a JLG ES Series Aerial Lift. Available in 2 series, with up to 1,000-pound capacity and full proportional controls that come standard for ease of operation. The QuikFold Rail System allows operators to fold the rails in a fraction of the time of a standard machine,
— Lightweight Series
— Mobile Elevating Work Platform (MEWP) Series, A92.20 Compliant
Specs
| Model Number | Capacity | Series | Length | Height | Working Height | Ground Clearance | Platform Size |
|---|---|---|---|---|---|---|---|

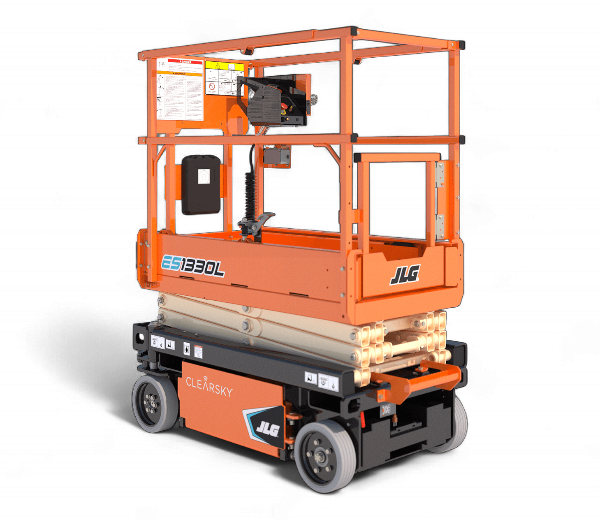

| ES1330L | 500 lbs | Lightweight | 4' 8" | 6' | 13' | 2" | 49.2 x 24.4" |

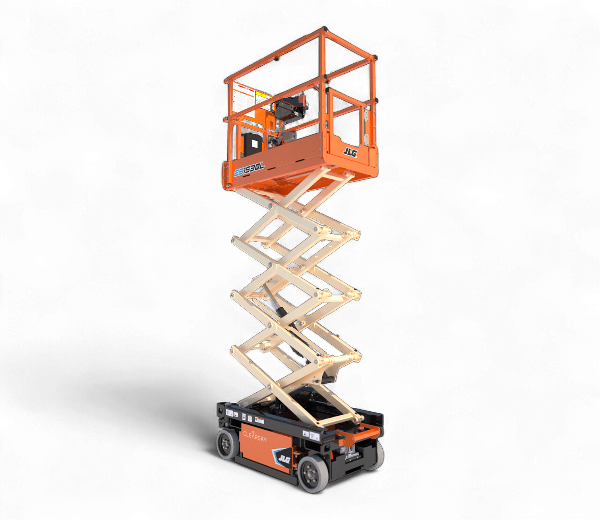

| ES1530L | 500 lbs | Lightweight | 4' 8" | 6' 3" | 15' | 2" | 49.2 x 24.4" |
| ES1932 | 507 lbs | MEWP – A92.20 Compliant | 5' 9" | 6' 11" | 19' | 3" | 62.7 x 25.4" |
| ES2632 | 507 lbs | MEWP – A92.20 Compliant | 7' 10" | 7' 4" | 25' 6" | 4" | 84 x 25.4" |
| ES3246 | 705 lbs | MEWP – A92.20 Compliant | 7' 10" | 8' | 32' | 4" | 84 x 41.6" |
| Model Number | Capacity |
|---|---|
| ES1330L | 500 lbs |
| ES1530L | 500 lbs |
| ES1932 | 507 lbs |
| ES2632 | 507 lbs |
| ES3246 | 705 lbs |
| Model Number | Series |
|---|---|
| ES1330L | Lightweight |
| ES1530L | Lightweight |
| ES1932 | MEWP – A92.20 Compliant |
| ES2632 | MEWP – A92.20 Compliant |
| ES3246 | MEWP – A92.20 Compliant |
| Model Number | Length |
|---|---|
| ES1330L | 4' 8" |
| ES1530L | 4' 8" |
| ES1932 | 5' 9" |
| ES2632 | 7' 10" |
| ES3246 | 7' 10" |
| Model Number | Height |
|---|---|
| ES1330L | 6' |
| ES1530L | 6' 3" |
| ES1932 | 6' 11" |
| ES2632 | 7' 4" |
| ES3246 | 8' |
| Model Number | Working Height |
|---|---|
| ES1330L | 13' |
| ES1530L | 15' |
| ES1932 | 19' |
| ES2632 | 25' 6" |
| ES3246 | 32' |
| Model Number | Ground Clearance |
|---|---|
| ES1330L | 2" |
| ES1530L | 2" |
| ES1932 | 3" |
| ES2632 | 4" |
| ES3246 | 4" |
| Model Number | Platform Size |
|---|---|
| ES1330L | 49.2 x 24.4" |
| ES1530L | 49.2 x 24.4" |
| ES1932 | 62.7 x 25.4" |
| ES2632 | 84 x 25.4" |
| ES3246 | 84 x 41.6" |
Product specifications may not reflect the most current product details. Authorized JLG dealers retain the most current product specifications. All specifications should be verified by an authorized JLG dealer prior to purchase.
Overview
Quieter, cleaner operation for a variety of environments. Electric drive and integrated components with only two hydraulic hoses and four hydraulic fittings on the entire machine will keep you on the job longer and reduce your operating costs by reducing chances for leaks and service calls. Narrow width fits through most standard doorways and tight aisles. Delivers up to 200% more battery life.
Performance
- Lightweight
- Compact footprint
- Zero turn radius
- Electric drive and integrated components
- QuikFold rail system
- USB charger and phone holster
- ClearSky Smart Fleet
Ergonomics
- Proportional, one-handed controls
- Intuitive joystick
- Low entry and exit height
- Quiet operation
Safety Features
- Stability and overload protection
- Guardrails and toe boards prevent falls
- Descent alarms
Ease of Service
- Reduced hydraulic components
- AC drive motors
- Advanced diagnostics
- Easy access to components
