Drexel EX-Series Explosion-Proof Electric Forklift
UL listed for Type EX Class I, Division I, Group D and Class II, Division I, Group G Flammable Hazardous Areas

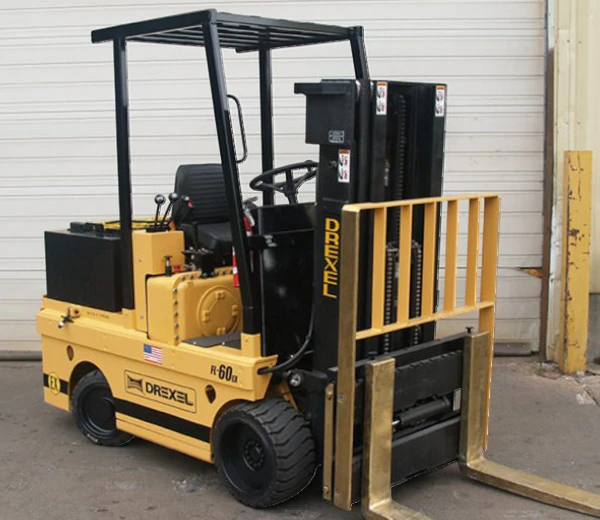

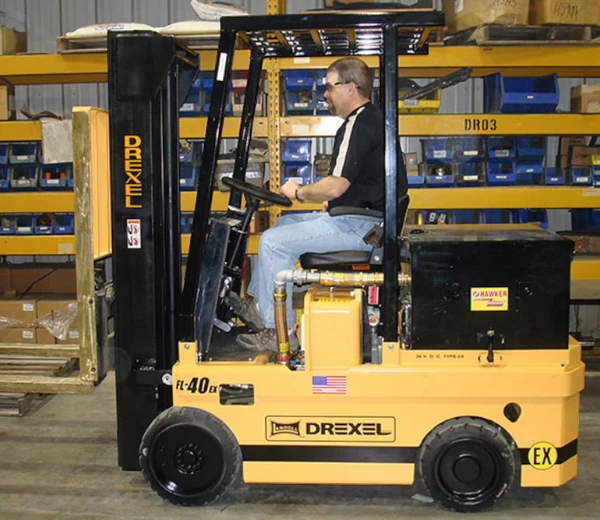

Drexel’s FL40AC-EX and FL60AC-EX are explosion-proof, electrically powered, front-loading, 4-wheel electric forklifts with independently driven front wheel drive and rear wheel steering.
Specs
| Model Number | Load Capacity | Lift Speed** | Minimum Aisle Width*** |
|---|---|---|---|
| FL40AC-EX | 4,000 lbs | 34 fpm | 144" |
| FL60AC-EX | 6,000 lbs | 25 fpm | 144" |
| Model Number | Load Capacity |
|---|---|
| FL40AC-EX | 4,000 lbs |
| FL60AC-EX | 6,000 lbs |
| Model Number | Lift Speed** |
|---|---|
| FL40AC-EX | 34 fpm |
| FL60AC-EX | 25 fpm |
| Model Number | Minimum Aisle Width*** |
|---|---|
| FL40AC-EX | 144" |
| FL60AC-EX | 144" |
* Based on 24″ load center
** At full load capacity
***Add load length and clearance. Product specifications may not reflect the most current product details.
Overview
Front-loading, electric forklifts designed for hazardous environments. Available in 4,000 and 6,000-pound capacities. Key features include front-wheel drive with rear-wheel steering, AC motors for efficiency, and a variety of masts for lift heights to 250 inches.
Performance
- Front wheel drive
- 36 V system
- Curtis AC hydraulic controllers
- 42″ long brass-covered standard taper forks
- 36″ wide carriage
Ergonomics
- Adjustable driver’s seat
- 48″ high backrest
- Static-grounded steer tires
- Cushion rubber drive tires
- Hydrostatic power steering
- Regenerative service brakes
- Parking brake on front wheels
Safety Features
- Emergency power disconnect switch
- Retractable seat belt
- Fire extinguisher
- Electric horn
- Overhead guard
- Spring applied parking brake
- Automatic return to neutral
Ease of Service
- AC motors and controls
- Battery discharge indicator with lift interrupt
- Hour meter
Options
