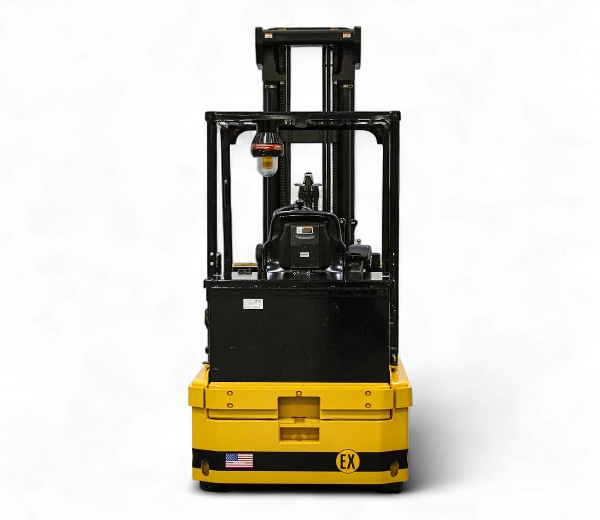

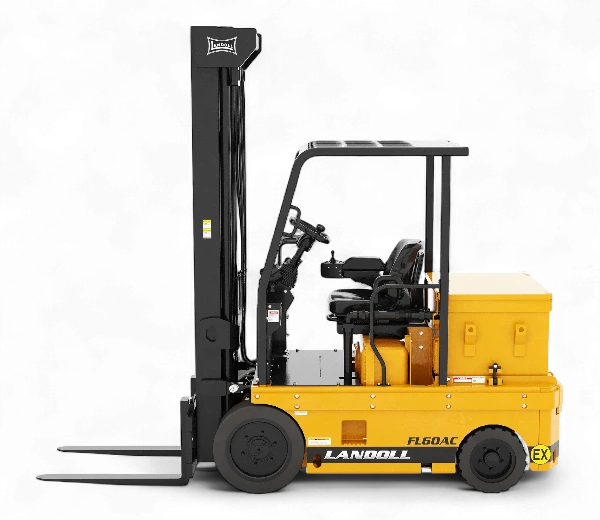

Drexel EX Series Explosion-Proof Electric Forklift
The Drexel FL40AC-EX and FL60AC-EX are explosion-proof, electrically powered, front-loading, 4-wheel electric forklifts with independently driven front wheel drive and rear wheel steering.
Specs
| Model Number | Load Capacity | Lift Speed** | Minimum Aisle Width*** | Voltage |
|---|---|---|---|---|
| FL40AC-EX | 4,000 lbs | 34 fpm | 144" | 36 V |
| FL60AC-EX | 6,000 lbs | 25 fpm | 144" | 36 V |
| Model Number | Load Capacity |
|---|---|
| FL40AC-EX | 4,000 lbs |
| FL60AC-EX | 6,000 lbs |
| Model Number | Lift Speed** |
|---|---|
| FL40AC-EX | 34 fpm |
| FL60AC-EX | 25 fpm |
| Model Number | Minimum Aisle Width*** |
|---|---|
| FL40AC-EX | 144" |
| FL60AC-EX | 144" |
| Model Number | Voltage |
|---|---|
| FL40AC-EX | 36 V |
| FL60AC-EX | 36 V |
*Based on 24″ load center
**At full load capacity
***Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Drexel dealers retain the most current product specifications. All specifications should be verified by an authorized Drexel dealer prior to purchase.
Overview
The EX Series is UL Listed for operation in Type EX Class I, Division I, Group D and Class II, Division I, Group G flammable hazardous areas. The Capacities are available in 4,000 and 6,000 pounds. With two, three, and four-stage masts for lift heights to 250″. AC motors and controls make the EX Series efficient and easy to maintain. Includes 42″ long brass-covered standard taper forks.
Performance
- Four-wheel configuration, front wheel drive
- 36 V system
- Curtis AC traction/hydraulic controllers
- RFI suppressed to MIL-STD-461
- Anderson Type N 150 amp EX connector
- Class III 36″ wide carriage
- Hour meter
Ergonomics
- Adjustable driver’s seat
- 48″ high backrest
- Static-grounded steer tires
- Cushion rubber drive tires
- Hydrostatic power steering
- Regenerative service brakes
- Spring-applied parking brake on front wheels
Safety Features
- Emergency power disconnect switch
- Retractable seatbelt
- Fire extinguisher and electric horn
- Overhead guard
- Spring applied parking brake on front wheels
- Automatic return to neutral
Ease of Service
- AC motor and controls
- Battery discharge indicator with lift interrupt
- Hour meter
Options
