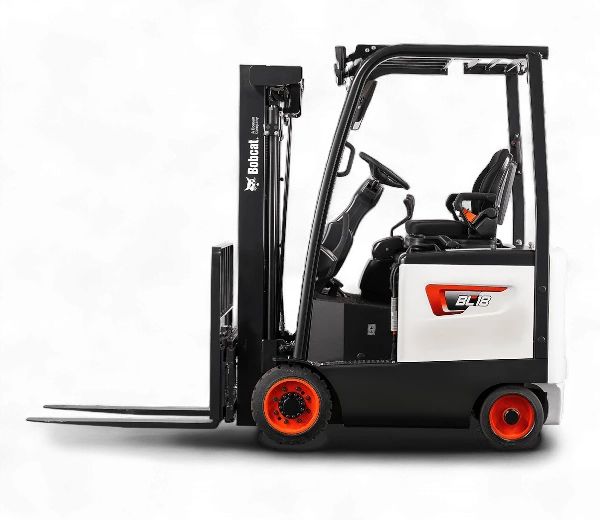

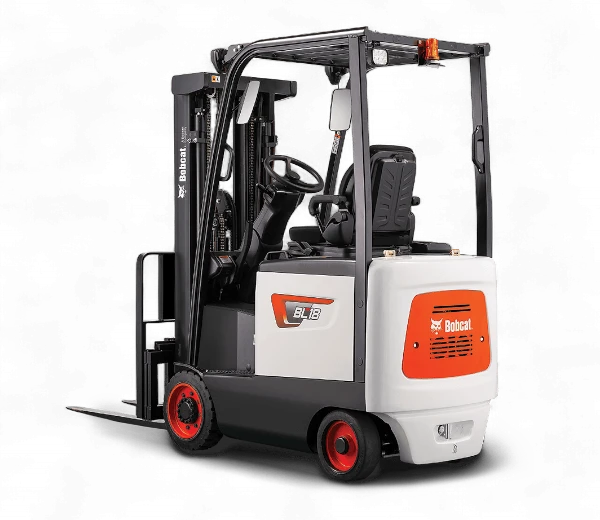

Bobcat Pro-5 Series Electric Forklift
Lower Operating Costs & Improved Performance
Bobcat focused on performance, productivity, and energy efficiency in developing the Pro-5 Series. By providing complete AC control of both drive and hydraulic systems, these forklifts offer advantages in productivity packages.
Specs
| Model Number | Load Capacity | Width | Height | Max Fork Height | Ma Xfull Load Lift Speed | Gradeability | Voltage |
|---|---|---|---|---|---|---|---|
| BC15S-5 | 3,000 lbs | 37" | 84" | 171" | 73 fpm | 14% | 36/48 V |
| BC18S-5 | 3,500 lbs | 37" | 84" | 171" | 69 fpm | 13% | 36/48 V |
| BC20SC-5 | 4,000 lbs | 39" | 84" | 171" | 63 fpm | 12% | 36/48 V |
| Model Number | Load Capacity |
|---|---|
| BC15S-5 | 3,000 lbs |
| BC18S-5 | 3,500 lbs |
| BC20SC-5 | 4,000 lbs |
| Model Number | Width |
|---|---|
| BC15S-5 | 37" |
| BC18S-5 | 37" |
| BC20SC-5 | 39" |
| Model Number | Height |
|---|---|
| BC15S-5 | 84" |
| BC18S-5 | 84" |
| BC20SC-5 | 84" |
| Model Number | Max Fork Height |
|---|---|
| BC15S-5 | 171" |
| BC18S-5 | 171" |
| BC20SC-5 | 171" |
| Model Number | Ma Xfull Load Lift Speed |
|---|---|
| BC15S-5 | 73 fpm |
| BC18S-5 | 69 fpm |
| BC20SC-5 | 63 fpm |
| Model Number | Gradeability |
|---|---|
| BC15S-5 | 14% |
| BC18S-5 | 13% |
| BC20SC-5 | 12% |
| Model Number | Voltage |
|---|---|
| BC15S-5 | 36/48 V |
| BC18S-5 | 36/48 V |
| BC20SC-5 | 36/48 V |
*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Bobcat dealers retain the most current product specifications. All specifications should be verified by an authorized Bobcat dealer prior to purchase.
Specifications
LOAD CAPACITY
TURNING RADIUS
VOLTAGE
Overview
Bobcat Pro-5 Series Forklifts are designed for high performance, efficiency, and operator comfort with features like AC technology, energy-efficient designs, intuitive controls, and enhanced visibility. The Pro-5 Series is suitable for a wide range of applications, including those involving ramps, grades, and rough terrain.
Performance
- Faster travel and lift speeds
- Energy consumption efficiency
- Closed-loop speed control system
- Easily programmable performance selection
- Reduced operating costs
Ergonomics
- Operator-friendly features of intelligent instrument and control panel
- Spacious operator compartment
- High visibility overhead guard and front end
Safety Features
- Operator Sensing System (OSS)
- Intelligent Torque Control (ITC)
- Steering angle sensor
Ease of Service
- Maintenance-free electric motors
- Run time and troubleshooting diagnostics
Options
