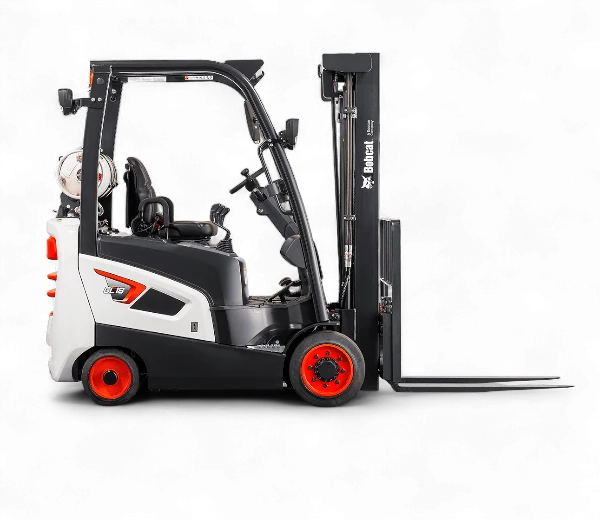

Bobcat 9 Series IC Indoor Forklift
Enhanced Operator Comfort Through an Ergonomically Designed Cab
The Bobcat 9 Series IC Indoor Forklift is designed for operator comfort, productivity, and reliability, featuring a spacious operator compartment with an adjustable steering column, ergonomic controls, and an easy-to-read display.
This Series has a lifting capacity range of 3,000 to 12,000 pounds and features such as electric power steering, dual-performance engine modes, and a wide-view mast to enhance visibility and performance.
Specs
| Model Number | Load Capacity | Width | Height | Max Fork Height | Lift Speed | Gradeability |
|---|---|---|---|---|---|---|
| GC15S-9 | 3,000 lbs | 37" | 124" | 118" | 126 fpm | 38.5% |
| GC18S-9 | 3,500 lbs | 37" | 125" | 118" | 124 fpm | 33% |
| GC20SC-9 | 4,000 lbs | 37" | 127" | 118" | 122 fpm | 31% |
| GC20S-9 | 4,000 lbs | 42" | 131" | 127" | 124 fpm | 33% |
| GC25S-9 | 5,000 lbs | 42" | 133" | 127" | 122 fpm | 28% |
| GC30S-9 | 6,000 lbs | 44" | 136" | 127" | 120 fpm | 25.5% |
| GC33S-9 | 6,500 lbs | 44" | 137" | 127" | 118 fpm | 22% |
| GC35S-9 | 8,000 lbs | 50" | 162" | 114" | 120 fpm | 36% |
| GC35S-9 BCS | 8,000 lbs | 50" | 162" | 114" | 120 fpm | 38% |
| GC45S-9 | 10,000 lbs | 56" | 162" | 114" | 116 fpm | 29% |
| GC45S-9 BCS | 10,000 lbs | 56" | 162" | 114" | 116 fpm | 34% |
| GC55S-9 | 12,000 lbs | 56" | 162" | 104" | 110 fpm | 25% |
| GC55S-9 BCS | 12,000 lbs | 56" | 162" | 104" | 110 fpm | 25% |
| Model Number | Load Capacity |
|---|---|
| GC15S-9 | 3,000 lbs |
| GC18S-9 | 3,500 lbs |
| GC20SC-9 | 4,000 lbs |
| GC20S-9 | 4,000 lbs |
| GC25S-9 | 5,000 lbs |
| GC30S-9 | 6,000 lbs |
| GC33S-9 | 6,500 lbs |
| GC35S-9 | 8,000 lbs |
| GC35S-9 BCS | 8,000 lbs |
| GC45S-9 | 10,000 lbs |
| GC45S-9 BCS | 10,000 lbs |
| GC55S-9 | 12,000 lbs |
| GC55S-9 BCS | 12,000 lbs |
| Model Number | Width |
|---|---|
| GC15S-9 | 37" |
| GC18S-9 | 37" |
| GC20SC-9 | 37" |
| GC20S-9 | 42" |
| GC25S-9 | 42" |
| GC30S-9 | 44" |
| GC33S-9 | 44" |
| GC35S-9 | 50" |
| GC35S-9 BCS | 50" |
| GC45S-9 | 56" |
| GC45S-9 BCS | 56" |
| GC55S-9 | 56" |
| GC55S-9 BCS | 56" |
| Model Number | Height |
|---|---|
| GC15S-9 | 124" |
| GC18S-9 | 125" |
| GC20SC-9 | 127" |
| GC20S-9 | 131" |
| GC25S-9 | 133" |
| GC30S-9 | 136" |
| GC33S-9 | 137" |
| GC35S-9 | 162" |
| GC35S-9 BCS | 162" |
| GC45S-9 | 162" |
| GC45S-9 BCS | 162" |
| GC55S-9 | 162" |
| GC55S-9 BCS | 162" |
| Model Number | Max Fork Height |
|---|---|
| GC15S-9 | 118" |
| GC18S-9 | 118" |
| GC20SC-9 | 118" |
| GC20S-9 | 127" |
| GC25S-9 | 127" |
| GC30S-9 | 127" |
| GC33S-9 | 127" |
| GC35S-9 | 114" |
| GC35S-9 BCS | 114" |
| GC45S-9 | 114" |
| GC45S-9 BCS | 114" |
| GC55S-9 | 104" |
| GC55S-9 BCS | 104" |
| Model Number | Lift Speed |
|---|---|
| GC15S-9 | 126 fpm |
| GC18S-9 | 124 fpm |
| GC20SC-9 | 122 fpm |
| GC20S-9 | 124 fpm |
| GC25S-9 | 122 fpm |
| GC30S-9 | 120 fpm |
| GC33S-9 | 118 fpm |
| GC35S-9 | 120 fpm |
| GC35S-9 BCS | 120 fpm |
| GC45S-9 | 116 fpm |
| GC45S-9 BCS | 116 fpm |
| GC55S-9 | 110 fpm |
| GC55S-9 BCS | 110 fpm |
| Model Number | Gradeability |
|---|---|
| GC15S-9 | 38.5% |
| GC18S-9 | 33% |
| GC20SC-9 | 31% |
| GC20S-9 | 33% |
| GC25S-9 | 28% |
| GC30S-9 | 25.5% |
| GC33S-9 | 22% |
| GC35S-9 | 36% |
| GC35S-9 BCS | 38% |
| GC45S-9 | 29% |
| GC45S-9 BCS | 34% |
| GC55S-9 | 25% |
| GC55S-9 BCS | 25% |
*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Bobcat dealers retain the most current product specifications. All specifications should be verified by an authorized Bobcat dealer prior to purchase.
Specifications
LOAD CAPACITY
TURNING RADIUS
FUEL TYPE
Overview
The Bobcat 9 series IC Indoor Forklift Series features, such as seat-side hydraulic levers, low-effort foot pedals, and a smaller steering wheel with a turning knob, minimize operator strain and fatigue. With a floating cab that reduces fatigue, a fully adjustable suspension seat, and a tilting and telescoping steering column.
This Series offers increased durability with a robust frame and components, along with simplified maintenance to reduce downtime.
Performance
- Cooling system for the toughest applications
- Compact drive axle for maneuvering in tight spaces
- Boxcar edition for railway, paper, and manufacturing
- Powerful engines for excellent performance
Ergonomics
- Large, open operator’s compartment
- More leg room & knee space
- Low step heights & 3-point entry system
- Adjustable steering column
- LCD panel
- User-friendly positioned hydraulic levers
Safety Features
- Operator Sensing System (OSS)
- 20% more visibility
- Large, convenient emergency stop button
- Rear grab bar with horn button
- Strobe and back-up alarm
- LED lighting standard
Ease of Service
- Easy accessibility to the engine compartment
- Double taper bearings on steer axles enhance reliability
- Oil-cooled disc brakes significantly reduce maintenance costs
- Fuses and relays located in one convenient place
- Increased operating hours between recommended service intervals save on routine maintenance costs
