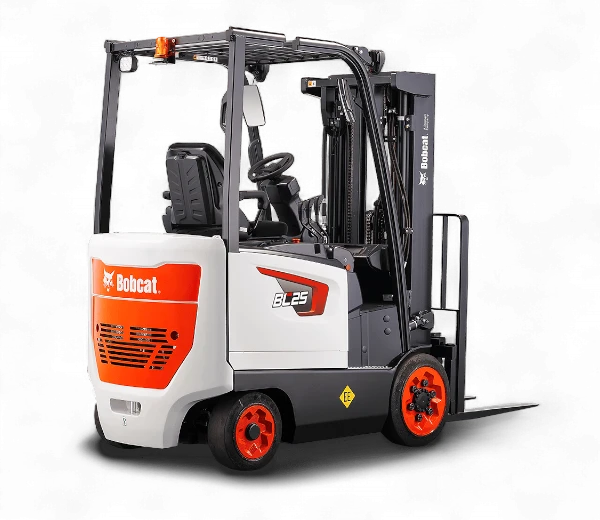

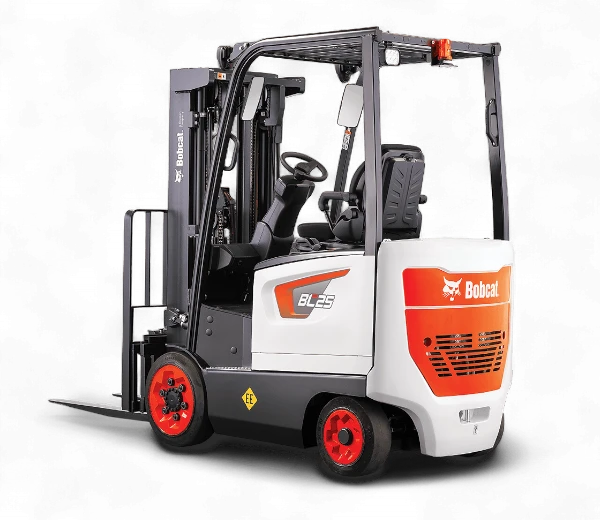

Bobcat 7 Series Electric Indoor Forklift
The 4-wheel cushion electric trucks continue Bobcat’s tradition of delivering efficient, reliable products while offering the best value for material handling needs.
The Bobcat 7 Series provides smooth operation in various work applications. With the precision AC motor controller and the optimized design, these forklifts deliver efficient operation even in the tightest spaces.
Specs
| Model Number | Load Capacity | Width | Height | Max Fork Height | Lift Speed | Gradeability |
|---|---|---|---|---|---|---|
| BC20S-7 | 4,000 lbs | 44" | 87" | 176" | 36 V: 67 fpm / 48 V: 91 fpm | 36 V: 22% / 48 V: 24% |
| BC25S-7 | 5,000 lbs | 44" | 87" | 176" | 36 V: 57 fpm / 48 V: 79 fpm | 36 V: 21% / 48 V: 24% |
| BC25S-7 | 5,000 lbs | 44" | 87" | 176" | 36 V: 57 fpm / 48 V: 79 fpm | 36 V: 21% / 48 V: 24% |
| BC25SE-7 | 5,000 lbs | 44" | 87" | 176" | 36 V: 57 fpm / 48 V: 79 fpm | 36 V: 21% / 48 V: 24% |
| BC30S-7 | 6,000 lbs | 44" | 87" | 176" | 36 V: 53 fpm / 48 V: 69 fpm | 36 V: 21% / 48 V: 24% |
| BC32S-7 | 6,500 lbs | 44" | 87" | 176" | 36 V: 53 fpm / 48 V: 69 fpm | 36 V: 21% / 48 V: 24% |
| Model Number | Load Capacity |
|---|---|
| BC20S-7 | 4,000 lbs |
| BC25S-7 | 5,000 lbs |
| BC25S-7 | 5,000 lbs |
| BC25SE-7 | 5,000 lbs |
| BC30S-7 | 6,000 lbs |
| BC32S-7 | 6,500 lbs |
| Model Number | Width |
|---|---|
| BC20S-7 | 44" |
| BC25S-7 | 44" |
| BC25S-7 | 44" |
| BC25SE-7 | 44" |
| BC30S-7 | 44" |
| BC32S-7 | 44" |
| Model Number | Height |
|---|---|
| BC20S-7 | 87" |
| BC25S-7 | 87" |
| BC25S-7 | 87" |
| BC25SE-7 | 87" |
| BC30S-7 | 87" |
| BC32S-7 | 87" |
| Model Number | Max Fork Height |
|---|---|
| BC20S-7 | 176" |
| BC25S-7 | 176" |
| BC25S-7 | 176" |
| BC25SE-7 | 176" |
| BC30S-7 | 176" |
| BC32S-7 | 176" |
| Model Number | Lift Speed |
|---|---|
| BC20S-7 | 36 V: 67 fpm / 48 V: 91 fpm |
| BC25S-7 | 36 V: 57 fpm / 48 V: 79 fpm |
| BC25S-7 | 36 V: 57 fpm / 48 V: 79 fpm |
| BC25SE-7 | 36 V: 57 fpm / 48 V: 79 fpm |
| BC30S-7 | 36 V: 53 fpm / 48 V: 69 fpm |
| BC32S-7 | 36 V: 53 fpm / 48 V: 69 fpm |
| Model Number | Gradeability |
|---|---|
| BC20S-7 | 36 V: 22% / 48 V: 24% |
| BC25S-7 | 36 V: 21% / 48 V: 24% |
| BC25S-7 | 36 V: 21% / 48 V: 24% |
| BC25SE-7 | 36 V: 21% / 48 V: 24% |
| BC30S-7 | 36 V: 21% / 48 V: 24% |
| BC32S-7 | 36 V: 21% / 48 V: 24% |
*Based on 24″ load center
**Add load length and clearance
Product specifications may not reflect the most current product details. Authorized Bobcat dealers retain the most current product specifications. All specifications should be verified by an authorized Bobcat dealer prior to purchase.
Specifications
LOAD CAPACITY
TURNING RADIUS
VOLTAGE
Overview
The 7 Series Electric Indoor Forklifts are designed for productivity, safety, and operator comfort in indoor environments, featuring smooth AC controllers, oil-cooled disc brakes, and excellent visibility. Key elements include ergonomic operator compartments with padded seating and intuitive controls, digital displays providing operational information, and safety features like rear alarms and electromagnetic parking brakes.
These forklifts are reliable and efficient, offering a low total cost of ownership.
Performance
- Excellent visibility
- Electromagnetic automatic parking brake
Ergonomics
- Ergonomically placed hydraulic controls
- Cushioned rubber mat
- Rounded battery cover
- Easy-to-read instrument panel
- Adjustable tilt steering columns
- Hydraulic control lever with direction switch
- Large cup holder
- USB port & 12V power outlet
- Clipboard holder
Safety Features
- Operator Sensing System (OSS)
- Guardian Stability System (GSS)
- Must be in neutral to start
- Mast lowering interlock
- Unlimited ramp hold
- Emergency stop switch
- Low battery warning alarm
- Orange ELR seat belt
- Brake oil & seat belt warning indicator
- Turtle mode
- Cornering speed control
- Static strap
Ease of Service
- Easy to access controller and motors
- Wide opening battery cover
- Side cover with air ventilation
- Durable heat-resistant cables
Options
