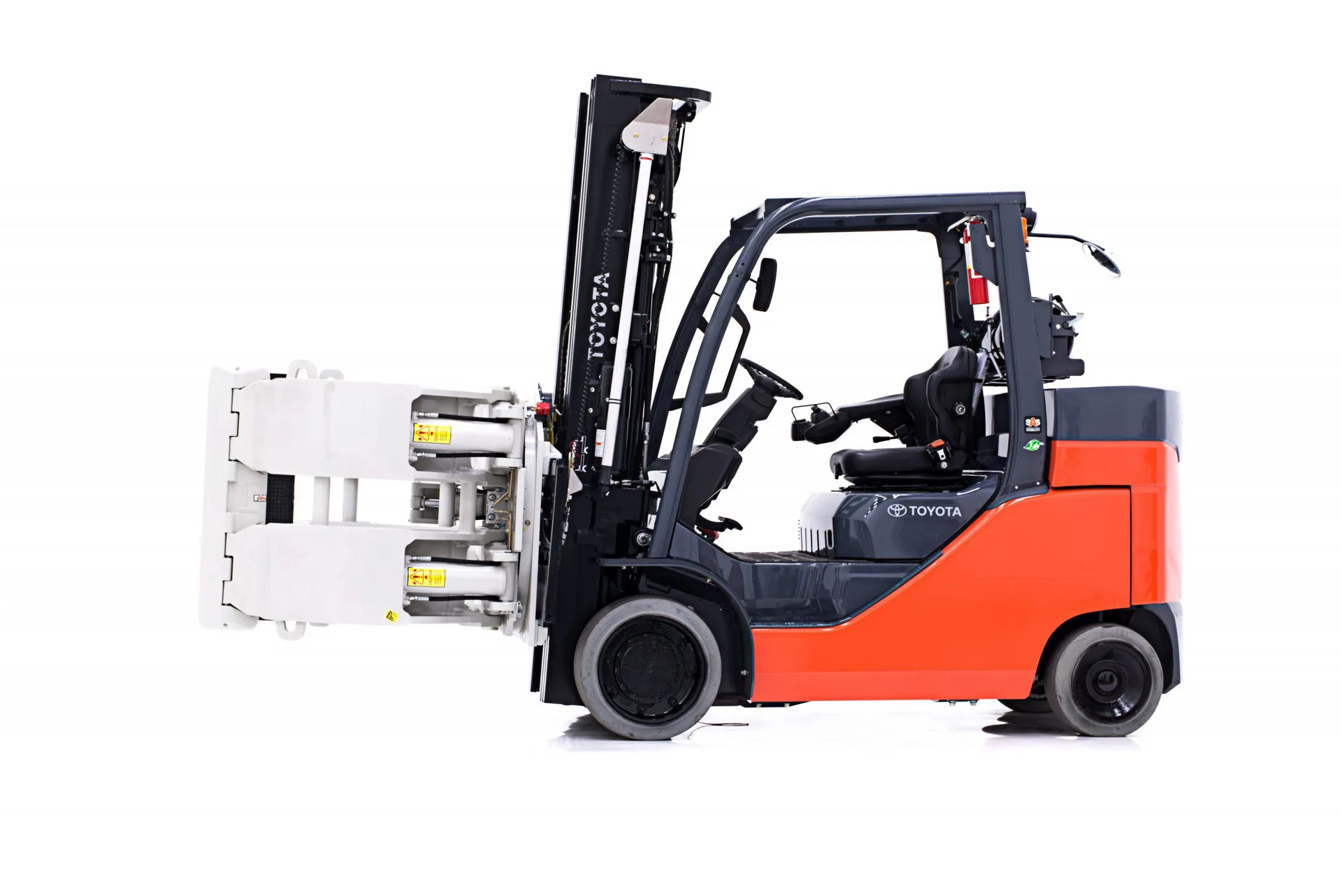

Toyota Paper Roll Special Forklift
Especially-Designed for Handling Heavy Paper Rolls

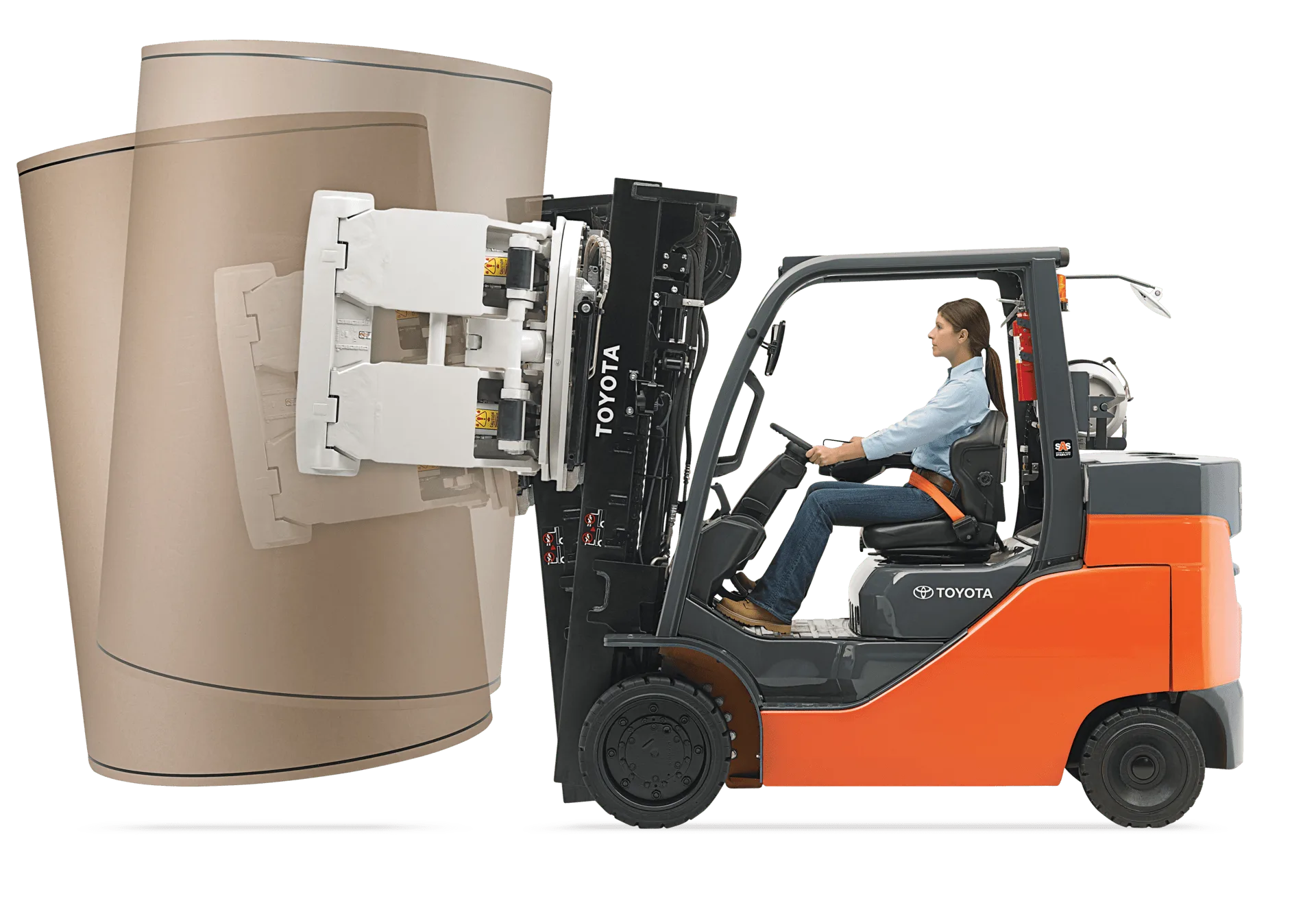

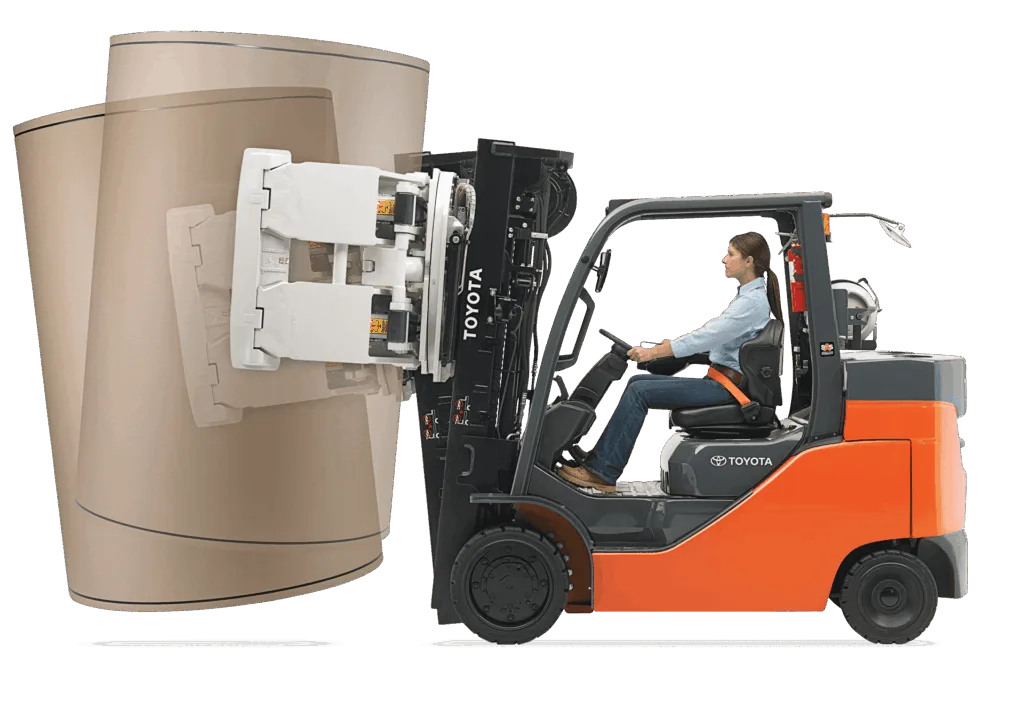

The Toyota Paper Roll Special Forklift is a specialized forklift designed to handle and stack heavy paper rolls efficiently and reliably. It is optimized with a Cascade Paper Roll Clamp for a maximum lifting capacity of 12,000 pounds. Key features include enhanced safety devices, ergonomic controls, and the stability of the Toyota System of Active Stability (SAS).
Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.
Specs
| Model Number | Load Capacity | Width | Height | Min/max Fork Spread | Lift Speed | Gradeability | Fuel |
|---|---|---|---|---|---|---|---|
| 8FGC55U-PRS | 12,000 lbs | 56" | 87" | 11.8" / 46.1" | 85 fpm | 18% | LPG |
| Model Number | Load Capacity |
|---|---|
| 8FGC55U-PRS | 12,000 lbs |
| Model Number | Width |
|---|---|
| 8FGC55U-PRS | 56" |
| Model Number | Height |
|---|---|
| 8FGC55U-PRS | 87" |
| Model Number | Min/max Fork Spread |
|---|---|
| 8FGC55U-PRS | 11.8" / 46.1" |
| Model Number | Lift Speed |
|---|---|
| 8FGC55U-PRS | 85 fpm |
| Model Number | Gradeability |
|---|---|
| 8FGC55U-PRS | 18% |
| Model Number | Fuel |
|---|---|
| 8FGC55U-PRS | LPG |
*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer representative prior to purchase.
Overview
A cost-effective solution for paper applications that requires efficiency and dependability. Optimized with a Cascade Paper Roll Clamp to provide a powerful lift capacity of up to 12,000 pounds.
Performance
- EPA/CARB-certified engine
- Distributor-less ignition system
- UL Approved Model Type “LP”
- Full-floating powertrain
- Alternator with built-in regulator
- Automatic transmission with oil cooler
- LCD multi-function display
- Electric shift control
- Front & rear treaded cushion tires
- Wide tread
- Hydraulic system tuned for clamping
Ergonomics
- Dash-mounted instrument display
- 2-spoke steering wheel
- Load-sensing power steering
- Cowl-mounted hydraulic control levers with rubber boot covers
- Dual operator assist grips
- Low, wide entry steps
- Vinyl 4-way adjustable full-suspension seat
- Oversized cup holder
- Non-cinching seatbelt
- One-way automatic fork leveling
- Double-action hand parking brake
- Integrated headlight & turn signal lever
Safety Features
- System of Active Stability (SAS)
- Operator Presence Sensing System (OPSS)
- Bolt-on overhead guard
- Key lowering interlock
- Electric horn
- Neutral start safety switch
- Key off/headlight off
Ease of Service
- Tool-less floorboard
- Engine hood assist damper with lock device
- Air cleaner discharge valve
- Easy-lift engine hood with wide 75° opening
- Easy access to common service items such as filters & dipsticks
- Engine protection system
Options
