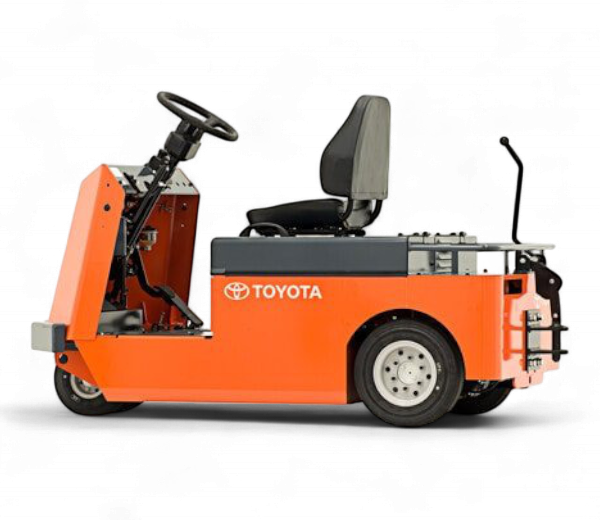

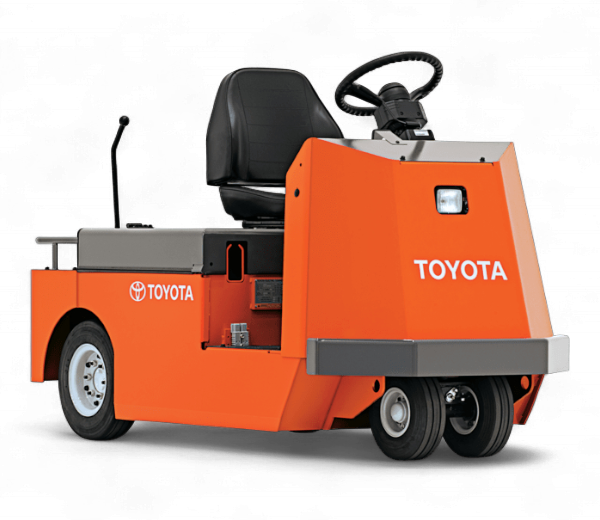

Toyota Mid Tow Tractor
Long Haul, Direct or With Multiple Stops
The Toyota Mid Tow Tractor is available as a sit-down, perfect for longer runs, or a stand-up, ideal for frequent on-and-offs. Either way, you’re getting a high-performance truck with great acceleration, productivity-boosting ergonomics and long-term dependability. It’s a true all-around player. No matter your industry — manufacturing, health care, distribution, aviation, and more — it’s excellent at moving product.
Specs
| Model Number | Towing Capacity | Max Drawbar Pull | Max Ravel Speed | Voltage |
|---|---|---|---|---|
| CBT4Y | 8,800 lbs | 880 lbs | 8.4 mph | 48 V |
| CBT4 | 8,800 lbs | 880 lbs | 8.4 mph | 48 V |
| CBT6 | 13,200 lbs | 990 lbs | 11.2 mph | 48 V |
| Model Number | Towing Capacity |
|---|---|
| CBT4Y | 8,800 lbs |
| CBT4 | 8,800 lbs |
| CBT6 | 13,200 lbs |
| Model Number | Max Drawbar Pull |
|---|---|
| CBT4Y | 880 lbs |
| CBT4 | 880 lbs |
| CBT6 | 990 lbs |
| Model Number | Max Ravel Speed |
|---|---|
| CBT4Y | 8.4 mph |
| CBT4 | 8.4 mph |
| CBT6 | 11.2 mph |
| Model Number | Voltage |
|---|---|
| CBT4Y | 48 V |
| CBT4 | 48 V |
| CBT6 | 48 V |
Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.
Specifications
Towing Capacity
MAX TRAVEL SPEED
VOLTAGE
Overview
Toyota’s Mid Tow Tractor is an ideal companion, available as a sit-down model for extended runs or a stand-up model for quick in-and-out operations. Both models deliver exceptional performance, robust acceleration, and ergonomic design that boosts productivity. Versatile and reliable, this powerhouse excels across diverse industries such as manufacturing, healthcare, distribution, and aviation. Choose the Mid Tow Tractor for seamless and efficient product movement.
Performance
- 48 V electrical system
- Transistor control system
- Transversely mounted drive system
- Transmission with helical gears
- Hour meter indicator
- Solid pneumatic tires
- Hydraulic brakes
- On/off key switch
- Rear storage area
Ergonomics
- Operator Presence Sensing System (OPS)
- Forward/reverse speed control lever
- Rear lean point
- Adjustable seat
- Easy to reach controls and levers
- Small diameter steering wheel
- Low step height
- Wide operator floorboard
- Center pin dampening device
- Electric shift lever
- Seat switch
- Floor switch
Safety Features
- Double-action parking brake
- Foot-operated parking brake
- Recessed headlight
- Electronic horn
- Heavy-duty front steel panel
Ease of Service
- Battery hood assist damper (sit-down model)
- Roll-out battery
- Battery status indicator
- Transversely mounted drive motor
- Fault code memory
- Fused circuits
Options
