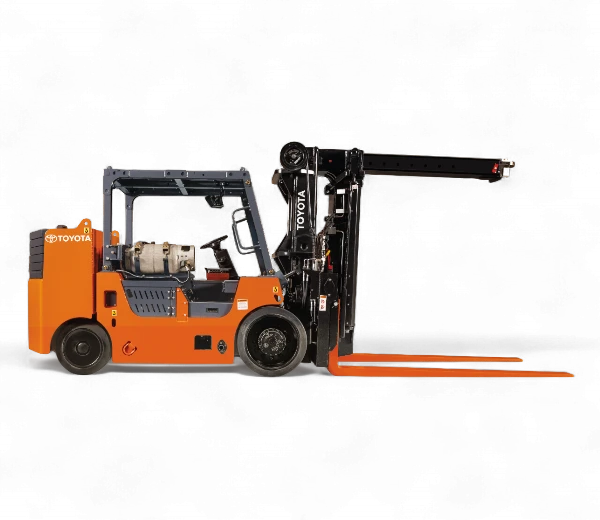

Toyota High-Capacity Adjustable Wheelbase Forklift
Exactly What You Need to Move Big, Awkward Items

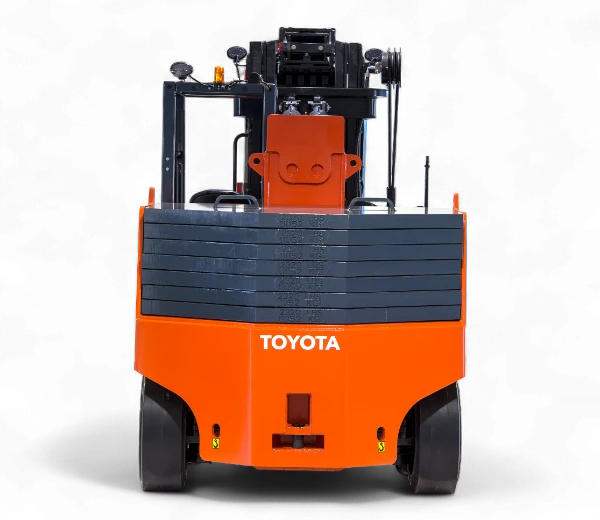

The Toyota High-Capacity Forklift with Adjustable Wheelbase is a master of flexibility. This sit-down counterbalanced forklift allows operators to handle varying load weights with an extendable counterweight featuring removable slabs.
The multi-stage telescopic boom can safely and efficiently move large equipment, such as industrial machinery or massive engines.
Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.
Specs
| Model Number | Load Capacity | Max Lift Height | Horsepower | # Of Cylinders | Overhead Guard Height | Tilt Range | Fuel |
|---|---|---|---|---|---|---|---|
| THDA40/60 | 60,000 lbs | 104.5" | 81 HP @3000 rpm | 4 | 92.81" | 12 fwd / 7 bck | LPG or GAS |
| THDA60/80 | 80,000 lbs | 107" | 110 HP @3000 rpm | 6 | 98.06" | 10 fwd / 7bck | LPG or GAS |
| Model Number | Load Capacity |
|---|---|
| THDA40/60 | 60,000 lbs |
| THDA60/80 | 80,000 lbs |
| Model Number | Max Lift Height |
|---|---|
| THDA40/60 | 104.5" |
| THDA60/80 | 107" |
| Model Number | Horsepower |
|---|---|
| THDA40/60 | 81 HP @3000 rpm |
| THDA60/80 | 110 HP @3000 rpm |
| Model Number | # Of Cylinders |
|---|---|
| THDA40/60 | 4 |
| THDA60/80 | 6 |
| Model Number | Overhead Guard Height |
|---|---|
| THDA40/60 | 92.81" |
| THDA60/80 | 98.06" |
| Model Number | Tilt Range |
|---|---|
| THDA40/60 | 12 fwd / 7 bck |
| THDA60/80 | 10 fwd / 7bck |
| Model Number | Fuel |
|---|---|
| THDA40/60 | LPG or GAS |
| THDA60/80 | LPG or GAS |
*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer representative prior to purchase.
Specifications
LOAD CAPACITY
FUEL
HORSEPOWER
Overview
The High-Capacity Adjustable Wheelbase sets the standard for versatility. Have a load with a unique load center? Extend the counterweight to make sure you can lift it. Have a tight space? Retract the counterweight. Need more? We made it operable with an optional remote control
Performance
- Full hydraulic power steering
- High gear and low gear settings
- Wide visibility mast
- Built-in engine protection system
- Optional side-shifting fork positioner
Ergonomics
- Adjustable semi-suspension seat
- Soft-touch hydraulic levers
- Large, dual operator assist grips
- Rubber-mounted, isolated cab for reduced vibration
Safety Features
- Operator Presence Sensing System (OPSS)
- Hydraulic release parking brake
- Operator restraint system seat
- Orange forks
- Bolt-on overhead guard
Ease of Service
- Engine fault code diagnostics
- Externally mounted charge pump
- Sealed weather pack connectors
- Easy access oil filter
- Electric radiator fan with automatic reversing
Options
