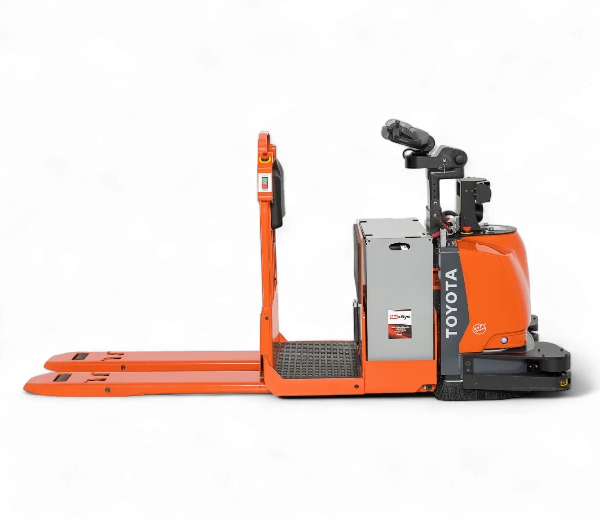

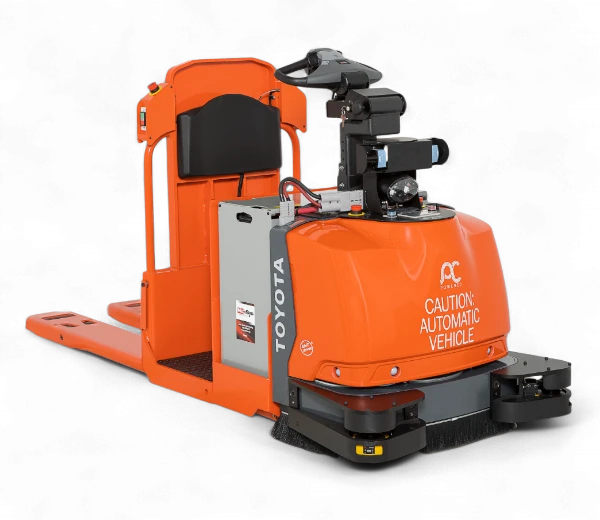

Toyota Center-Controlled Rider Automated Pallet Jack
Uses Advanced Sensors to Perform Repetitive Tasks
Built on a base of the reliable Toyota Center-Controlled Rider Pallet Jack, the innovative Toyota Center-Controlled Rider Automated Pallet Jack uses advanced technology in environmental detection to automate repetitive tasks in your warehouse. Utilizing advanced sensors for cutting-edge, mapped-object detection, it merges the legendary dependability of Toyota warehouse equipment with the latest in automation advancement – to lower your costs and streamline your operation.
Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.
Specs
| Model Number | Load Capacity | Full Load Max Manual Travel Speed | Full Load Max Automated Travel Speed** | Gradeability |
|---|---|---|---|---|
| 8HBC40A | 8,000 lbs | 6.2 mph | 5 / 4.3 / 3.5 / 2.7 / 2.7 mph | 8% |
| Model Number | Load Capacity |
|---|---|
| 8HBC40A | 8,000 lbs |
| Model Number | Full Load Max Manual Travel Speed |
|---|---|
| 8HBC40A | 6.2 mph |
| Model Number | Full Load Max Automated Travel Speed** |
|---|---|
| 8HBC40A | 5 / 4.3 / 3.5 / 2.7 / 2.7 mph |
| Model Number | Gradeability |
|---|---|
| 8HBC40A | 8% |
*Based on 24″ load center
**Automated mode only. Travel speed is based on rated capacity. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.
Overview
Toyota’s Center-Controlled Rider Automated Pallet Jack can be manually or automatically operated and is designed to streamline material handling, improve efficiency, and reduce costs while seamlessly integrating into existing operations. Safety features include object detection for slowing down or stopping, and a mode-switching button for manual control.
Performance
- AC drive motor with thermal protection & current limiting
- 24 V electrical system
- Fault code memory with hour meter reading
- Regenerative braking
- Adjustable maximum speed and acceleration
- On/off key switch
- Lift limit switch
- Multiple-hour meter indicator
- Battery discharge indicator
- Fused control & power circuits
- Hydraulic overload protection valve
- Dual 1.25″ diameter lift cylinder
- Cantilevered load detection
- LCD system display
- BlueBotics controller
Ergonomics
- Multifunction control handle
- Angled handgrips & wrap-around hand guard
- Dual thumbwheels with twist grips for directional control & travel speed
- Intuitively positioned lift/lower buttons
- High-speed interlock button
- Bubble-cushioned operator floor mat, padded backrest & knee pad
- Walk-through operator compartment
- Low platform step height
- Low-effort power steering with adjustable height control handle
Safety Features
- Velocity drive LIDAR safety field
- Dual LIDAR scanners
- Fork tip sensors
- Load detection on forks
- Wrap-around hand guard
- Complete traffic control
- Control handle with dual brake levers
- Electronic horn
- Velocity drive LIDAR safety field
Ease of Service
- AC drive motor
- One-piece, lightweight service access cover
- Teflon-coated PolyLube™ lift linkage bushings
- Error indicator with self-diagnostics
- Self-adjusting electric disc brake
Options
