Taylor Removable Counterweight LiftTruck Forklift
Specialized Port & Shipboard Operations

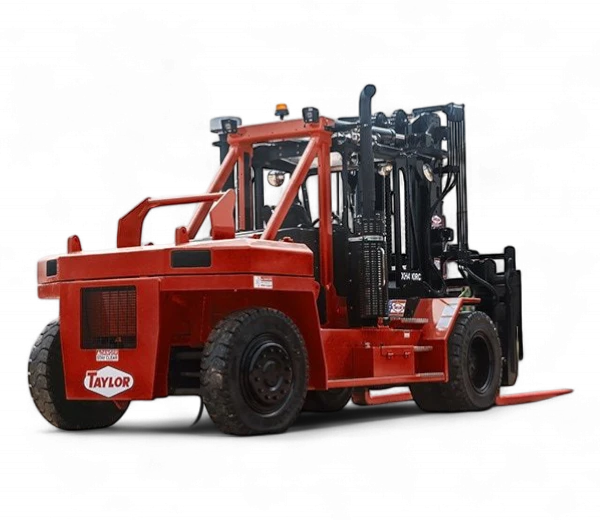

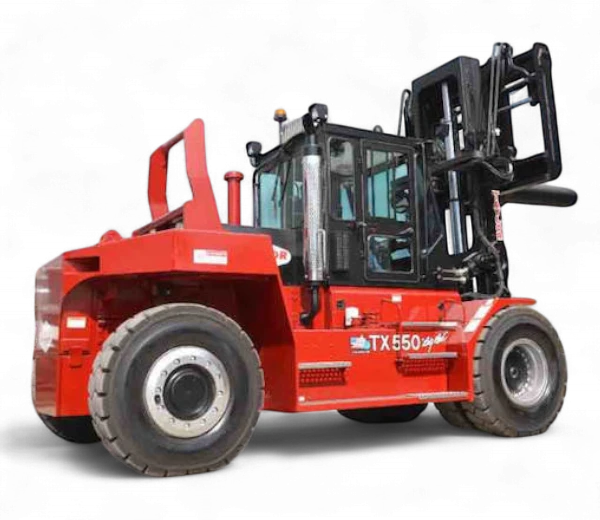

Taylor Removable Counterweight Lift Trucks are heavy-duty forklifts designed for specialized port and shipboard operations, allowing them to be lifted into a ship’s hull by crane. The key feature is the ability to detach the counterweight, reducing the forklift’s overall weight for easy crane transport into confined spaces, such as a ship’s hold. Once in position, the counterweight is reattached, and the forklift gains its full lifting capacity to handle heavy cargo efficiently.
Specs
| Model Number | Load Capacity | Load Center | Wheelbase | Engine | 2-stage Mast |
|---|---|---|---|---|---|
| XH-400RC | 40,000 lbs | 48" | 155" | Cummins | 11' |
| X-550RC | 55,000 lbs | 36" | 140" | Cummins | 10' |
| X-925RC | 92,500 lbs | 48" | 225" | Volvo | 13' |
| X-1000RC | 100,000 lbs | 48" | 225" | Volvo | 15' |
| Model Number | Load Capacity |
|---|---|
| XH-400RC | 40,000 lbs |
| X-550RC | 55,000 lbs |
| X-925RC | 92,500 lbs |
| X-1000RC | 100,000 lbs |
| Model Number | Load Center |
|---|---|
| XH-400RC | 48" |
| X-550RC | 36" |
| X-925RC | 48" |
| X-1000RC | 48" |
| Model Number | Wheelbase |
|---|---|
| XH-400RC | 155" |
| X-550RC | 140" |
| X-925RC | 225" |
| X-1000RC | 225" |
| Model Number | Engine |
|---|---|
| XH-400RC | Cummins |
| X-550RC | Cummins |
| X-925RC | Volvo |
| X-1000RC | Volvo |
| Model Number | 2-stage Mast |
|---|---|
| XH-400RC | 11' |
| X-550RC | 10' |
| X-925RC | 13' |
| X-1000RC | 15' |
*Based on 36-48″ load center
Product specifications may not reflect the most current product details. Authorized Taylor dealers retain the most current product specifications. All specifications should be verified by an authorized Taylor dealer prior to purchase.
Specifications
LOAD CAPACITY
LOAD CENTER
WHEELBASE
Overview
The Removable Counterweight family of trucks comes with a robust list of standard features including enclosed all-welded two-door cabs installed with tinted glass, heating and cooling circulation fans and great technical features. Taylor products boast the industry’s toughest steer axle, which comes standard on every model.
Performance
- ULTRA-VU 2-stage mast
- Heavy-duty batteries with battery disconnect switch
- Wet disc hydraulic-actuated brake
- Dry-type air cleaner w/safety element
- Wide-stance steer axle with stud protectors
- Hydrostatic power steering
Ergonomics
- Electric joystick
Safety Features
- Electric horn
- Keyswitch-actuated amber strobe light
- Reverse-actuated backup alarm
- Forward alarm
- Rear view mirrors
- Lighted Instruments
Ease of Service
- Taylor Integrated Control System (TICS)
- CAN bus diagnostics
Options
