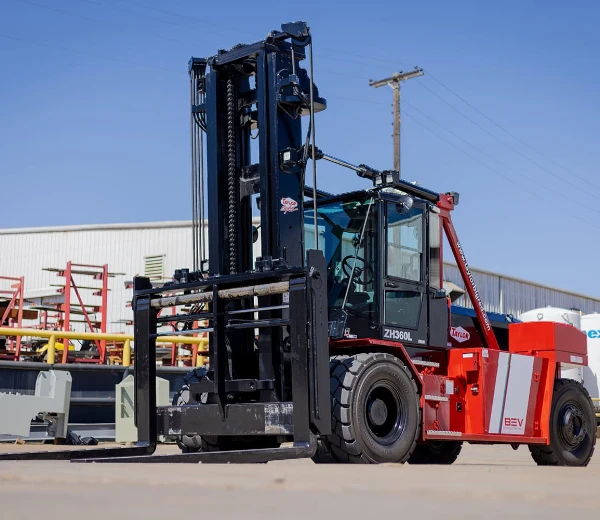

Taylor LC ZH-Series Electric Forklift
36,000-Pound Electric Forklift
The Taylor ZH-360L is the first 36,000-pound electric forklift for all industries. Permanent Magnet Synchronous Electric Motors and American-manufactured NMC batteries power it. 90+/- minutes charging time. This heavy-duty truck can lift 36,000 pounds at a 48-inch load center and operate continuously through an average duty cycle of 8 hours.
It features an advanced E-axle that utilizes regenerative braking to assist with battery recharge during operation. And an enclosed 2-door steel all-welded ‘dream cab’ that includes a dome light, wide-angle mirrors, door hold-back latches with trip handles, handrails, black floor mats, and is isolation-mounted for noise and vibration reduction.
Specs
| Model Number | Load Capacity | Width | Height | Max Fork Height | Max Full Load Lift Speed | Max Full Load Gradeability | Wheelbase |
|---|---|---|---|---|---|---|---|
| ZH360L | 36,000 lbs | 108.5" | 152" | 302" | 68 fpm | 32% | 148" |
| Model Number | Load Capacity |
|---|---|
| ZH360L | 36,000 lbs |
| Model Number | Width |
|---|---|
| ZH360L | 108.5" |
| Model Number | Height |
|---|---|
| ZH360L | 152" |
| Model Number | Max Fork Height |
|---|---|
| ZH360L | 302" |
| Model Number | Max Full Load Lift Speed |
|---|---|
| ZH360L | 68 fpm |
| Model Number | Max Full Load Gradeability |
|---|---|
| ZH360L | 32% |
| Model Number | Wheelbase |
|---|---|
| ZH360L | 148" |
*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Taylor dealers retain the most current product specifications. All specifications should be verified by an authorized Taylor dealer prior to purchase.
Specifications
LOAD CAPACITY
BATTERY VOLTAGE
LOWERED MAST HEIGHT
Overview
Designed for demanding material handling tasks, the Taylor LC ZH operates with zero emissions. Key features include bright LED work lights, wide-angle mirrors, and an optional Clear-VU operator station.
Performance
- 11’ ULTRA-VU 2-stage mast
- 100″ pin-type “C” carriage with individual fork positioning and sideshift
- 4″ x 8 x 96″ pin-mounted forks
- Permanent magnet synchronous motor
- 660 V electrical system
- Energy recovery technology through regenerative braking
- 12.00 X 20 – 24PR bias pneumatic drive and steer tires
- TaylorTrak Pro Advanced Fleet Telematics hardware
Ergonomics
- Cab heater and interior circulation fan
- Tinted glass with front and rear windshield wipers and front windshield washer
- Fully adjustable air ride swivel seat
- Multifunction joystick mounted on adjustable armrest with integrated directional shift control
- Operator Presence System (OPS)
- 7-inch touch screen color display
- Dual USB charging ports
- Hydrostatic, steer-on-demand power steering with tilt steering column
Safety Features
- Battery disconnect/lock-out switch
- Forward-facing LED work lights mounted on the cab
- Rear-facing LED work lights
- LED work lights mounted on the mast
- Key-type anti-restart ignition switch
- Dual electric trumpet horns
- Keyswitch-actuated amber strobe light
- Forward and reverse-actuated warning alarms
- Orange, anti-cinch seat belt with starting sequence neutral lock
Ease of Service
- 24 V electrical system
- Dual heavy-duty lead-acid batteries for system startup
- All wiring is color and number-coded
- Circuit breakers with heavy-duty connectors
- Breaker reset switches
Options
