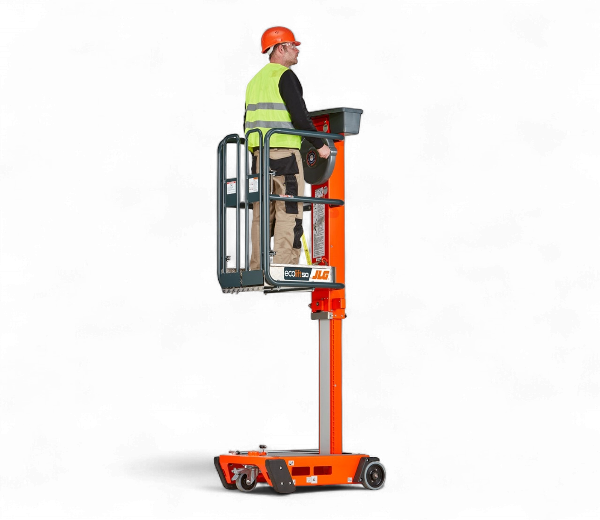

JLG Non-Powered EcoLift Aerial Lift
Eco-Friendly, Power-Free, and No Oil, Batteries or Hydraulics
Efficiency and safety are the order of the day in your facility or office. For situations where a ladder isn’t the best option for the task at hand, look to the EcoLift Series lifts from JLG. The innovative lift/lower mechanism is simple to use and gives operators the confidence to tackle low-level tasks like changing light bulbs, hanging décor or accessing HVAC ductwork.
Specs
| Model Number | Machine Width | Machine Length | Machine Height | Working Height | Platform Size |
|---|---|---|---|---|---|
| EcoLift 50 | 2' 4" | 3' 3" | 5' 1" | 10' 11" | 30 x 24" |
| EcoLift 70 | 2' 4" | 4' 2" | 6' 4" | 13' 3" | 33 x 25" |
| Model Number | Machine Width |
|---|---|
| EcoLift 50 | 2' 4" |
| EcoLift 70 | 2' 4" |
| Model Number | Machine Length |
|---|---|
| EcoLift 50 | 3' 3" |
| EcoLift 70 | 4' 2" |
| Model Number | Machine Height |
|---|---|
| EcoLift 50 | 5' 1" |
| EcoLift 70 | 6' 4" |
| Model Number | Working Height |
|---|---|
| EcoLift 50 | 10' 11" |
| EcoLift 70 | 13' 3" |
| Model Number | Platform Size |
|---|---|
| EcoLift 50 | 30 x 24" |
| EcoLift 70 | 33 x 25" |
Product specifications may not reflect the most current product details. Authorized JLG dealers retain the most current product specifications. All specifications should be verified by an authorized JLG dealer prior to purchase.
Specifications
PLATFORM CAPACITY
WORKING HEIGHT
PLATFORM SIZE
Overview
JLG’s Non-Powered EcoLift is a series of personnel lifts that offer a safe, ladder-free alternative for low-level access work by using a patented stored power lift/lower system without batteries, hydraulics, or oil.
Performance
- Simple use, push into place and get to work
- No batteries or hydraulic oil for clean, quiet operation
- Sturdy base and automatic locking wheels
Ergonomics
- Full-height platform rails
- Self-closing gate
- Smooth lifting and lowering mechanism
- Minimal setup
Safety Features
- Safety mechanism on the hand crank
- Auto-locking rear wheel brakes
- Fully enclosed steel platform
- Lanyard anchorage points
Ease of Service
- No hydraulics or batteries
- Limited moving part
- On-unit emergency lowering tool
Options
Related Products

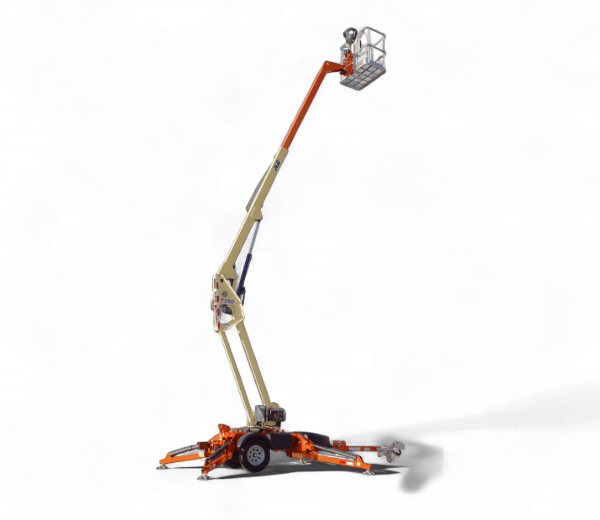

JLG Tow-Pro Boom Lift Aerial Lift
