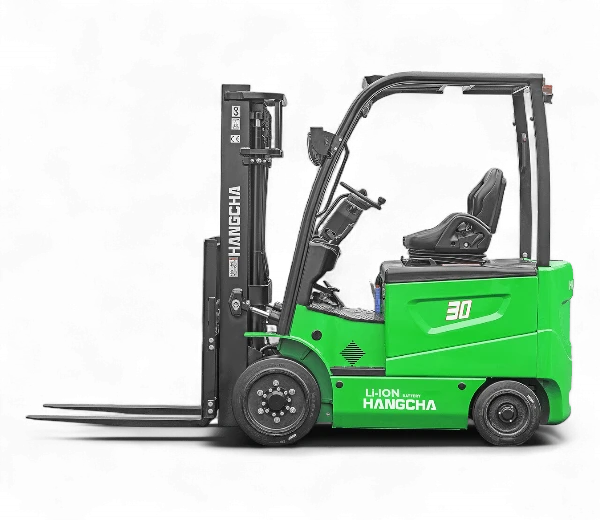

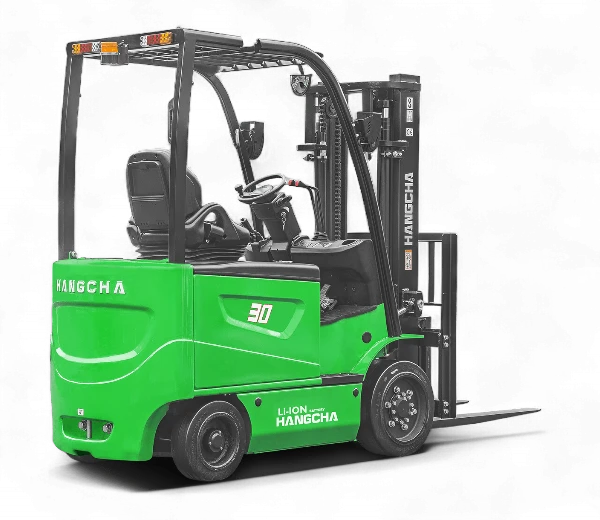

Hangcha X-Series 4-Wheel Electric Indoor Lithium-Ion Forklift
Small, Flexible, Strong
The X Series Electric Cushion Forklift with Lithium-ion Technology is designed to be small and flexible while still maintaining a lifting capacity of up to 6,500 pounds. This design allows it to be used in narrow aisle applications. The exterior of this forklift is powder-coated in a durable, easy-to-see green finish that designates it as lithium-ion powered.
Features an LCD color monitor instrument display, enabling the operator to easily and efficiently control the machine. The monitor provides information about speed level, steer angle, travel direction, battery discharge indicator, hour meter, and working mode. The operator can select various performance modes from this display to meet all working conditions.
Specs
| Model Number | Load Capacity | Width | Height | Max Fork Height | Max Full Load Lift Speed | Max Full Load Gradeability | Battery Compartment |
|---|---|---|---|---|---|---|---|
| FB20CLi | 4,000 lbs | 42" | 78" | 118" | 89 fpm | 23% | 30.5" |
| FB25CLi | 5,000 lbs | 42" | 78" | 118" | 79 fpm | 19% | 30.5" |
| FB30CLi | 6,000 lbs | 44" | 78" | 118" | 69 fpm | 17% | 34.3" |
| FB32CLi | 6,500 lbs | 44" | 78" | 118" | 65 fpm | 17% | 34.3" |
| Model Number | Load Capacity |
|---|---|
| FB20CLi | 4,000 lbs |
| FB25CLi | 5,000 lbs |
| FB30CLi | 6,000 lbs |
| FB32CLi | 6,500 lbs |
| Model Number | Width |
|---|---|
| FB20CLi | 42" |
| FB25CLi | 42" |
| FB30CLi | 44" |
| FB32CLi | 44" |
| Model Number | Height |
|---|---|
| FB20CLi | 78" |
| FB25CLi | 78" |
| FB30CLi | 78" |
| FB32CLi | 78" |
| Model Number | Max Fork Height |
|---|---|
| FB20CLi | 118" |
| FB25CLi | 118" |
| FB30CLi | 118" |
| FB32CLi | 118" |
| Model Number | Max Full Load Lift Speed |
|---|---|
| FB20CLi | 89 fpm |
| FB25CLi | 79 fpm |
| FB30CLi | 69 fpm |
| FB32CLi | 65 fpm |
| Model Number | Max Full Load Gradeability |
|---|---|
| FB20CLi | 23% |
| FB25CLi | 19% |
| FB30CLi | 17% |
| FB32CLi | 17% |
| Model Number | Battery Compartment |
|---|---|
| FB20CLi | 30.5" |
| FB25CLi | 30.5" |
| FB30CLi | 34.3" |
| FB32CLi | 34.3" |
*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Hangcha dealers retain the most current product specifications. All specifications should be verified by an authorized Hangcha dealer prior to purchase.
Overview
The Hangcha X Series 4 Wheel Electric forklift is designed for multi-shift operations and narrow-aisle applications, offering improved visibility, ergonomic operator features, and safety systems such as an Operator Presence Sensing system and electronic fork-lowering buffering. Benefit from consistent power and performance throughout the day, with a Battery Management System that monitors cell conditions and ensures safe operation.
Performance
- 4 pre-set performance modes: super, power, economy, SPE
- AC/DC converter
- Dual-spool multi-way valve
- Limited free lift 2-stage mast
- Regenerative braking system
- High-power oil pump motor and large displacement gear pump
Ergonomics
- Low-vibration seat can be adjusted back and forth by 5.9”
- Rubber and plastic pedal pad
- AC-controlled hydraulic power steering
Safety Features
- Backup alarm
- Panoramic rearview mirror
- Strobe light
- Controller automatically reduces speed when turning
- Exceeds ANSI and ITSDF regulations
- LED headlamps and rear combination tail lamps
- Lowering safety valve prevents forks from dropping down in case of sudden damage to the hydraulic line
- Electronic and hydraulic overload protection sensors on forks
Ease of Service
- Tool-free removal of baseplate
- Side battery removal assembly
- Dual-door for easy access to the hydraulic pump motor, pump
- Integrated Battery Management System (BMS)
