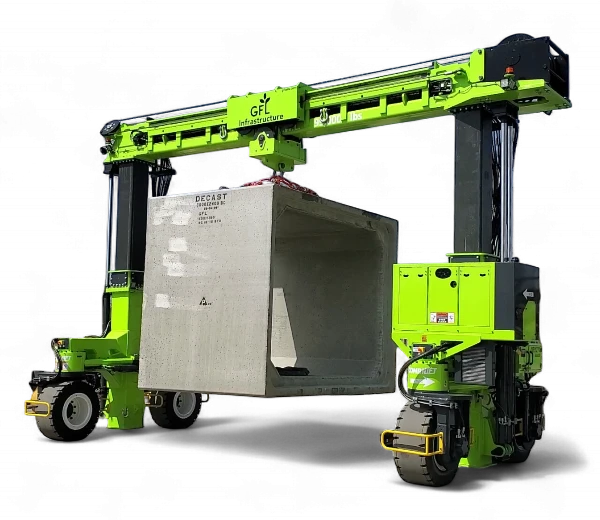

Combilit Combi-MG Mobile Gantry
Highly Customizable for Any Load Handling Challenge

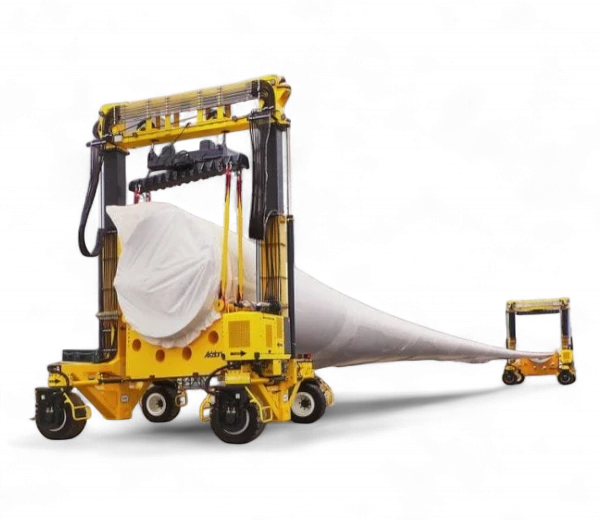

The Combi-MG Series is the perfect solution for handling and conveying heavy loads typical of industries such as shipping, aerospace, wind turbine, large-scale civil, precast concrete, and large-scale structural steel.
The Combi-MG is highly adaptable to your needs and can be built to dimensions specifically to suit your application. It can be equipped with an extensive range of lifting accessories to suit any application or industry. For use in aisles as narrow as 5’W.
Specs
| Model Number | Load Capacity | Width Of Load Area | Height Of Load Area | Lift Capability | Fuel | Voltage |
|---|---|---|---|---|---|---|
| MG | 44,000 lbs | 227.5" | 127" | Fixed Lift Height | DIESEL or LPG | 12 V |
| MG-T | 200,000 lbs | 118" | 157 – 228" | Variable, Telescopic Lift | DIESEL or LPG | 12 V |
| Model Number | Load Capacity |
|---|---|
| MG | 44,000 lbs |
| MG-T | 200,000 lbs |
| Model Number | Width Of Load Area |
|---|---|
| MG | 227.5" |
| MG-T | 118" |
| Model Number | Height Of Load Area |
|---|---|
| MG | 127" |
| MG-T | 157 – 228" |
| Model Number | Lift Capability |
|---|---|
| MG | Fixed Lift Height |
| MG-T | Variable, Telescopic Lift |
| Model Number | Fuel |
|---|---|
| MG | DIESEL or LPG |
| MG-T | DIESEL or LPG |
| Model Number | Voltage |
|---|---|
| MG | 12 V |
| MG-T | 12 V |
Product specifications may not reflect the most current product details. Authorized Combilift dealers retain the most current product specifications. All specifications should be verified by an authorized Combilift dealer prior to purchase.
Overview
The Combi-MG Series mobile gantry has a telescopic function allows loads to be raised and placed up onto trailers etc. and gives the Combi-MG the ability to reduce its height to enter low doorways. When moving loads of extreme size, being able to position them accurately and safely is critical for avoiding damage or injury. The Combi-MG is equipped with full side shift to both left and right and the independent lift enables precise placement of the load. The remote control provides the operator with the ability to precisely control the gantry from a safe and advantageous viewpoint.
Performance
- 6 steering modes: front wheel, rear wheel, 4-wheel, crab steer, carousel steer, and 4-way multi-directional
- Full sideshift from left to right
Ergonomics
- Rubber-mounted cabin
- Semi-open design
- 360° visibility
- Remote control
- Load-sensing steering
Safety Features
- Full sideshift
- 6 steering modes
- Telescopic lift
- Elastic puncture-proof tires
Ease of Service
- Accessible engine
- Accessible mechanicals
- Simple hydraulic system
Options
