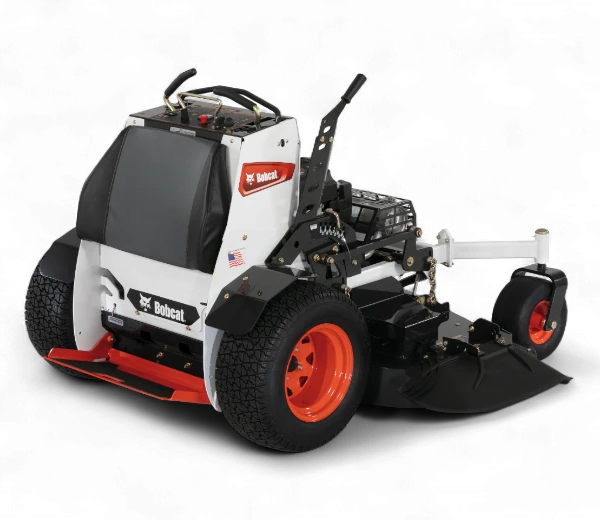

Bobcat ZS4000 Series Zero-Turn, Stand-On Mower
Stability. Agility. Profitability. With a compact size, extra ground clearance, and large drive tires, a ZS4000 Mower gets over and around obstacles and on to the next job.
The Bobcat ZS4000 is a series of commercial-grade, zero-turn, stand-on mowers designed for productivity, with key features including the AirFX cutting deck, powerful engines, and a low center of gravity for stability. These mowers offer maneuverability for tight spaces and are built for comfort during all-day use, thanks to a vibration-dampening platform and ergonomic controls.
Specs
| Model Number | Horsepower | Deck Size | Fuel Capacity | Engine | Max Slope Angle | Forward Travel Speed |
|---|---|---|---|---|---|---|
| ZS4000-36 | 19 hp | 36" | 6.5 gal | Kawasaki | 15° | 7 mph |
| ZS4000-48 | 19 hp | 48" | 6.5 gal | Kawasaki | 15° | 9 mph |
| ZS4000-52 | 19 hp | 52" | 6.5 gal | Kawasaki | 15° | 7 mph |
| ZS4000-61 | 19 hp | 61" | 6.5 gal | Kawasaki | 15° | 9 mph |
| Model Number | Horsepower |
|---|---|
| ZS4000-36 | 19 hp |
| ZS4000-48 | 19 hp |
| ZS4000-52 | 19 hp |
| ZS4000-61 | 19 hp |
| Model Number | Deck Size |
|---|---|
| ZS4000-36 | 36" |
| ZS4000-48 | 48" |
| ZS4000-52 | 52" |
| ZS4000-61 | 61" |
| Model Number | Fuel Capacity |
|---|---|
| ZS4000-36 | 6.5 gal |
| ZS4000-48 | 6.5 gal |
| ZS4000-52 | 6.5 gal |
| ZS4000-61 | 6.5 gal |
| Model Number | Engine |
|---|---|
| ZS4000-36 | Kawasaki |
| ZS4000-48 | Kawasaki |
| ZS4000-52 | Kawasaki |
| ZS4000-61 | Kawasaki |
| Model Number | Max Slope Angle |
|---|---|
| ZS4000-36 | 15° |
| ZS4000-48 | 15° |
| ZS4000-52 | 15° |
| ZS4000-61 | 15° |
| Model Number | Forward Travel Speed |
|---|---|
| ZS4000-36 | 7 mph |
| ZS4000-48 | 9 mph |
| ZS4000-52 | 7 mph |
| ZS4000-61 | 9 mph |
Overview
Get stand-up performance with the ZS4000 zero-turn stand-on mower. The ZS4000 is equipped with commercial-grade features including the bullnose AirFX cutting system, a low center of gravity and tool-free controls – all designed to let you maneuver through tough obstacles with total confidence. Equipped with a powerful Kawasaki FX series engine, this zero-turn mower also boasts a heavy-duty drive system for quick ground speeds.
- Featuring Air-Gap baffles and vacuum seals, the ZS4000’s AirFX cutting deck increases lift on every blade of grass for unmatched precision. A 36-inch DuraDeck cutting system is also available.
- Command unmatched control and response from ergonomic, tool-free controls with adjustable tracking that put a whole new level of zero-turn, stand-on mowing control right at your fingertips.
- When it comes to maneuvering around obstacles or tight spaces, the ZS4000 has an intuitive operator-station design that provides a superior “center of mass” stability that makes you feel like you’re one with the machine.
Performance
- Kawasaki electronic fuel injection engine
- Patented AirFX deck
- Forward speed up to 9 mph
- Reverse speed up to 3.5 mph
- Hydrostatic transaxles
Durability
- Heavy-duty, dual-tubed structural steel frame
- Commercial-grade engine
- Hydrostatic transmissions
- Dual-element air filtration system and an exhaust guard
Ease of Service
- Easy access to front and center oil filter
- Oil drain tube with valve
- Removable footplate
- Flip-up seat
- Removable operator pad
- Bolt-on baffles on the deck
