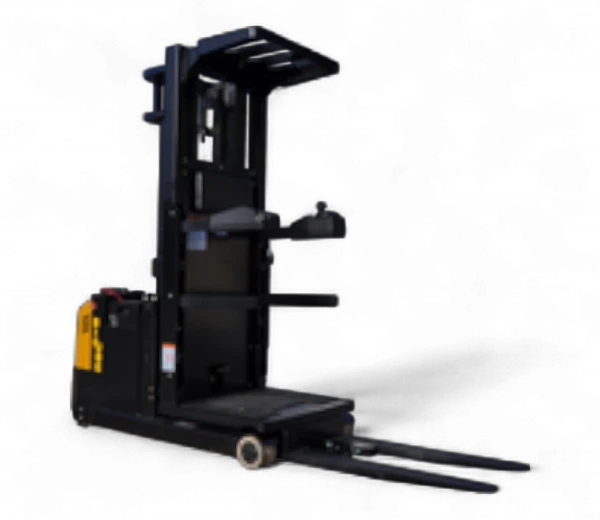

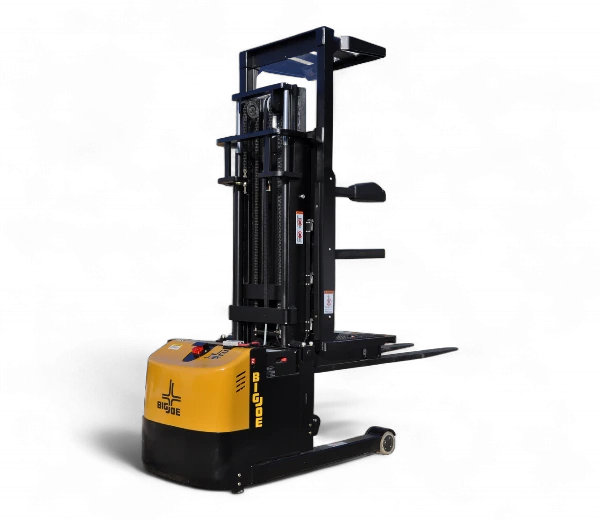

Big Joe J2 Joey Mid Level Order Picker Forklift
The J2 “JOEY” Mid-Level Order Picker combines compact design and exceptional maneuverability of our ePicker Task Support Vehicle with the attributes of a counterbalanced forklift. The result is a versatile machine that can be used for middle-of-order picking and staging pallets, available in two configurations.
Specs
| Model Number | Load Capacity | Max Fork Height | Operator Platform Height | Overall Length | Overall Width | Voltage |
|---|---|---|---|---|---|---|
| JX2-126 | 2,000 lbs | 126" | 132" | 108.3" | 34" | 24 V |
| JX2-144 | 1,500 lbs | 144" | 150" | 89.5" | 34" | 24 V |
| Model Number | Load Capacity |
|---|---|
| JX2-126 | 2,000 lbs |
| JX2-144 | 1,500 lbs |
| Model Number | Max Fork Height |
|---|---|
| JX2-126 | 126" |
| JX2-144 | 144" |
| Model Number | Operator Platform Height |
|---|---|
| JX2-126 | 132" |
| JX2-144 | 150" |
| Model Number | Overall Length |
|---|---|
| JX2-126 | 108.3" |
| JX2-144 | 89.5" |
| Model Number | Overall Width |
|---|---|
| JX2-126 | 34" |
| JX2-144 | 34" |
| Model Number | Voltage |
|---|---|
| JX2-126 | 24 V |
| JX2-144 | 24 V |
* Based on 24″ Load center
** Add load length and clearance
Product specifications may not reflect the most current product details. Authorized ePicker dealers retain the most current product specifications. All specifications should be verified by an authorized ePicker dealer prior to purchase.
Overview
Big Joe J2 Joey Mid Level Order Picker is a versatile, compact mid-level order picker designed for efficient order picking and pallet staging in warehouses, combining features of a task support vehicle and a counterbalance forklift. Features electronic power steering with variable speed, and a 180° articulating driveline for tight-aisle maneuverability.
Performance
- AC drive motor provides high torque throughout the entire drive range.
- Travel speed remains constant relative to throttle position regardless of the load on the truck.
- Regenerative braking is applied when the operator removes their hand from travel control or when plugging occurs.
- 42″ forks with pallet clamp.
- Non-marking tires.
Ergonomics
- Dual 24-volt ZAPI COMBI AC-0 travel and power steering controllers.
- LCD dashboard displays hour meter, battery state of charge, travel speed, drive wheel directional indicator, and fault codes.
- Ergonomic fingertip control for travel, lift, and lower functions provide the operator with logical intuitive drive characteristics while traveling at elevation or lowered.
- The operator compartment is designed for comfort and features an ergonomic floormat and features a forward and backrest cushion.
- Retractable compartment side rails allow for easy egress from either side of the vehicle.
- Low 9″ step height compartment.
Safety Features
- 4 selectable travel speed settings and a global turtle travel speed setting can be used to tailor equipment performance to the experience level of the operator and use.
- Heavy-duty I-beam design provides excellent stability at height. Steel mast channels and side-mounted lift cylinders increase total vehicle capacity and service life.
- Three-point chassis design along with 180° drive motor steering arc provides exceptional maneuverability.
- Powerhead-mounted stability casters add additional truck stability and operator confidence at working heights.
- An electromagnetic parking brake is applied after the truck is stopped.
- Anchor, operator harness & tether.
- Overhead guard.
- Rear flashing light.
Ease of Service
- The brushless design of the AC motors drastically reduces maintenance costs while extending duty cycle.
- Battery compartment rollers
Options
